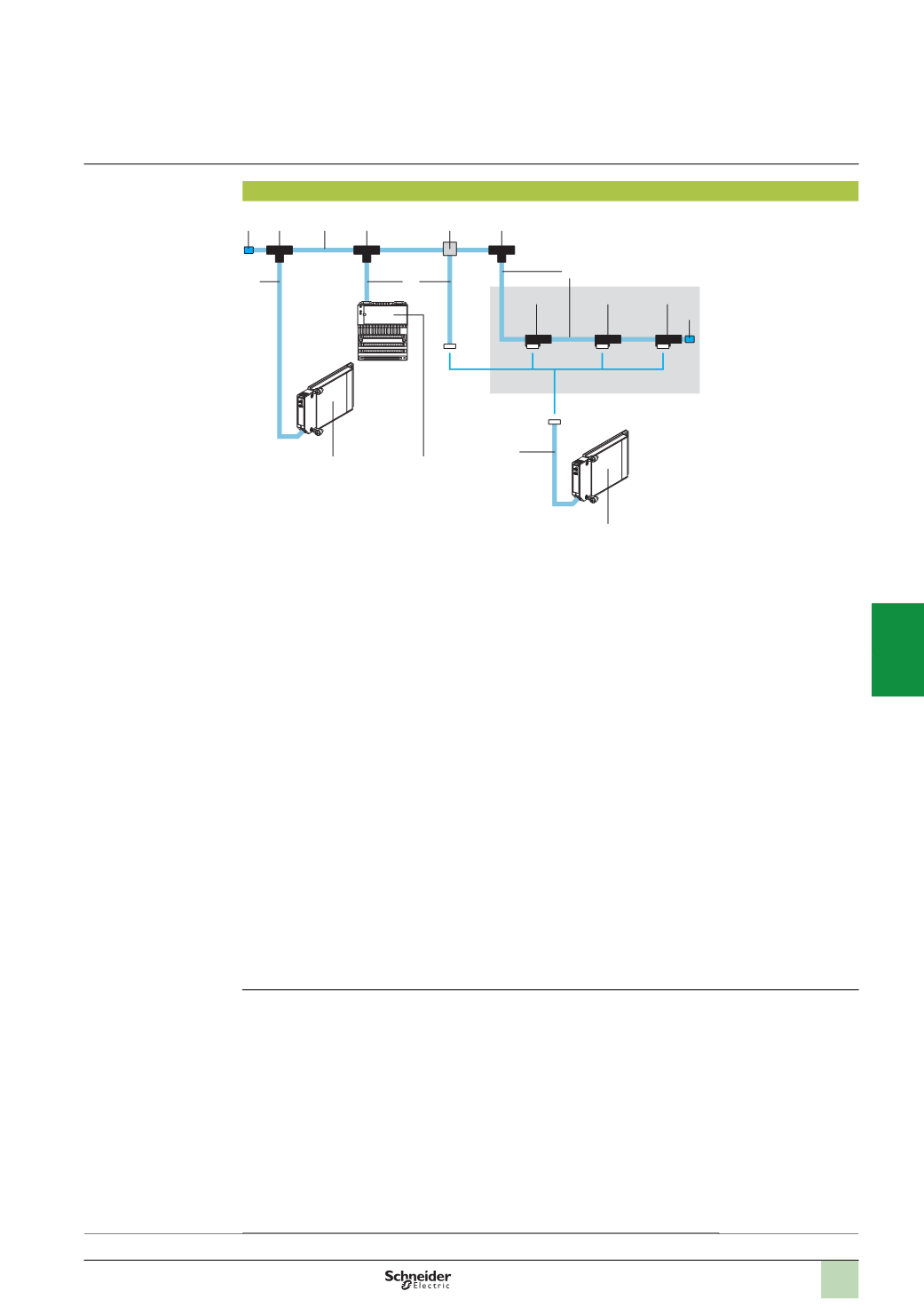

Wiring system
1
TSX MBP 100
:
Modbus Plus PCMCIA card, for type III slot on Modicon TSX Micro or Modicon Premium
platform processor.
2
170
PNT 110 20
:
communication module for Modicon Momentum I/O base unit.
3
490
NAA 271 0
p
:
trunk cable, shielded twisted pair with shielding drain wire (flying leads at ends). In 30, 150,
300, 450
or 1500 m lengths.
4
170
MCI 020
pp
:
drop cable with an RJ45 connector at each end (BASE-T interface). In 0.25, 0.75, 3 or 10 m
lengths.
5
990
NAD 230 00
:
IP 20 tee-shaped tap, for tap link from the trunk cable to connect 1 device (connection of
conductors requires the
043 509 383
wiring tool). Integrates the line terminator
6
Tap, for tap link from the trunk cable to connect 1 device (connection on screw terminals). It also has an R45
connector for connecting a programming and maintenance terminal:
- 990
NAD 230 20/21
:
IP 20 plastic tap
- 990
NAD 230 10:
IP 65 zamac tap
7
170
XTS 020 00
:
IP 20 tee, provides a tap link from the Modbus Plus cable (cable with RJ45 connectors at
each end). It has a 9-way male SUB-D connector for connecting the device.
8
TSX MBP CE 030/060
:
drop cable for Modbus Plus PCMCIA card, with a 20-way miniature connector on the
PCMCIA end and flying leads on the
990
NAD 230 00
/
010
tap end. In 3 or 6 m lengths.
9
990
NAD 211 10/30
:
drop cable with a 9-way male SUB-D connector on the device end and flying leads on the
990
NAD 230 00
/
010
tap end. In 2, 4 or 6 m lengths.
10
TSX MBP CE 002
:
drop cable for Modbus Plus PCMCIA card, with a 20-way miniature connector on the
PCMCIA end and a 9-way female SUB-D connector on the network end. Can be used as an extension for the
990
NAD 211 10/30 cable. In 0.2 m lengths.
11
AS MBKT 185
:
set of 2 line terminators (impedance matching) to be placed at each end of the segment.
AS MBKT 185
terminators are placed directly at the end of the cable (with no tap or tee).
990
NAD 230 11
:
set of 2 line terminators (impedance matching) for
990
NAD 230 10
IP 65 tap, to be placed at
each end of the segment.
12
170
XTS 021 00
:
set of 2 line terminators (impedance matching) for
170
XTS 020 00
tee, to be placed at each
end of the segment.
Note
:
For wiring system:
-
Modicon Quantum platform, please refer to our catalogue.
-
Lexium drive for brushless motors, please refer to the “Lexium motion control” catalogue.
-
Altivar drive for asynchronous motors, please refer to the “Variable speed drives” catalogue.
8
9
11 5
3
5
6
5
7
7
7
12
10
2
1
1
4
Presentation:
page 5/114
References:
pages 5/116 ...
Connections
Modicon Premium automation
platform
Modbus Plus network
