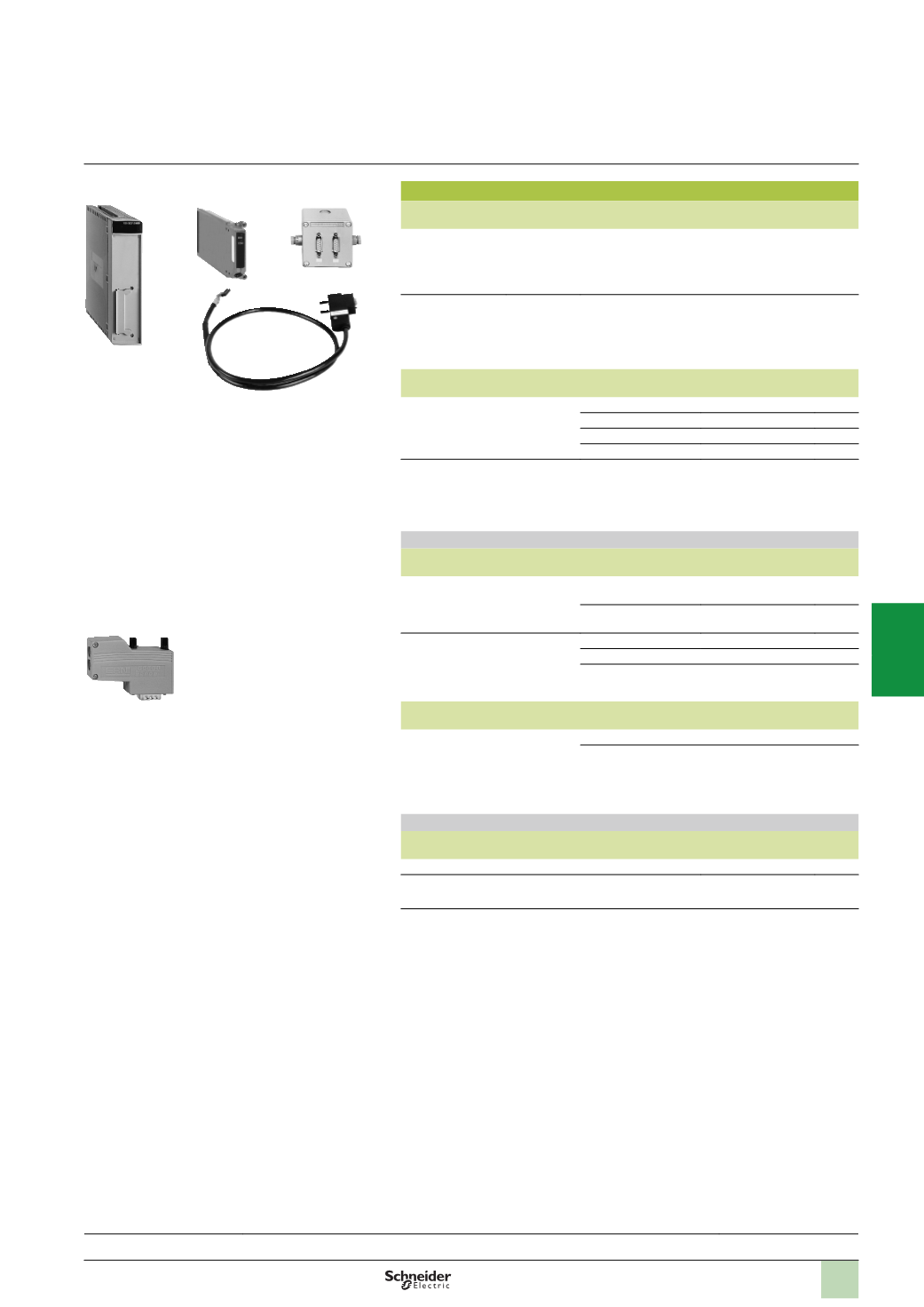

References
Description
Profile
Services
Reference
Weight
kg
Profibus DP V0
bus module for
Premium PLCs
(1)
Master
12
Mbps
Class 1 and Class 2 V0
master functions (see
characteristics) Profibus
FMS message handling
not supported
TSX PBY 100
0.870
SyCon
configuration
software
–
Generates a
configuration file to be
imported into the
application
See page 5/89
–
Description
Licence type
Reference
Weight
kg
SyCon V2.10 configuration
software licences
Single (1 station)
SYC SPU LFU CD29A
–
Group (3 stations)
SYC SPU LFG CD29A
–
Team (10 stations)
SYC SPU LFT CD29A
–
Site (> 10 stations)
SYC SPU LFF CD29A
–
SyCon V2.10 configuration
software update
Single (1 station)
SYC SPU LRU CD29A
–
Profibus DP bus connection components
Description
Use
Reference
Weight
kg
Distributed I/O
on Profibus DP bus
Modicon STB network
interface module
STB NDP 2112
0.140
Momentum
communication module
170
DTN 110 00
0.070
Connectors for distributed I/O
communication module
Line terminator
490
NAD 911 03
–
Intermediate connection
490
NAD 911 04
–
Intermediate connection
and terminal port
490
NAD 911 05
–
Description
Length
Reference
Weight
kg
Profibus DP connecting cables
100
m
TSX PBS CA 100
–
400
m
TSX PBS CA 400
–
Replacement parts
Description
Reference
Weight
kg
Main bus tap
490
NAE 911 00
–
PCMCIA card
467
NHP 811 00
–
(1)
For maximum number of fieldbuses (I
NTER
B
US
or Profibus DP) per processor, see pages 1/10
and 1/19.
References
+
+
+
TSX PBY 100
490
NAD 911 03
Modicon Premium automation
platform
0
Profibus DP V0 bus
Presentation:
page 5/118
