Presentation
OZD FIP G3
optic transceivers are particularly suitable for use in applications which are subject to harsh electrical
environments or which are spread over large areas:
b
Public buildings
b
Large-scale industrial sites
b
Water treatment and distribution
b
Transport and highway tunnel infrastructures, etc.
The
OZD FIP G3
optic transceiver enables conversion of a FIP electric interface into 2 FIP optic interfaces and
vice versa. As a result, it allows the use of redundant ring topologies, which improve installation availability even
when a line is broken at a point in the medium.
In these situations, the length of the bus or of the Fipio/Fipway ring can reach:
b
20
km with a maximum of 32 transceivers on Fipio
b
20
km with a maximum of 20 transceivers on Fipway
see characteristics page 5/109.
These characteristics can be increased by using mixed topologies, such as 2 serial optic rings or 2 serial optic
buses; please consult your Customer Care Centre.

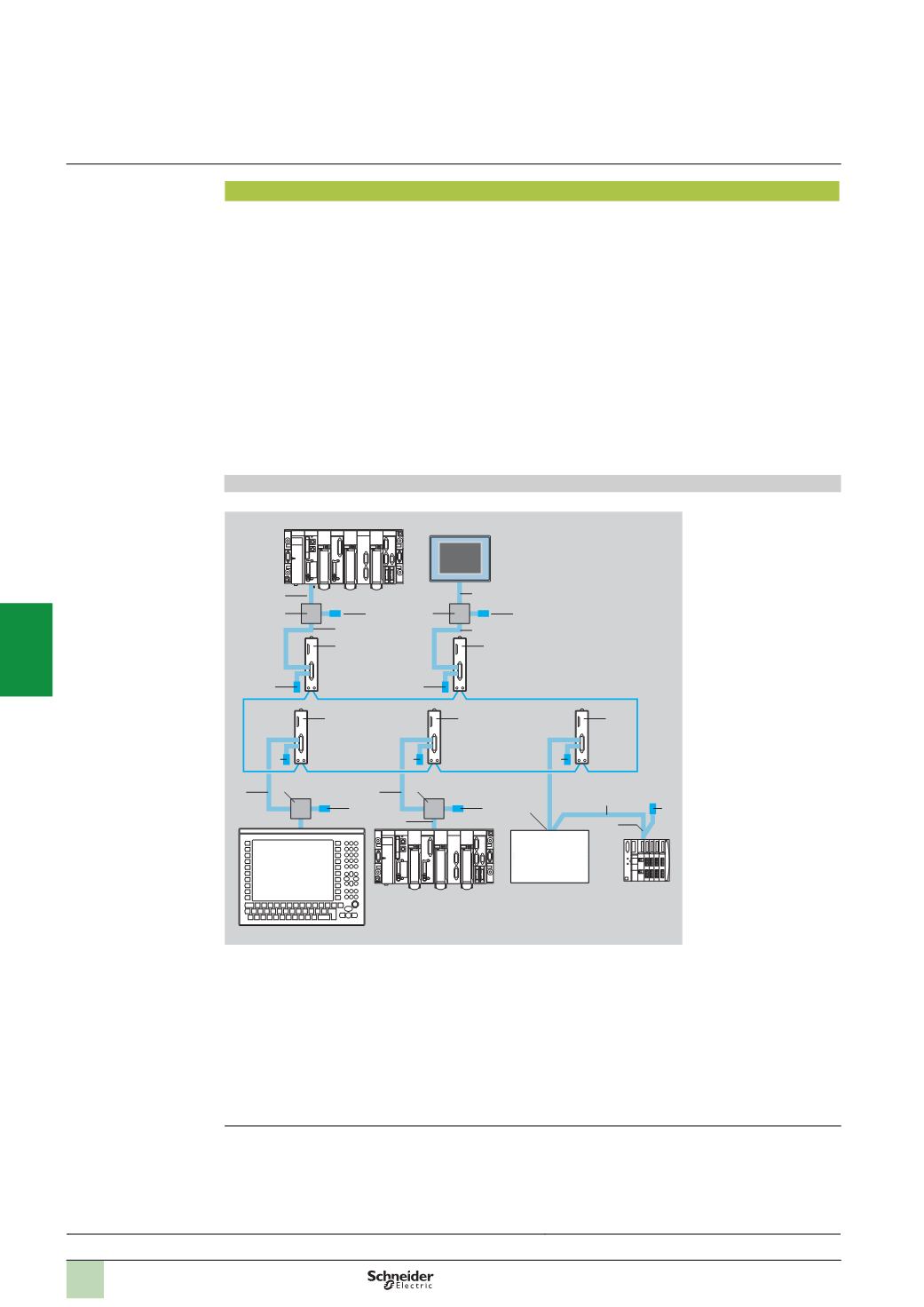

Wiring system
1
OZD FIF G3
:
Fipio/Fipway optic transceiver
2
TSX FP CA
p
00
: 150
shielded twisted pair trunk cable (Ø 8 mm) for use in standard environments and inside
buildings
(1)
.
3
TSX FP CG0
p
0
:
tap-off connection cable for
TSX FPP10
/
OZD200
PCMCIA card for TSX Micro/Premium PLCs.
4
TSX FPACC3/4
:
T-junction box. This box also has two 9-way female SUB-D connectors for connecting any
device which connects to the bus via a PCMCIA card.
5
TSX FPACC2/12
: 9-
way female SUB-D connector for Fipway/Fipio connection using daisy chaining or tap link
connection.
6
TSX FPACC7
:
line terminator to be placed at each segment end.
TSX LES 65
:
terminal block for TSX Series 7 PLC, which performs address coding.
(1)
Trunk cable
TSX FP CR
p
00
for use in harsh environments and outside buildings, see page 5/113.
Presentation
4
5
5
6
2
6
6
2
2
2
6
6
6
4
3
6
4
1
1
1
6
2
6
4
1
6
1
Modicon STB
Magelis XBT G
p
+ TSX CUSBFIP
3
Modicon Premium
Modicon Premium / TSX Micro
+ TSX FPP10 (Fipio)
+ TSX FPP OZD200 (Fipway)
Magelis
i
PC + TSX CUSBFIP
Optic ring
Third-party product
Modicon Premium automation
platform
m
Fipio/Fipway optic transceiver
References :
page 5/109
