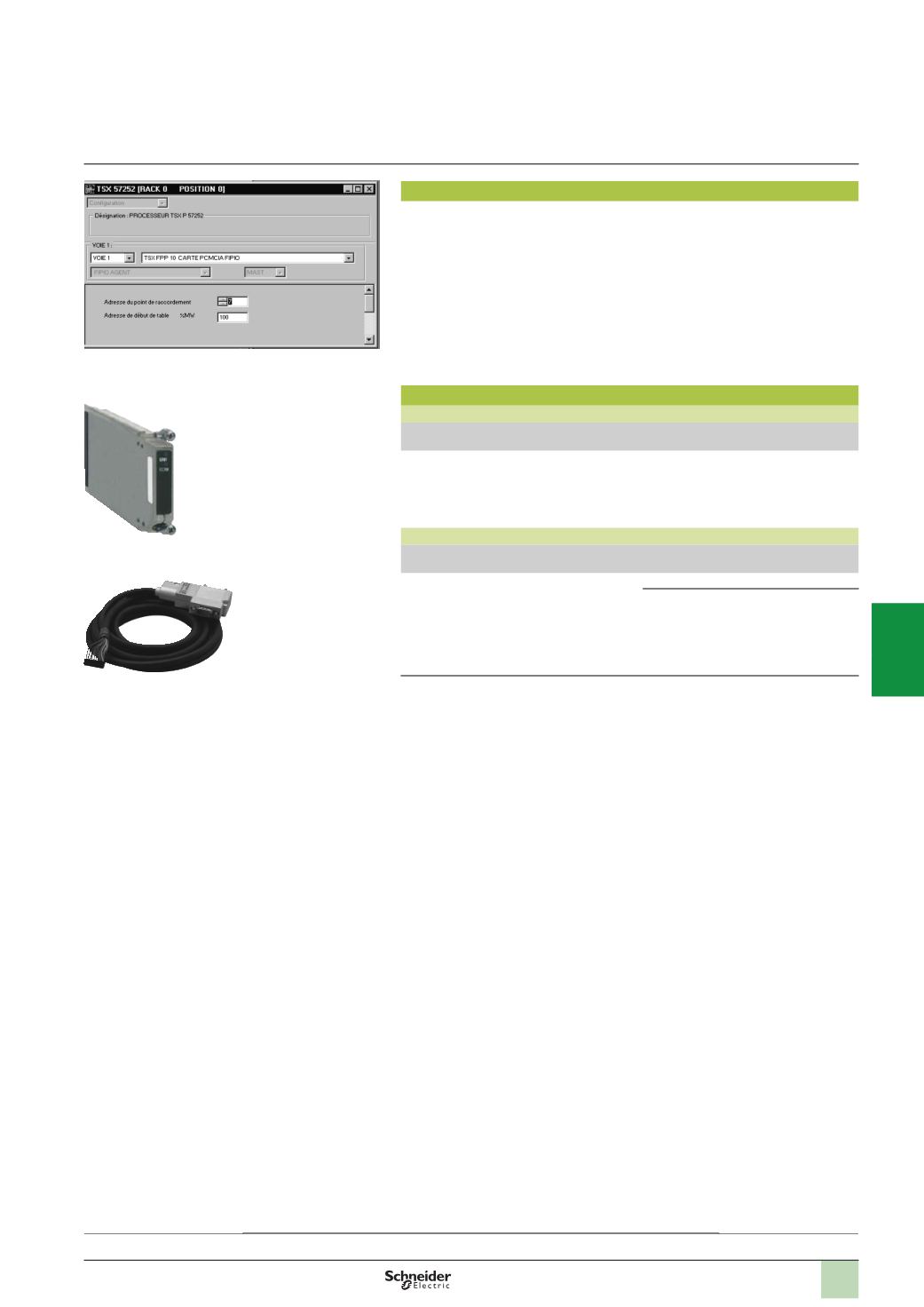

Software setup
Each TSX Micro/Premium PLC FipioAgent uses 64 %MWi consecutive internal words
to exchange periodic data. The first 32 words are reserved for sending data to the
manager, and the remaining 32 are reserved for receiving data from the manager.
Unity Pro or PL7 Micro/Junior/Pro application-specific screens allow the configuration
of the Fipio Agent PCMCIA card. This consists of indicating:
b
the connection point number (1 to 127)
b
the address at the beginning of the 64 %MW word table reserved for sending data
to and receiving data from the manager
References
Fipio bus connection component
Description Composition
Use
Reference
Weight
kg
Fipio Agent
function card
1
type III PCMCIA
version V1.8
On TSX Micro
and Premium
processors
TSX FPP10
0.110
Fipio bus connection cables
(1)
Description Use
from to
Length
Reference
Weight
kg
Cables for
PCMCIA card
TSX FPP 10
card
(
miniature
connector)
TSX FPACC3/4
cable connector
(9-
way SUB-D
connector)
1
m
TSX FP CG010
0.210
3
m
TSX FP CG030
0.310
(1)
For other Fipio bus accessories and connection cables, see pages 5/110 and 5/111
TSX FPP10
TSX FP CG010/030
Modicon Premium automation
platform
Fipio bus Agent function
Software setup,
references
Presentation:
page 5/104
Description:
page 5/104
