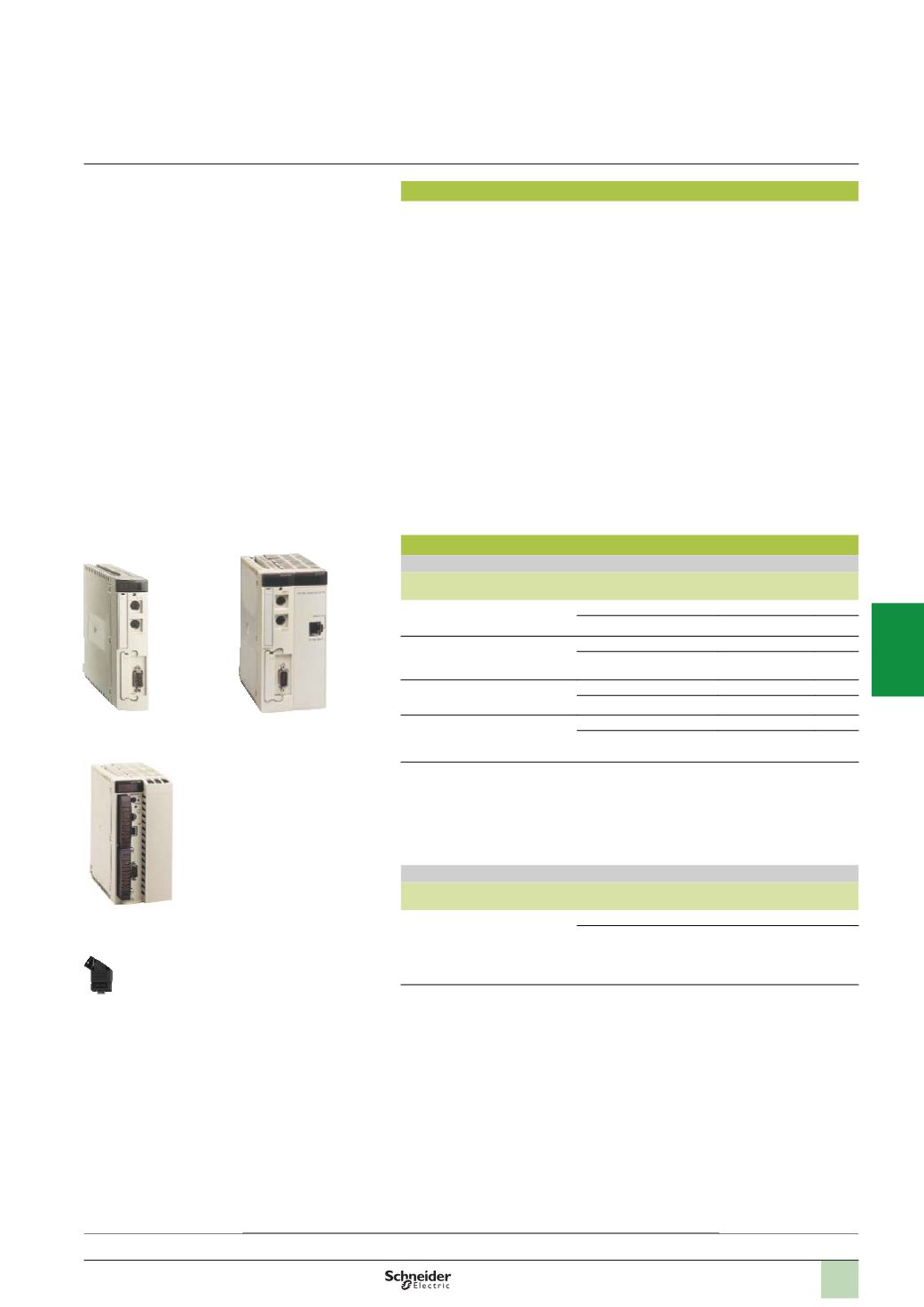

Application services
Depending on the bus manager, the application services supported by Premium
PLCs are:
b
Remote I/O
Remote l/O modules are addressed by the PL7 application program as in-rack l/O,
with which they can of course coexist. This service enables the exchange of l/O
status variables and output command variables. These exchanges are carried out in
a cyclical and deterministic manner and without intervention from the application
program.
The manager also manages remote devices (configuration) in an aperiodic manner,
without intervention from the application program.
b
Uni-TE service
X-Way industrial message handling service suitable for operator dialogue, diagnostics
and control functions (requests of 128 bytes maximum).
b
Application-to-application service
This service consists of sending tables between 2 devices under the control of their
respective application programs (requests of 128 bytes maximum).
b
Terminal transparency
Terminals connected on a higher level X-Way network or on the manager PLC
terminal port communicate with the devices on the bus. This is also the case when
the terminal is connected at the priority address 63.
References
Processors with integrated Fipio link
Type and max. no. of racks
Software compatibility Reference
Weight
kg
TSX P57 15
p
M
4
racks
Unity Pro
See page 1/10
–
PL7 Junior/Pro
See page 1/19
–
TSX P57 25
p
M
TSX P57 2823M
16
racks
Unity Pro
See page 1/10
–
PL7 Junior/Pro
See page 1/19
–
TSX P57 35
p
M
16
racks
Unity Pro
See page 1/10
–
PL7 Junior/Pro
See page 1/19
–
TSX P57 45
p
M
TSX P57 4823M
16
racks
Unity Pro
See page 1/10
–
PL7 Junior/Pro
See page 1/19
–
TSX P57 554M
16
racks
Unity Pro
See page 1/10
–
Accessories and connecting cables
(1)
Description
Use
Material
Reference
Weight
kg
Female
connectors
9-
way SUB-D
Processors
with integrated
Fipio link
Black polycarbonate (IP20)
TSX FPACC12
0.040
Zamac
TSX FPACC2
0.080
(1)
For other accessories and Fipio bus connecting cables, see pages 5/110 to 5/113.
Application services,
references
TSX FPACC12
TSX P57 2823/4823AM
TSX P57 153M
Presentation:
page 5/100
Description:
page 5/101
Maximum configuration:
page 5/102
Modicon Premium automation
platform
Fipio bus manager function
TSX P57 454M/554M
