Presentation
Modicon TSX Micro (TSX 37 21/22) or Modicon Premium PLCs, fitted with a PCMCIA
TSX FPP 10
card on their integrated communication channel, are agents on the
Fipio bus. (With Fipio bus manager, see page 5/103).
The Fipio bus enables I/O to be remotely located close to the devices to be controlled
(
TeSys U, Modicon STB, Momentum, Lexium, Altivar, etc). TheAgent function enables
offline processing, by locating a Modicon TSX Micro/Premium PLC close to the
machine.
In addition to the standard Fipio services (see pages 5/98 and 5/99), Modicon TSX
Micro (TSX 37 21/22) and Modicon Premium PLCs allow exchanges of input and
output variables with the bus manager PLC. These exchanges are performed
cyclically, automatically and without the involvement of the application program at
the same rate as the task for which the agent PLC has been configured.
For
Fipio bus wiring system
and connection accessories, see pages 5/110 to
5/113.
Application services
The application services supported by Modicon TSX Micro (TSX 37 21/22) and
Modicon PremiumAgent function PLCs are:
b
Uni-TE service, X-Way industrial message handling service suitable for operator
dialogue, diagnostics and control functions (requests of up to 128 bytes).
b
Application-to-application communication service, which consists of the
transmission of tables between 2 devices controlled by their respective application
programs (messages of up to 128 bytes).
b
Periodic data exchange service for exchanging a 64 word table between the bus
manager PLC and the TSX Micro or PremiumAgent PLC. For software setup, see
page 5/105.
Description
Modicon TSX Micro (TSX 37 21/22)/Premium PLCs have a slot in the processor for a
type III PCMCIA communication card. This can be fitted with a
TSX FPP 10
Fipio bus
connection card. The card comprises:
1
A sealable protective cover
2
A removable cover with fixing screws giving access to the 20 way miniature
connector
3
Two indicator lamps:
-
ERR lamp: card fault, link fault
-
COM lamp: transmission or reception of data
Connector to be ordered separately:
4
TSX FP CG010
/
030
, 1
or 3m cable for connecting the
TSX FPACC 3
/
4
tap junction
(
on 9-way SUB-D connector)

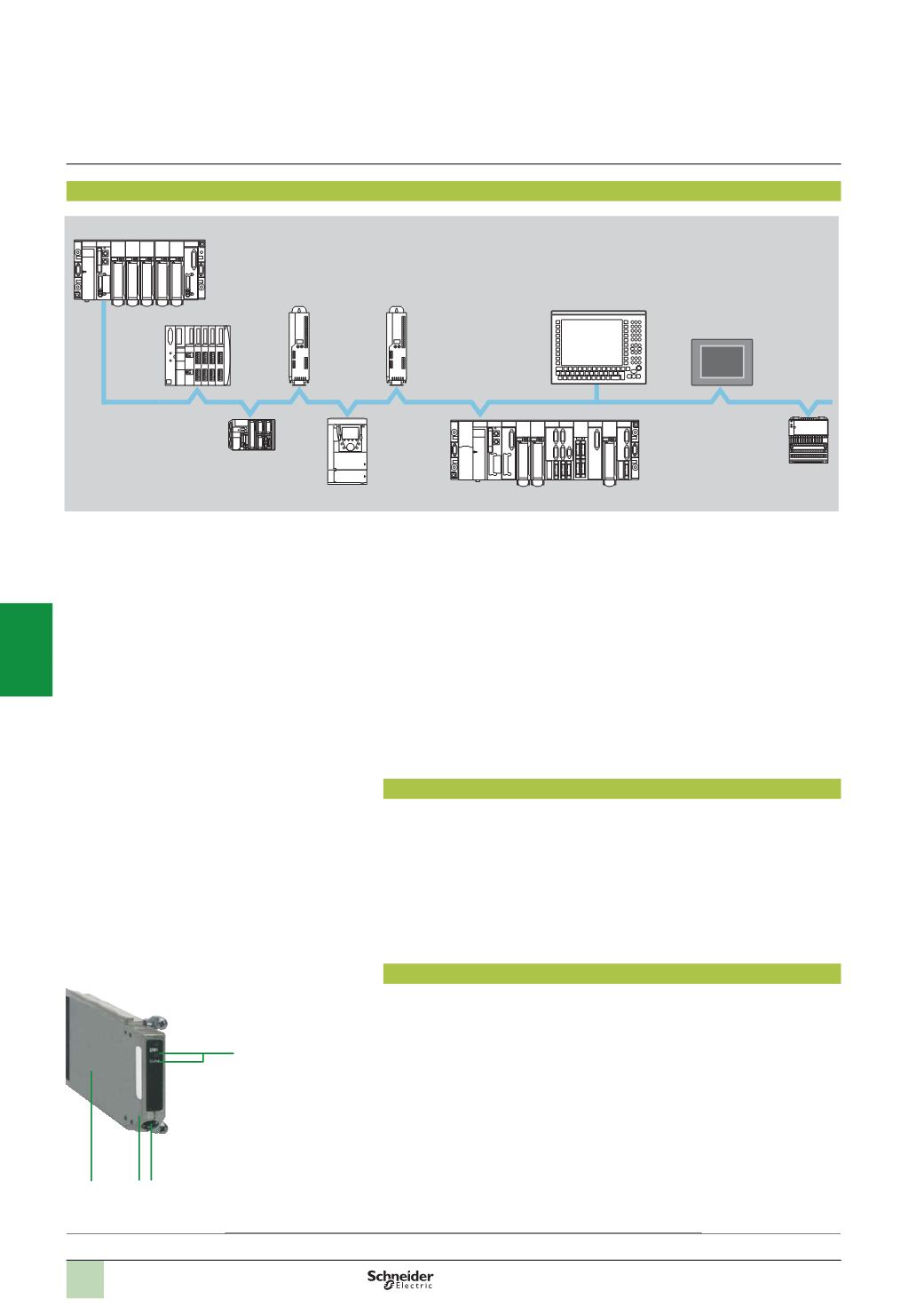

Modicon Premium
Modicon STB
Lexium 15
Modicon
TSX Micro (Agent)
Altivar 71/61
Modicon Premium (Agent)
Magelis
i
PC
Momentum
Magelis XBT G
p
Lexium 15
2
3
1
4
Presentation,
functions,
description
Software setup:
page 5/105
References:
page 5/105
(
Bus manager)
Fipio bus
Modicon Premium automation
platform
Fipio bus Agent function
