Altivar 312 Altivar 71
Lexium 32
TeSys U
Modicon
OTB
Modicon STB
Modicon M340 with BMX P34
20102/20302
processor
PC or monitoring
tool
ILA/ILE/ILS
Preventa
safety
controller
Magelis
XBT G
p
TeSys T

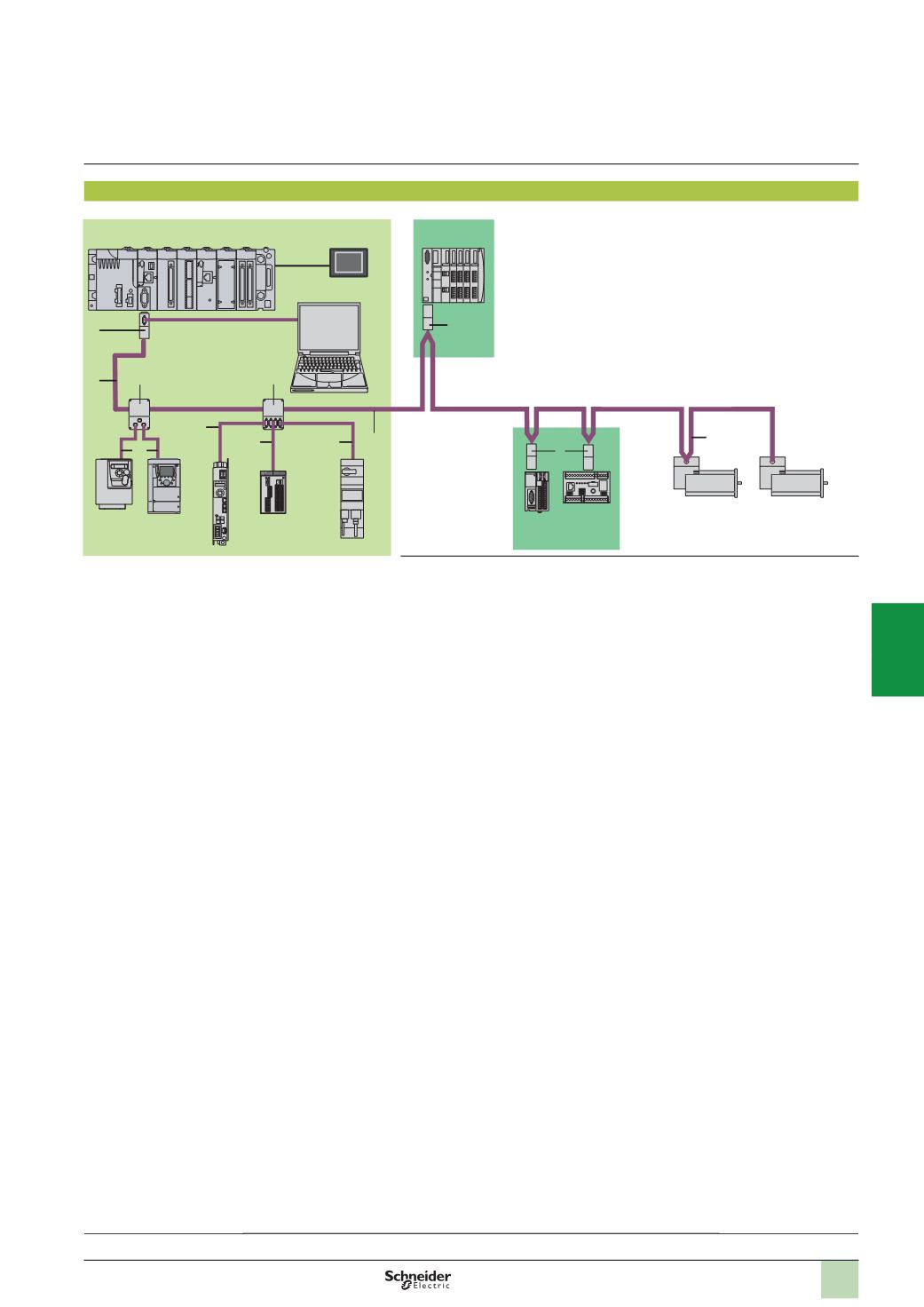

CANopen bus wiring system
Wiring system
Note:
For numbers and references
1
,
2
, …,
11
,
see pages 5/90 and 5/91.
Various types of cable are available, making it possible to create any type of
application, including for harsh environments (for the definition of standard and
harsh environments, see page 5/90).
Several connectors are available to meet any requirement: straight or 90° elbowed
connectors, or elbowed connectors with the option of connecting a PC or diagnostic
pocket PC.
Power can be supplied to devices by means of cables, cordsets and tap junctions:
one AWG24 pair for the CAN signals (CAN_L and CAN_H) and one AWG22 pair for
the power supply and the earth (CAN_V+ and CAN_SHLD).
In addition to the IP 20 wiring offer, there is also an IP 67 wiring offer.
Modicon Premium automation
platform
0
CANopen machine and installation bus
Presentation:
page 5/86
Description:
page 5/87
Wiring system:
page 5/89
References:
pages 5/90 ...
ILA/ILE/ILS
2
1
3
4
5
6
7
8
9
10
