Master module for AS-Interface cabling system
Diagnostics
Diagnostics carried out using the centralized display block on the Modicon TSX Micro
platform or the display block on the
TSX SAY 1000
Modicon Premium platformmodule
can be supplemented by using a PC with the Unity Pro or PL7 Micro/Junior/Pro
software.
The terminal connected to the Modicon TSXMicro/PremiumPLC is used for diagnosing
the operation of the following:
b
TSX SAZ 10 and TSX SAY 1000 AS-Interface master modules
b
The AS-Interface line
b
Slave devices on the line
For the
TSX SAY 1000
V2 AS-Interface master module, the diagnostics also takes
the changes to the M2E standard into account.
This diagnostics is carried out from a single screen divided into four parts providing
information on:
1
The status of the
TSX SAZ 10
or
TSX SAY 1000
module (RUN, ERR, I/O)
2
The status of the AS-Interface channel connected to the module
3
The faulty interface (or slave)
4
Details relating to the selected interface (profile, parameters, forcing, etc.)
If there is a fault on the AS-Interface module or channel, a second screen can be
accessed which clearly indicates the nature of the fault, which may be internal or
external.
3
4
1
2

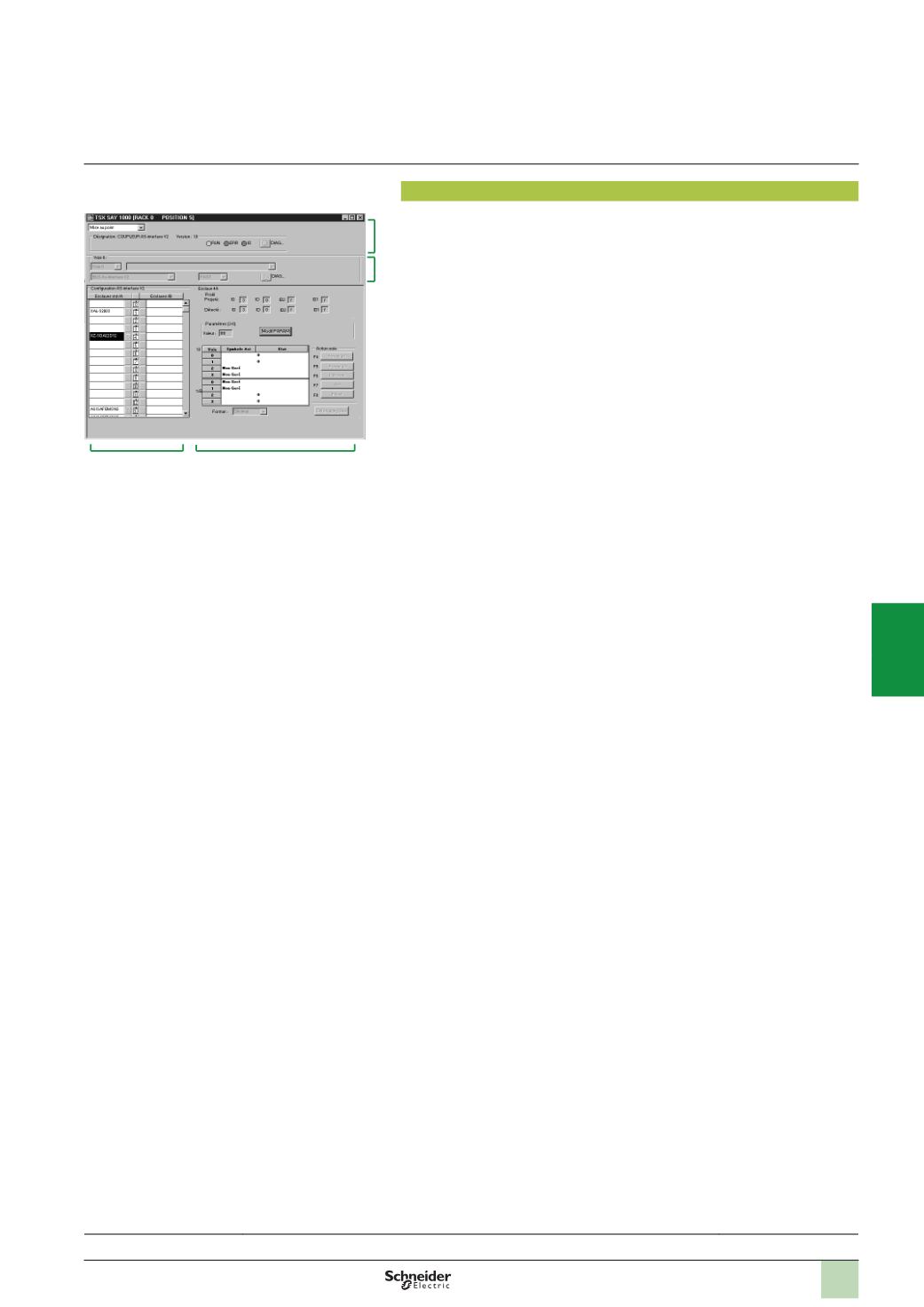

TSX SAY 1000 module diagnostics using PL7 software
