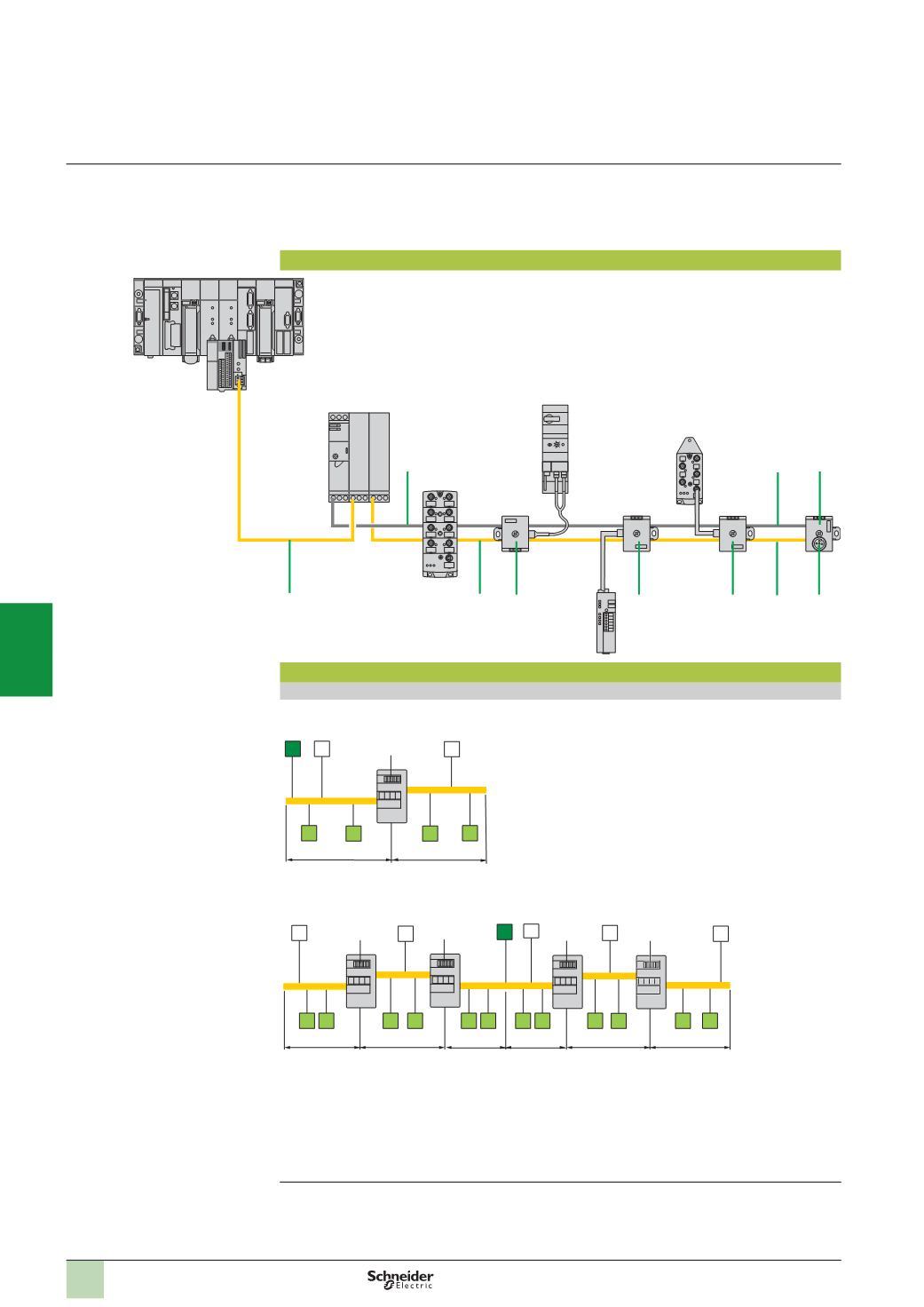

AS-Interface flat cables are available in two versions, yellow and black, according to the type of
application: standard and TPE (resistant to splashing oil and to environments with petrol vapours).
Various junction boxes are available to meet all connection requirements. They all have IP 67 protection.
AS-Interface infrastructure
Setup
AS-Interface cable lengths
100
m. This can be extended to:
b
200
m
using a repeater or a line extension:
b
300
m
with 2 repeaters
b
500
m
by placing the master in the centre of the network:
Note:
300
m corresponds to the maximum distance between the master and the furthermost slave.
For all other information onAS-Interface setup, please consult our website
www.schneider-electric.com.
(1)
ASI 67FMP22E
Modicon IP67 AS-Interface V2.1 I/O module, with M12 remote connection, 2 inputs/2 outputs.
(2)
ASI 67FFP44D
Modicon IP67 AS-Interface V2.1 I/O module, with direct connection (IDC), 4 inputs/4 outputs. For
further information on the Modicon IP67 AS-Interface distributed I/O modules, please consult the catalogue pages
on our website
www.schneider-electric.com.
S
S
S S
A
A
M
100
m
100
m
4
S
A
S S
S S
A
A
A
S S
S S
S S
S
100
m
100
m
50
m 50 m
100
m
100
m
M
4
A
4
4
4
M
= Master module
A
= Power supply
S
= Interface or component
Cabling system
Modicon Premium automation
platform
4
AS-Interface cabling system
1
1
1
2
2
7
3
5
6
6
Modicon Premium
+ TSX SAY 1000
Twido
+ TWD NOI 10M3
Phaseo
ASI ABL M3024
TeSys U
ASI LUF C5E
Modicon IP67 I/O
ASI 67FFP44D
(2)
+ ASI 67FFB03
(
connection base)
Modicon IP20 I/O
ASI 20MT41E
Modicon IP67 I/O
ASI 67FMP22E
(1)
2
1
3
4
5
6
7
8
9
10
