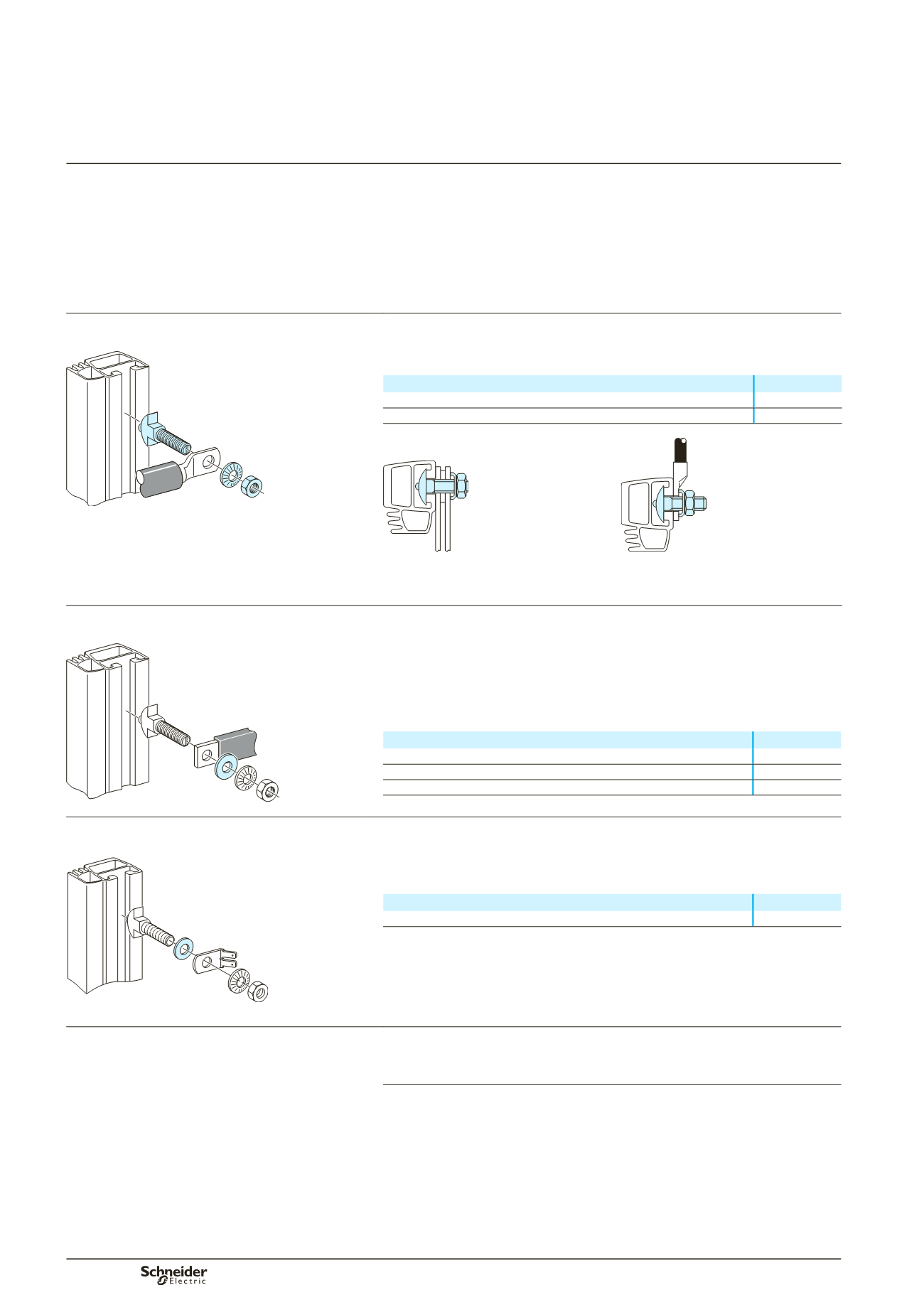

Distribution
Presentation
For secure connections, without drilling:
Linergy bolts clip into the channel of the busbar
they can slide along the entire length of the busbar
they cannot fall to the bottom of the switchboard because they are held in place by
the ball in the head, thus facilitating connections
a mark at the end of the bolt indicates whether the bolt is correctly positioned
8.8 class hardware guarantees withstand to tightening torques and to premature
ageing of the electrical contact.
b
b
b
b
b
Linergy hardware
Composition of sets:
set of hardware including 20 bolts + 20 nuts + 20 contact washers.
Cat. no. selection
b
DD381218
Designation
Cat. no.
Set of 20 M8 Linergy bolts, L = 25 mm (for cable lugs and flexible bars)
04766
Set of 20 M8 Linergy bolts, L = 39 mm (for copper bars)
04767
DD381220
DD381221
Copper bar connected to Linergy busbar using
bolt (04767).
Cable lug connected to
Linergy busbar using bolt
(04766).
Flat washers
Presentation
These washers, sold separately, are required for connection of flexible bars to
Linergy busbars.
They spread the tightening forces and avoid creep of the copper.
Composition of sets:
set of 20 flat washers for M8 bolts.
Cat. no. selection
b
DD381219
Designation
Cat. no.
Set of 20 M8 flat washers, 20 mm external diameter
04772
Set of 20 M8 flat washers, 24 mm external diameter
04773
Set of 20 M8 flat washers, 28 mm external diameter
04774
Conducting washers
Flat washers
For M8 bold and lugs
y
25 mm², 20 mm external diameter.
Composition of sets:
set of 20 flat washers.
b
DD383122
Designation
Cat. no.
20 flat washers for lugs
y
25 mm²
04775
Connection cross-section
Determining connections using cables
see page D-46.
Determining connections using flexible bars
see page D-44.
Linergy accessories
Mounting hardware
Main distribution
