B-19
Distribution
Lateral flat busbars
up to 1600 A
Busbars 5 mm thick
Horizontal-busbar connections
Direct connection (75 mm between centres)
For busbars with 75 mm between centres, the bars must fully overlap.
DD383844
DD383398
DD383399

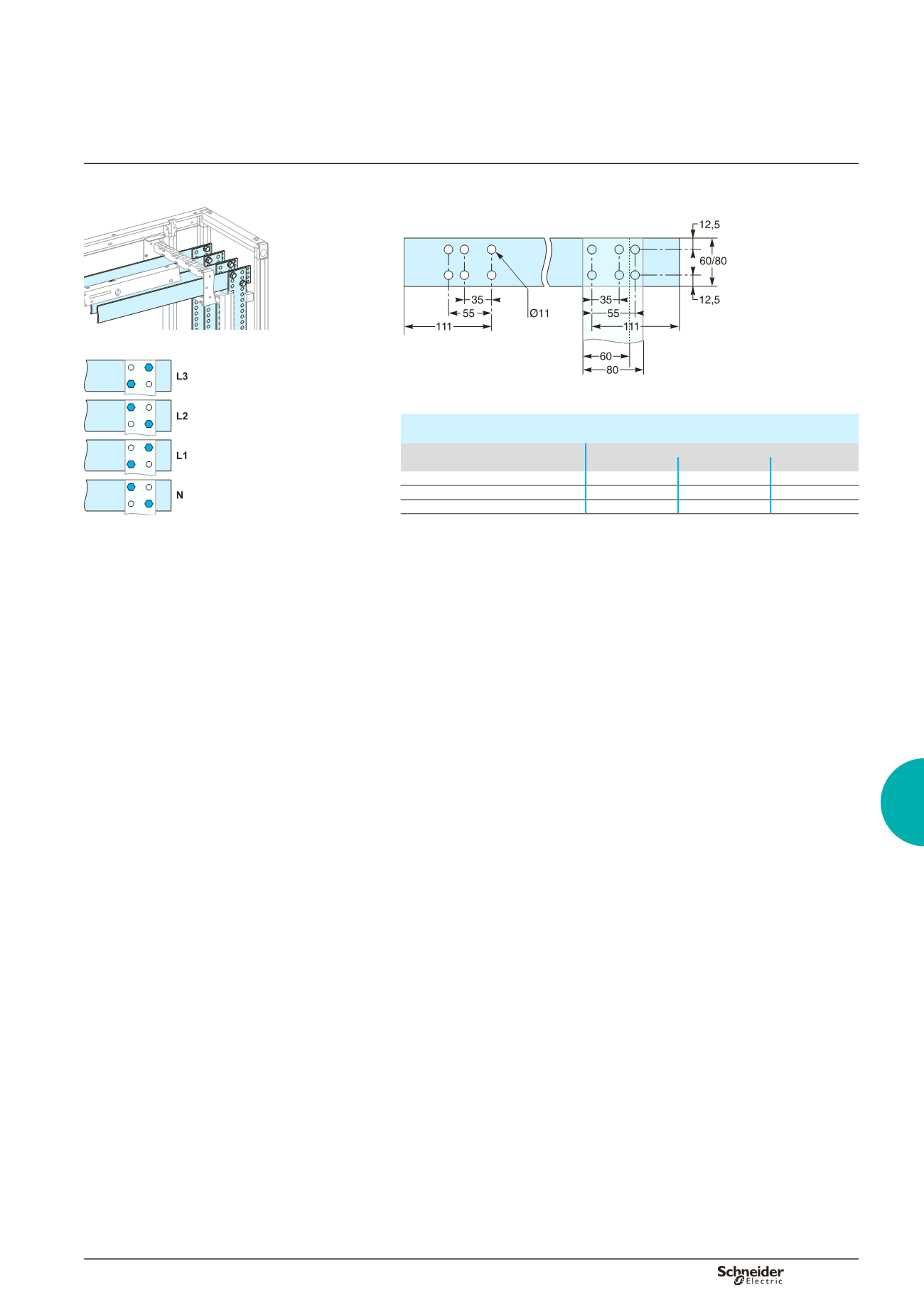

Drilling diagram for horizontal busbars, 5 mm thick.
Number of assembly screws (04645)
(20 screws for vertical/horizontal busbars
connection)
Vertical bars (mm)
Horizontal bars (mm)
50
60
80
50
2
2
2
60
-
2
2
80
-
-
3
To satisfy safety clearances, the assembly points on adjacent
bars must be staggered as shown above.
Main distribution
