149 / 356
B-11
Distribution
DD381509

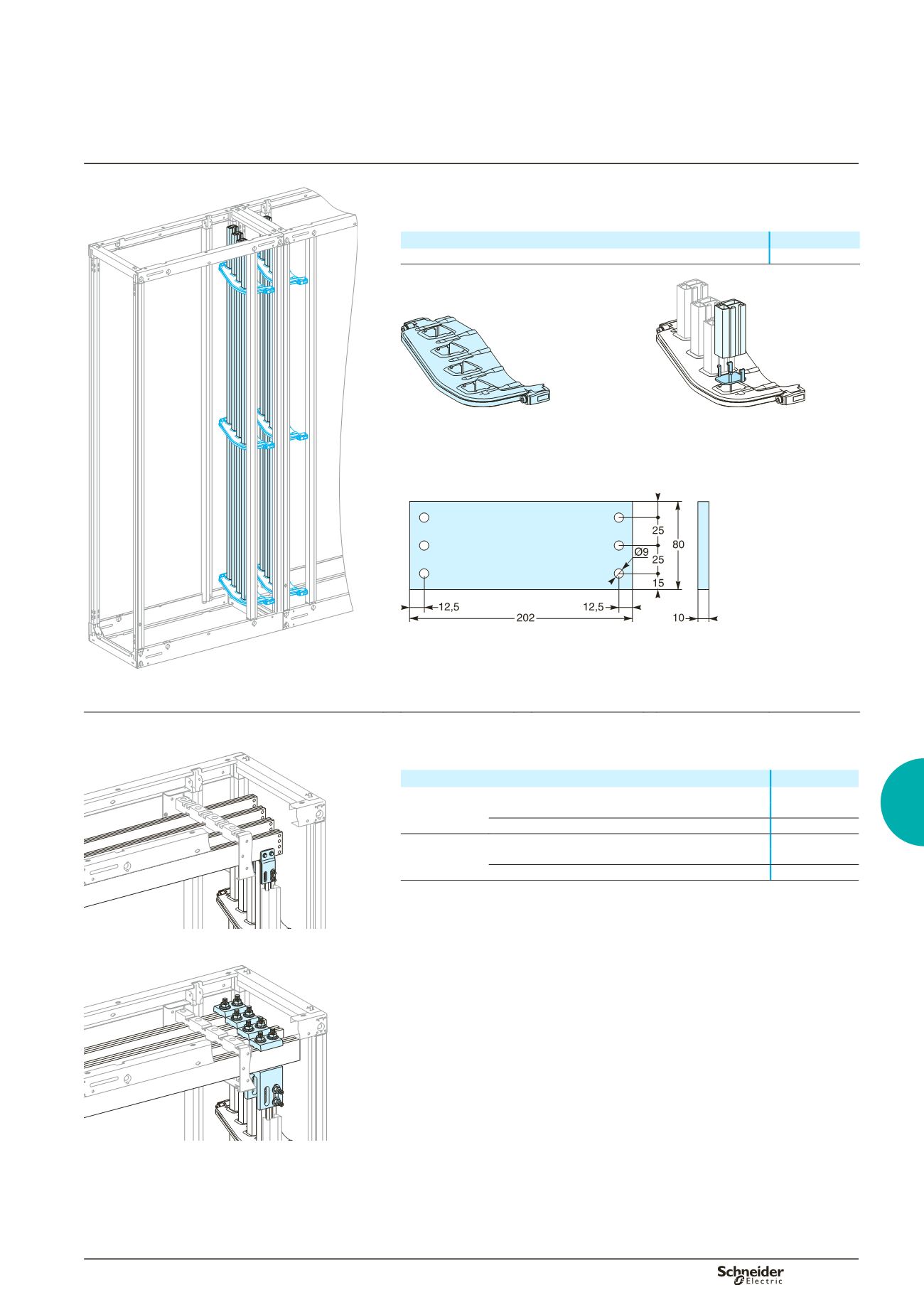

Busbar supports
Supports are used to install busbars to the left or right of the device zone.
They are supplied with 8.8 class mounting hardware.
Designation
Cat. no.
Busbar supports
04651
DD380741
DD380742
Busbar supports.
Each bar is supplied with a stop for
installation on the bottom support.
Equipotential connection
DD382576
Note:
equipotential connection must be made.
Double busbars up to 3200 A.
Install three equipotential links between the busbars.
Horizontal-busbar connections
These connections are used to connect horizontal busbars, 5 or 10 mm thick, to
lateral Linergy busbars.
Supplied with mounting hardware.
DD381239
Designation
Cat. no.
Connection to horizontal busbars, 5 mm thick
1000 A connection
04634
(1)
1600 A connection
04635
(1)
Connection to horizontal busbars, 10 mm thick
width of horizontal bars
y
80 mm
04636
(1)
width or horizontal bars > 80 mm
04636
(1)
+ 04642
(1)
Catalogue numbers 04634, 04635 and 04636 include 1 connection only. Order 1 connection
per phase.
Connection 04635 to horizontal busbars, 5 mm thick.
DD381240
Connection 04636 to horizontal busbars, 10 mm thick.
Lateral Linergy busbars
up to 3200 A
Main distribution
