Distribution
Linergy busbars
up to 1600 A
DD382326
Type of busbar
Very rigid profile to improve withstand to
electrodynamic forces.
Connection points accessible from the front and
adjustable from top to bottom.
Compat ble with all Prisma Plus prefabricated
connections.
Installation
Can be installed independently on either the left or
right-hand side of an 800 mm wide framework (650 +
150 mm) for distr bution on either side.
For an Icw
y
40 kA rms / 1 s, two supports in the
“device” zone are sufficient to maintain the bars. A third
support is required as the bottom support for the bars.

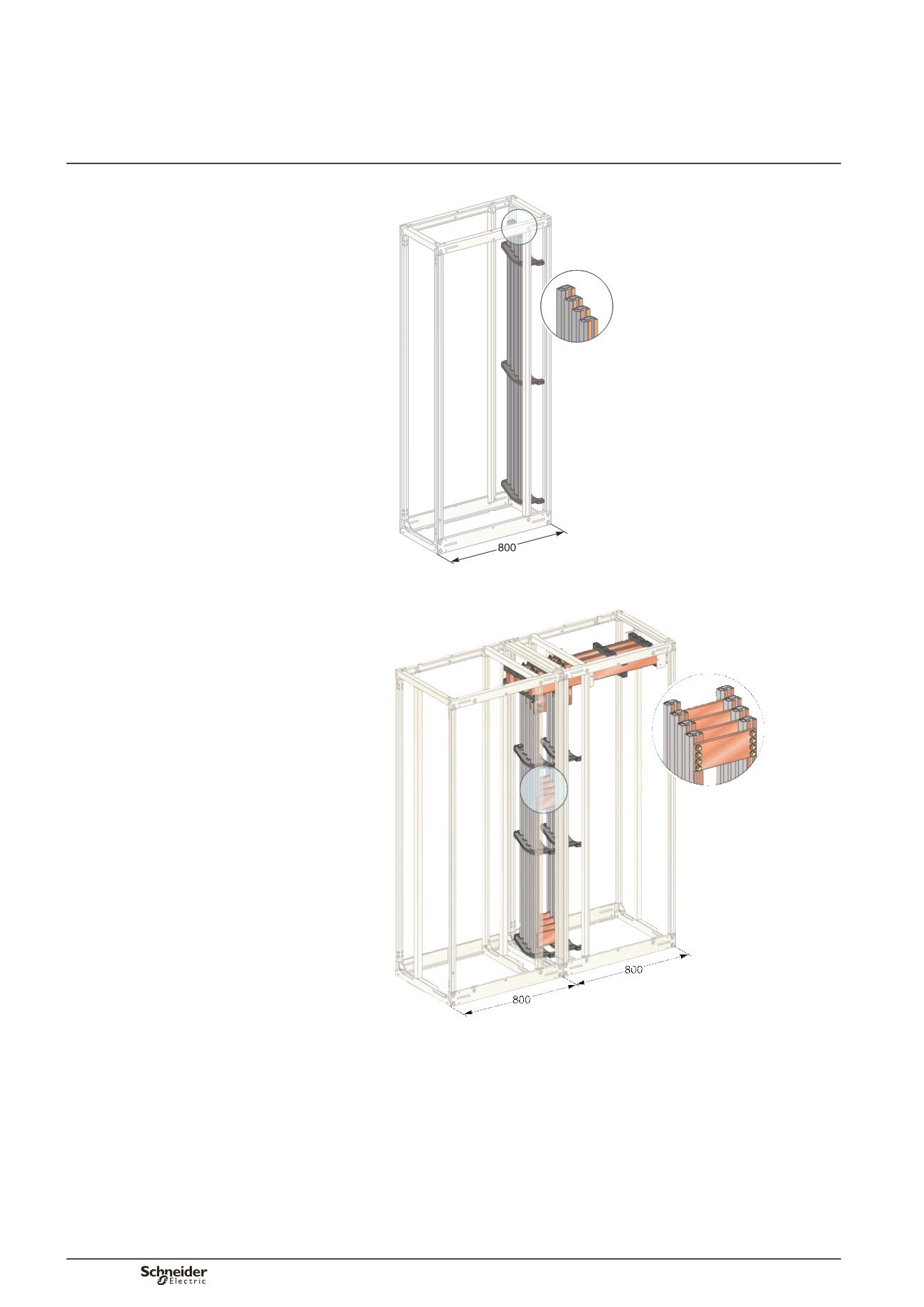

Linergy busbars up to 1600 A.
Linergy busbars
up to 3200 A
DD382327
Type of busbar
Very rigid profile to improve withstand to
electrodynamic forces.
Connection points accessible from the front and
adjustable from top to bottom.
Compat ble with all Prisma Plus prefabricated
connections.
Installation
Two sets of busbars are installed in parallel in two
adjacent frameworks, each 800 mm wide
(650 + 150 mm). They must be interconnected by three
equipotential links. Generally speaking, these links are
provided by:
the horizontal busbars
connections in the middle and at the bottom of the
vertical busbars.
For an Icw
y
40 kA rms / 1 s, two supports in the
“device” zone are sufficient to maintain the bars. A third
support is required as the bottom support for the bars.
b
b
Linergy busbars up to 3200 A.
Presentation of Linergy busbars
Main distribution
