Distribution

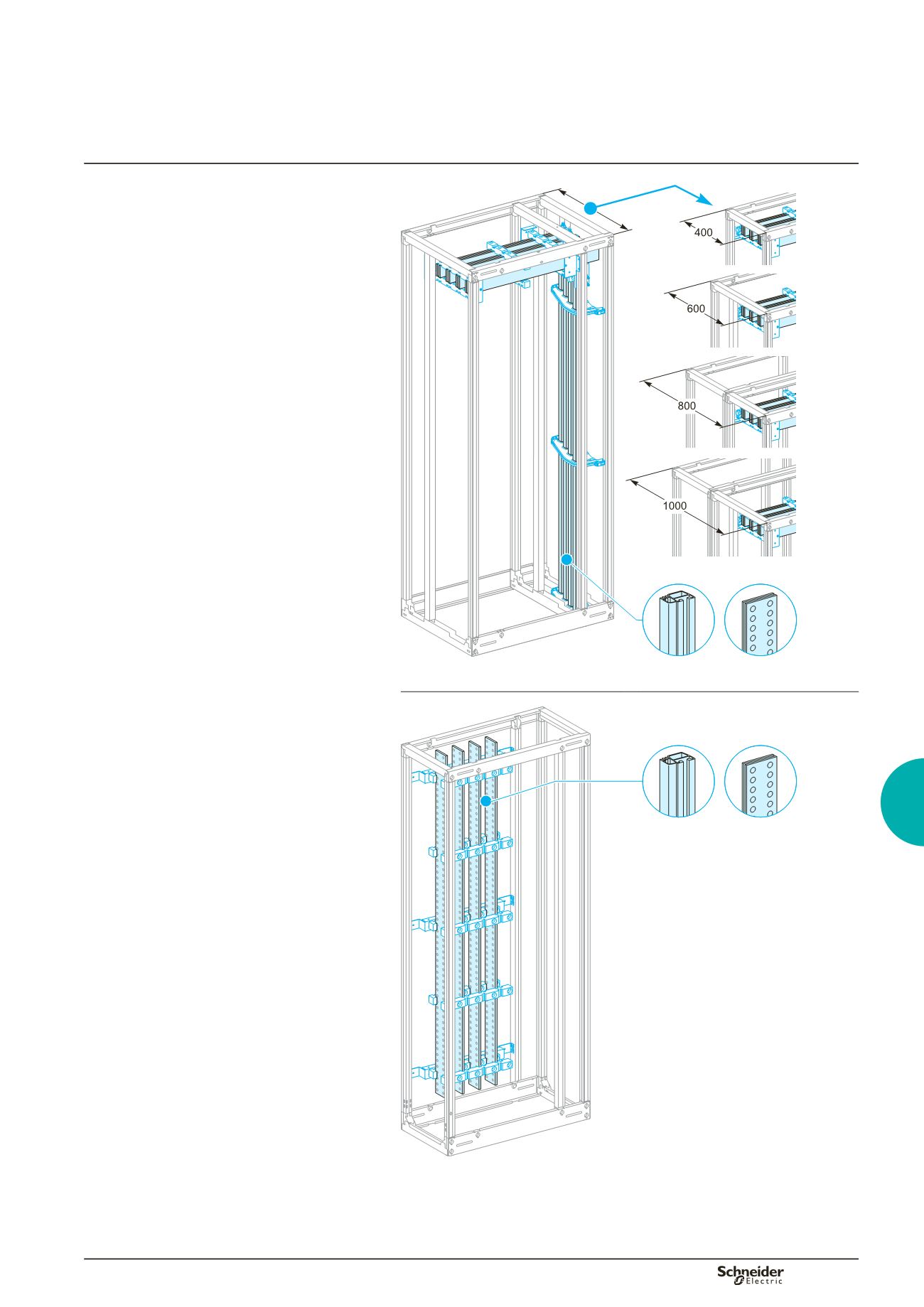

Horizontal and lateral busbars up to 3200 A require the
same amount of space.
horizontal busbars
flat copper bars without holes, L = 2000 mm,
5 mm thick
flat copper bars without holes, L = 2000 mm,
10 mm thick
flat aluminium bars without holes, L = 2000 mm,
10 mm thick
lateral busbars
flat copper bars with holes, L = 1675 mm,
5 mm thick
flat copper bars with holes, L = 1675 mm,
10 mm thick
Linergy channelled aluminium busbars,
L = 1675 mm.
b
v
v
v
b
v
v
v
DD381614
Rear busbars up to 1600 A.
flat copper bars with holes, L = 1675 mm,
5 mm thick
flat copper bars with holes, L = 1675 mm,
10 mm thick
Linergy channelled aluminium busbars,
L = 1675 mm.
b
b
b
DD381615
