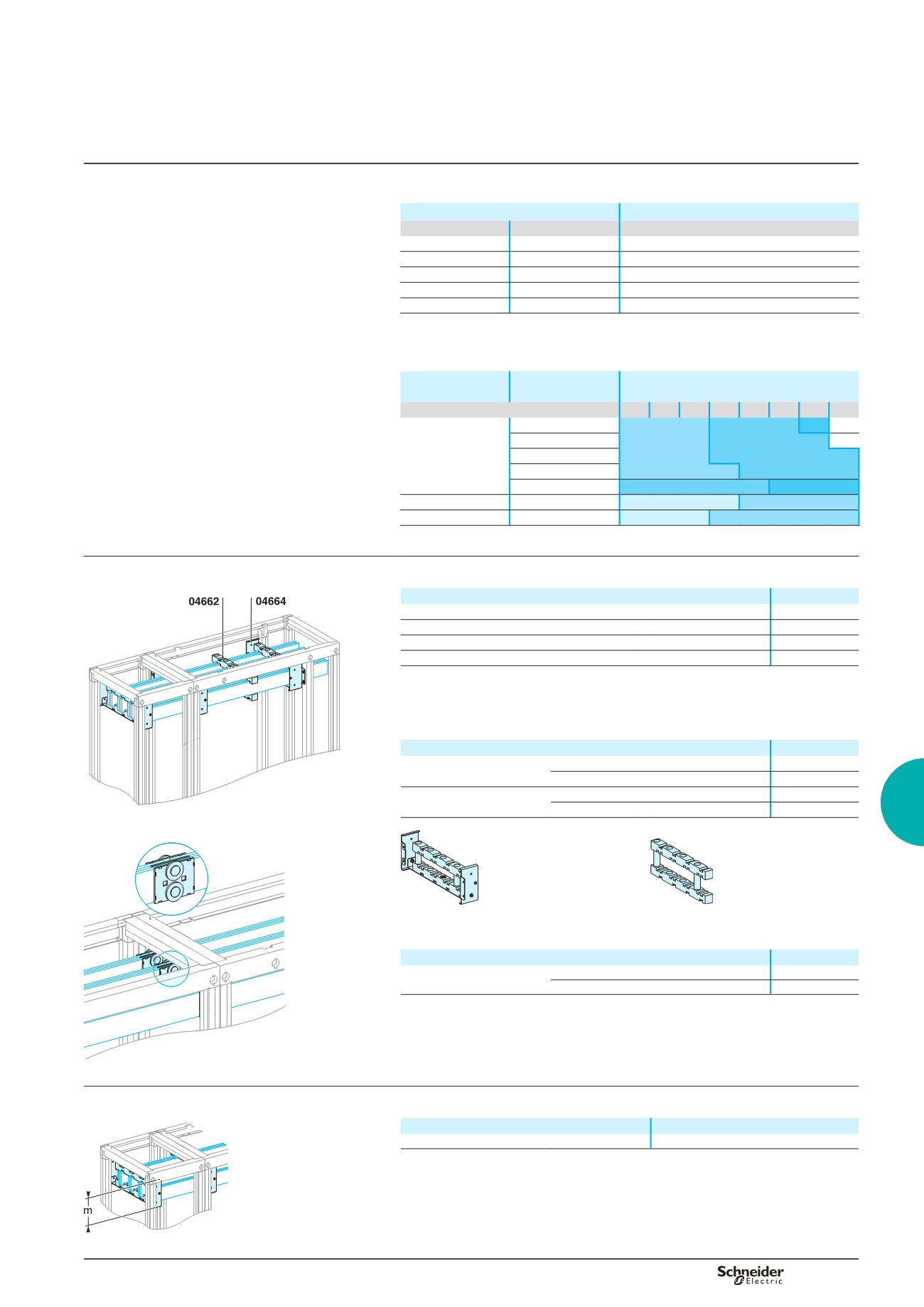

B-5

Horizontal busbars

Up to 3200 A

Flat copper bars 10 mm thick

Distribution

Busbar calculation

Number and size of copper busbars

The bars are secured by insulated supports attached to

the framework.

The tables opposite indicate:

b

the number and size of the bars to be used,

depending on the permissible current level in the

busbars

b

the number of busbar supports for each type of

framework, depending on:

v

the size of the busbars

v

the rated short-time withstand current Icw.

For more information on busbar calculations, see page

D-23.

Permissible current (A)

No. of bars / phase

IP

y

31

IP > 31

1800

1600

1 bar, 80 x 10

2050

1850

2 bars, 50 x 10

2300

2000

2 bars, 60 x 10

2820

2500

2 bars, 80 x 10

3300

2900

2 bars, 100 x 10

Note: t

he permissible current values for the busbars are given for an ambient temperature of 35°C

around the switchboard.

Number of supports

Framework width

(mm)

Size of bars

(mm)

No. of supports

Icw

(kA rms / 1 s)

y

25

y

30

y

40

y

50

y

60

y

65

y

75

y

85

W = 650 mm

W = 650 + 150 mm

1 bar, 80 x 10

4

2 bars, 50 x 10

2

3

2 bars, 60 x 10

2 bars, 80 x 10

2 bars, 100 x 10

3

4

W = 300 mm

All sizes

1

2

W = 400 mm

All sizes

1

2

Note

: for a W = 800 mm framework, add a free support to the number of fixed supports given by

the table below.

Busbar selection

Flat busbars, L = 2000 mm

DD381229

Designation

Cat. no.

Copper bar without holes, 50 x 10

04545

Copper bar without holes, 60 x 10

04546

Copper bar without holes, 80 x 10

04548

Copper bar without holes, 100 x 10

04550

Busbar supports

Two fixed supports for 650 mm, 650 + 150 mmwide frameworks and one fixed support

for 300/400 mm wide frameworks are mandatory. If more supports are required, use

free supports.

Designation

Cat. no.

Fixed support for horizontal

bars

Width

y

80 mm

04664

Width > 80 mm

04664 + 04671

Free support (additional) for

bars

Width

y

80 mm

04662

Width > 80 mm

04662 + 04671

Icw 50 kA rms / 1 s.

DD381226

DD381225

DD381231

04664.

04662.

Joints

Designation

Cat. no.

1 joint for bars

Width 50 and 60 mm

04640

Width 80 and 100 mm

04641

Note:

when installed, at the bottom of cubicles, the busbars must be partitioned, see page B-28.

04641.

Busbar dimensions

DD381228

Type of busbars

No. of vertical modules required

Top or bottom horizontal busbars

3

Main distribution
