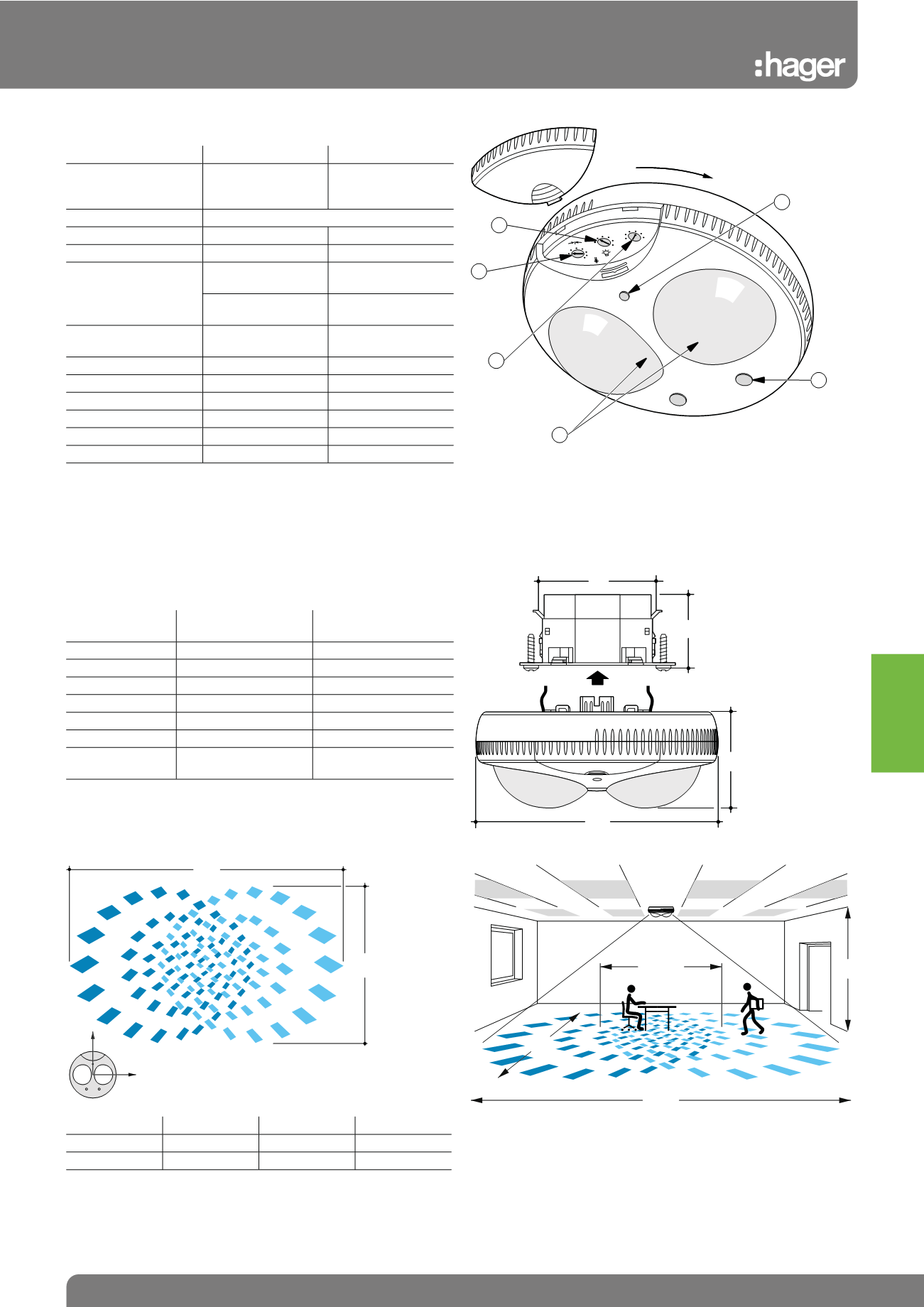

Presence Detectors
Technical Specification
TX510
TX511
Type
Presence detector
EIB/KNX TOR
Presence
detector EIB/KNX
light regulator
Supply
30V bus EIB, 12mA
Channel 1/Channel 2
ON/OFF switching -
Channel 1
-
ON/OFF Switching
Light intensity
-
Communication with
light intensity level
-
Adjustment to light
intensity level
Light
OFF: Auto
ON: Movement
Consumption
< 0.2W
Working Temperature
0ºC to +45ºC
Storage Temperature
-10ºC to +60ºC
Protection Index
IP41
Connection
By TG008 connector
Size
110 x 44mm
Function
• Lighting time delay adjusted by potentiometer : 1 to 30min.
• Period of presence adjusted by potentiometer : 30s to 60min.
• Brightness range : 5 to 1200 lux
• System height : 2.5m to 3.5m
Adjustment of Light Intensity Level
Position
Light Intensity in Lux Equivalent in a
Building
1
5
-
2
100
Circulation
3
200
Circulation. WC
4
300
Work plan
5
500
Office
6
800
Class room laboratory
ON
Measurement of light
intensity inactive
-
Position (1...6) do not take into account the environment (office,
furniture).
H
2.5m
3m
3.5m
X
13
15.5
18
Y
7
8
9
Presentation
Potentiometer adjusting of the lighting time delay
Potentiometer adjusting of the light intensity level
Potentiometer adjusting of the presence output (TX510 only)
VI signalling light
Detection lens
Sensor for light intensity measurement
1 2 3
4
5
6
lux
1
5
10
15
30
test
On
min
5 30s
10
15
30
45 60
min
1
4
5
6
3
2
60
28
31
110
X
Y
X
Y
X
Y
presence
area
passage
passage
h
