The Output Products for Shutter and Blinds
Output module 4 shutters, blinds or curtains TXA223, TXA224,
TXA225 and TXA226.
The whole range of the products blinds and shutters is divided into
two applicatons:
• TXA223 and TXA225 modules manage the controls up, down and
stop. They are used to control roller shutters, awning blinds, etc.
• TXA224 and TXA226 modules manage the controls up, down,
stop, as well as the inclination of slats.
The TXA225 and TXA226 products are used for direct current motor
control. The controls UP and DOWN are obtained by polarity
reversal.
In “Auto” mode, the movement orders come from the input modules
of the Tebis system.
In “Menu” mode, these controls are accessible by the push-buttons
in front of the module (priority setting).

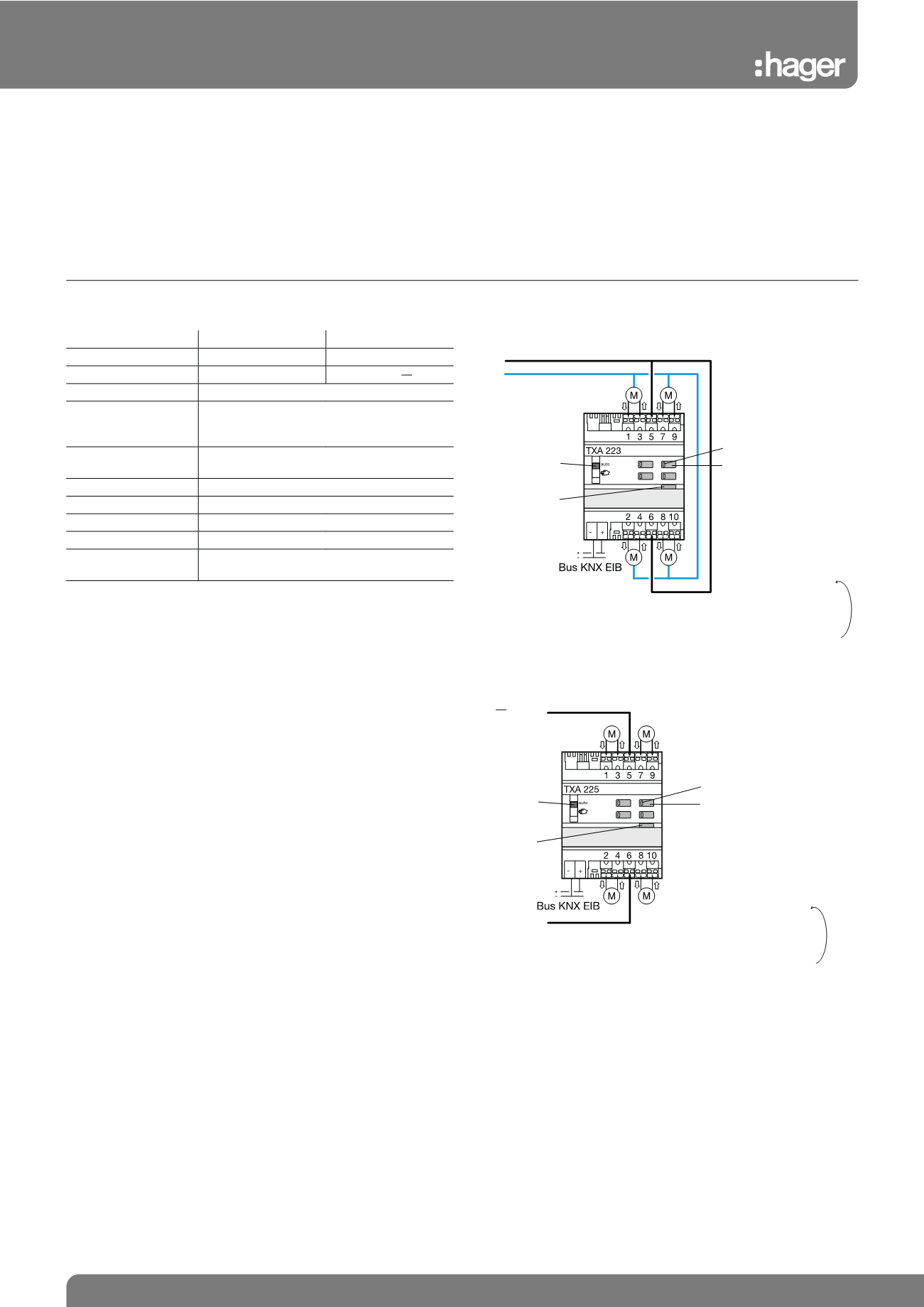

Electrical Connection
TXA223 / TXA224
TXA225 / TXA226
L
N
Switch Auto/
Manual
PB for physcial
addressing
Visualisation of the
output state
Push-button for :
a) Programming
b) Priority setting of
the outputs in position
of the Auto/Manu
switch.
Following the
chronology below:
- 1st push : down
- 2nd push : STOP
- 3rd push : up
- 4th push : STOP
- 5th push : down
24V ... +
Visualisation of the output
state
Push-button for :
a) Programming
b) Priority setting of the
outputs in position of the
Auto/Manu switch.
Following the chronology
below:
- 1st push : down
- 2nd push : STOP
- 3rd push : up
- 4th push : STOP
- 5th push : down
Switch Auto/
Manual
PB for physcial
addressing
Technical Characteristics
References
TXA223, TXA224 TXA225, TXA226
Number of outputs 4
4
Breaking capacity
6A AC1 250VM 6A DC1 24V ...
Supply of module
Bus 30V DC
Time setting
between 2 controls of
opposite direction
600ms
Max. dissipation of
prodict
2W
Working temperature 0 to +45ºC
Storage temperature -20 to +70ºC
Degree of protection IP30
Width in modules
4
Connection flexible
or rigid
0.75 to 2.5mm
2
quick connect terminals
Note
: Connecting of motors
• Alternative current motors (never connect any motors in
parallel).
• Continuous current motors (two motors powered in DC can
be connected in parallel on condition to meet the nominal
current of the TX225 or TX226 modules).
