General Catalogue • Technical • tebis.KNX
Output Products for Lighting
The output modules TXA204C, TXA206A/B/C et TXA207C
have 4, 6 or 10 independent outputs (free of potential) to carry out the
following controls :
• ON/OFF
• Time delays ON or OFF of 1 second to 12 hours
• Priority settings start or stop
• Sophisticated time lag switch 1 sec. to 24 hours
In “Auto” mode, the start and stop orders come from the input
modules of Tebis.
In “Manual” mode , these controls are accessible by the
push-buttons in front of the module (priority setting).
These products are configured with tool TX100GB or by ETS
Software* *additional functions : heating application with TXA 204C
and TXA 206A/B/C/D.
TXA206A
TXA206B
TXA206C
TXA204C
TXA206D
TXA207C
No of outputs, In
6 outputs, 4A 6 outputs, 10A 4 or 6 outputs,
16A capacitive
loads
6 outputs, 16A 10 outputs, 16A
Breaking Capacity :
• Incandescent and halogen 230 V
800W
1200W
2300W
2300W
2300W
• Halogen ELV ferromagnetic transformer 800VA
1200VA
1600VA
1600VA
1600VA
• Halogen ELV electronic transformer
800VA
1000VA
1200VA
1200VA
1200VA
• Non compensated fluorescent tubes
800W
1000W
1200W
1200W
1200W
• Parallel compensated fluorescent tubes
1500W with 200μf
• Fluorescent tubes for electronic ballast
12 x 36W 15 x 36W 20 x 36W 20 x 36W
20 x 30W
• Compact fluorescent lamps
6 x 23W
12 x 23W 18 x 23W 18 x 23W
18 x 23W
Supply of the module
Bus 30V DC Bus 30V DC Bus 30V DC Bus 30V DC
Bus 30V DC
Maximum dissipation
1W
5W
12W
12W
15W
Working temperature
0ºC to +45ºC 0ºC to +45ºC 0ºC to +45ºC 0ºC to +45ºC 0ºC to +45ºC
Storage temperature
-20ºC to +70ºC -20ºC to +70ºC -20ºC to +70ºC -20ºC to +70ºC -20ºC to +70ºC
Degree of protection
IP30
IP30
IP30
IP30
IP30
Width of the module
4 Modules
4 Modules
4 Modules
4 Modules
6 Modules
Connection
0.75 to 2.5mm
2
0.75 to 2.5mm
2
0.75 to 2.5mm
2
0.75 to 2.5mm
2
0.75 to 2.5mm
2

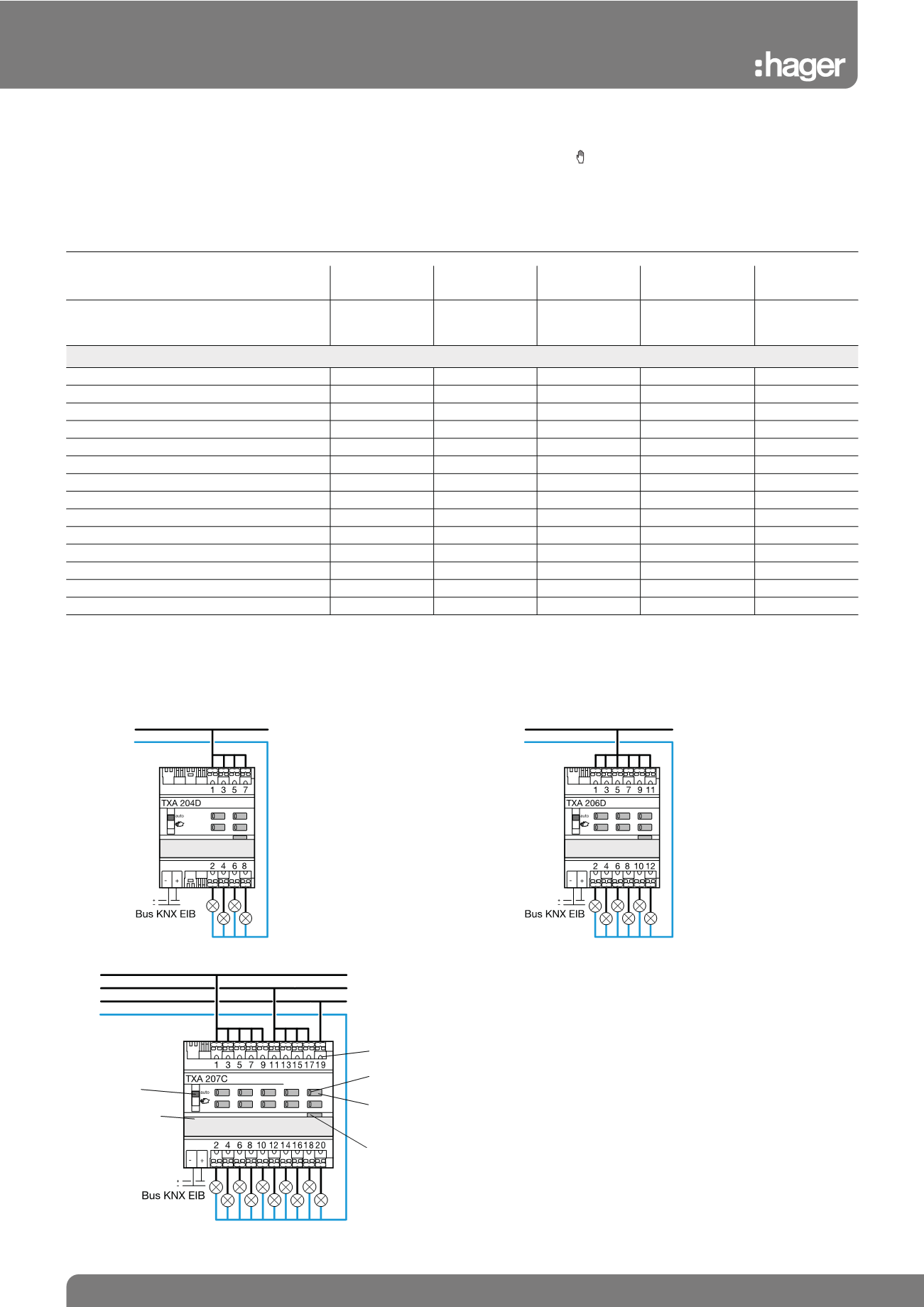

Electrical Connection
TXA204C 4 Outputs
TXA206A/B/C/D 6 Outputs
TXA204C 4 Outputs
L
N
Auto / Manu
commutator
Folding label
holder
Test point voltage presence
LED for state indication
Control button for manual
mode
Physical light addressing
L
N
Auto / Manu
commutator
Folding label
holder
Test point voltage presence
LED for state indication
Control button for manual
mode
Physical light addressing
L1
L2
L3
N
Auto / Manu
commutator
Folding label
holder
Test point voltage presence
LED for state indication
Control button for manual
mode
Physical light addressing
