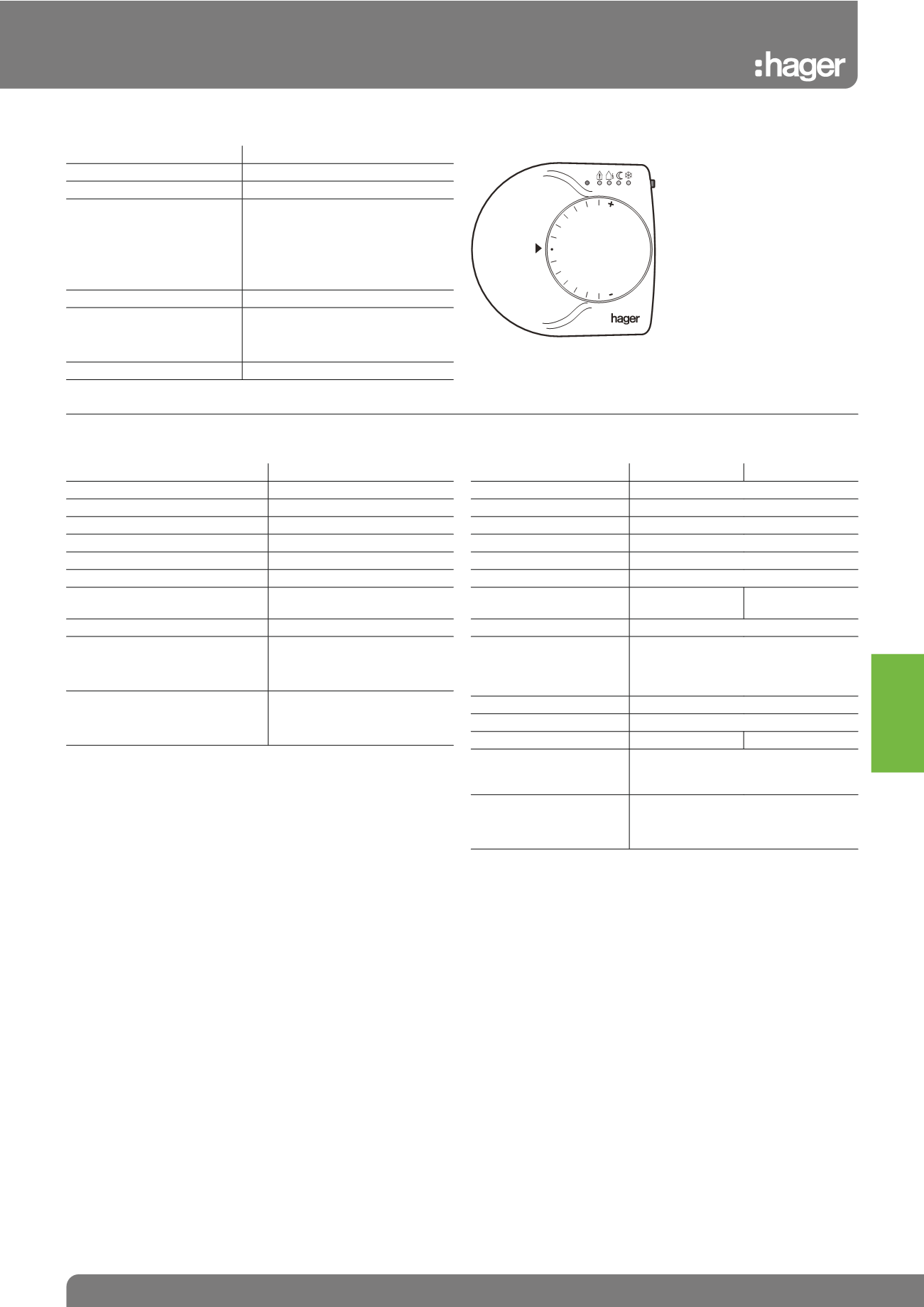

Temperature Control Actuator
Thermostat
Product Ref.
TX320
Dimensions
80 x 84 x 28mm
Detection Range
0º to +40ºC
Temperature Grade
Comfort mode
Standby
Night time mode
Frost preventing mode
10ºC to 28ºC (parameter adjustable)
0.5k to 4k comfort temperature
3k to 8k comfort temperature
3º to -10ºC
Bus Connection
Integrated bus coupler
Ambient Temperature
Storage
Operation
-25ºC - +60ºC
0º to +50ºC
Extra Input End
Bus input end
Select switch for operation
mode / display button
Comfort mode
Standby mode
Night time mode
Frost preventing mode
Red / Blue diode
Red = Heating
Blue = Cooling
Off = Already reached preset
temperature
Dial to set temperature
Heating Valve Controller
Product Ref.
TX206H
Dimensions
75 x 75 x 306mm
Main Voltage
230V 50/60Hz (Secondary, 24V)
Power Consumption
3W
Voltage of Output Terminal
24V AC
Number of Outputs
6
Valve Number of each Output
Max 4 (for each driver, max 13)
After getting connected, server
driving Auto makes interlock
10 min.
Protection Type
IP20
Connection
• Flexible
• Passive
Plug-in connecting terminal
1 - 1.5mm
2
0.5 - 1.5mm
2
Ambient Temperature
• Storage
• Operation
-25 to +60ºC
0ºC to 50ºC
Notes of Functions
• When network voltage is in function, operation LED will flash.
• When operation of heating valve fails (safety, failure), safety LED
will flash. Please call a KNX specialist as required.
• If the actuator connects on startup, function LED will flash.
Product Ref.
TX501
TX502
Dimensions
82 x 50 x 65mm
Main Voltage
Bus 30V DC (Secondary 24V)
Valve End Impressing
Auto
Regulating Force
> 120N
Max Regulating Travel
6mm (linear motion)
Operating Time
<20s/mm
Travel Display
5 LED
Simultaneous
press of button
Display of Rating
5 LED
Accessory Valve Adaptor
Danfross, RA, Heimeier, MNG,
Schlösser, Honeywell, Baukmann,
Dumer, Reich, Landis+Gyr, Overtop,
Herb, Onda
Input End
Two input ends in binary system
Protection Grade
III
Protection Type
IP21
IP20
Connection
6 pole line (1m): Blk/Red: EIB bus
Yellow/Green: Window contact White/
Brown: display alarm
Ambient Temperature
• Storage
• Operation
-25ºC to +60ºC
0 to +50ºC
Tebis KNX
