Blinds and Rolling Shutters Output Products
Technical Characteristics
TRB221
TRB521
Supply
230V 50Hz ± 15%
230V 50Hz ± 15%
Input
2 inputs, potential free
Output
1 shutter ouput, 6A 230V AC1
1 shutter output, 6A 230V AC1
Maxi. power loss
2W
2W
Min. time between revertive pulsing
600ms
600ms
Radio frequency
868.3 MHz
868.3 MHz
Emission range
• Inside a building
Max. 30m
• Open area
Max. 100m
Working temperature
0ºC to +45ºC
0ºC to +45ºC
Storage temperature
-20ºC to +70ºC
-20ºC to +70ºC
Degree of Protection
IP30
IP30
Size
48 x 53 x 30mm
48 x 53 x 30mm
Connection Through Cage Terminal
• Flexible
0.5 to 2.5mm
2
0.5 to 2.5mm
2
• Rigid
0.5 to 2.5mm
2
0.5 to 2.5mm
2

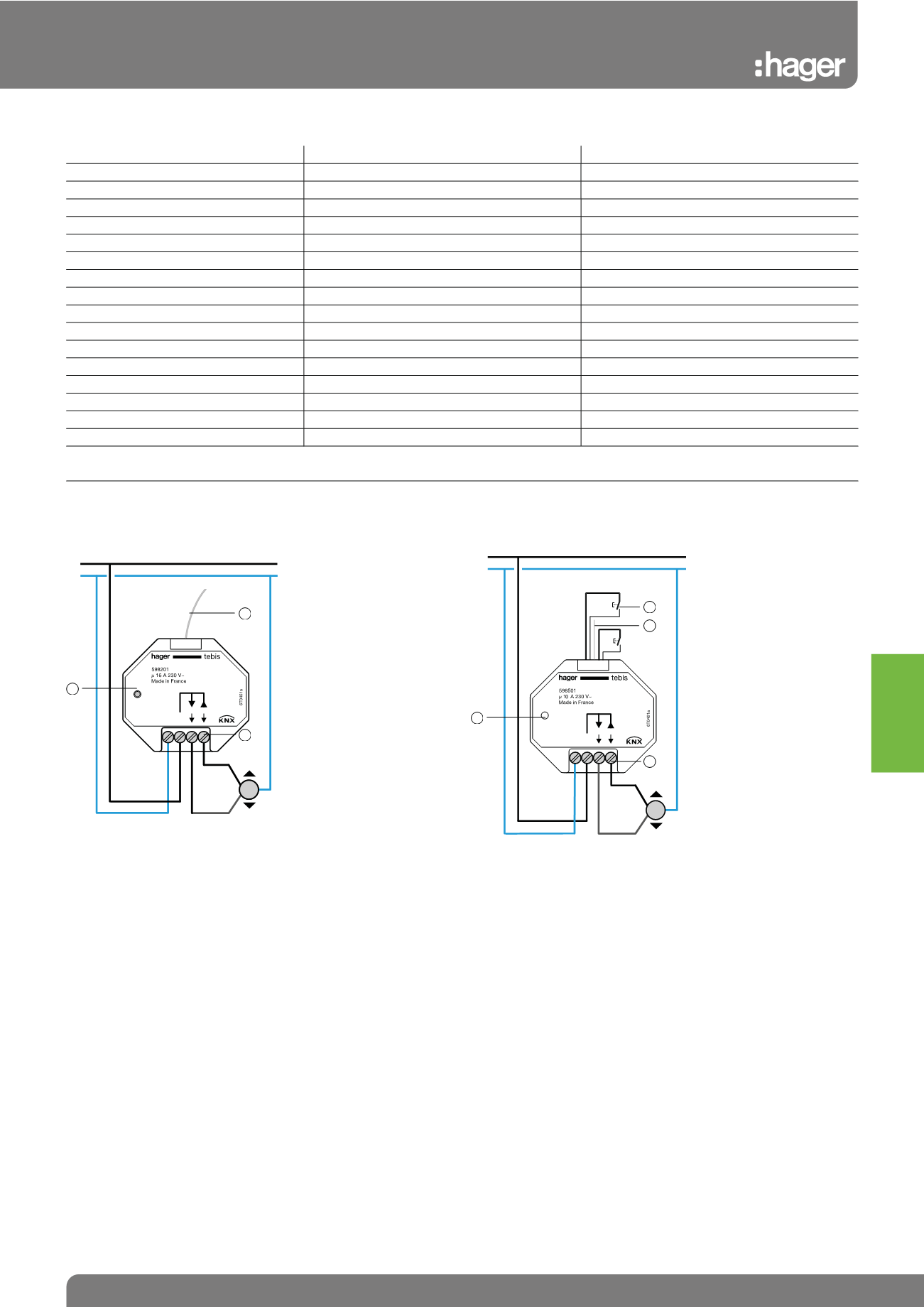

Rolling shutters / blinds
TRB221 : 1 output
TRB521 : 2 inputs / 1 output
8
N L
L
N
M
TRB221
8
TRB501
L
N
N L
M
- Display of output state
- Radio antenna
- Supply limits :
L = Line 230 V
N = Neutral
W
= Down
V
= Up
1
2
3
1
2
3
4
- Display of output state
- Radio antenna
- Supply limits :
L = Line 230 V
N = Neutral
W
= Down
V
= Up
- Input contacts
Tebis KNX
