General Catalogue • Technical • tebis.KNX
System Products

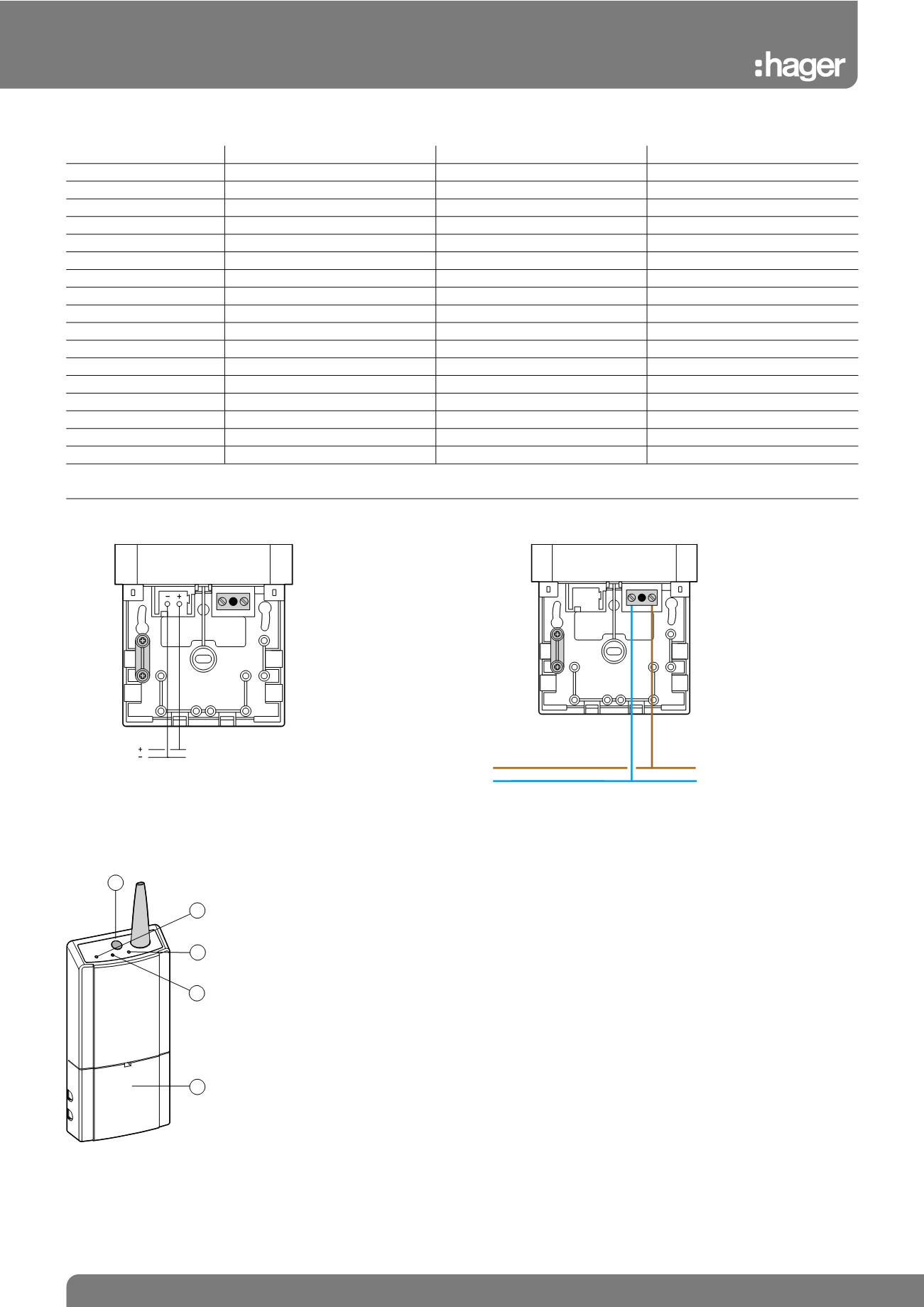

Electrical connection
TR131A
TR140B
Introduction of TR131A
Media coupler
L
N
Cover
Pairing button : pairing with
TX100GB (to be activated
when synchronising with
TX100GB : Select the coupler
by pressing on its pairing
button for a period of 4 up to
10 seconds)
Physical addressing light
EIB / KNX communication
light bus/radio
Technical Characteristics
TX100GB
TR131A
TR140B
Supply
4 batteries or LR6 battery cells
bus: 30V/DC
4 outputs (230V, 50Hz phases)
Batteries
Ni-Mh 1.2V 1950mAh
-
-
Battery cells
1.5V alkaline
-
-
Working autonomy
AA 230V / 9V 1A charger type
-
-
Consumption
0.5A (per appliance)
-
-
Loss of Max. power
2W (per appliance)
-
-
Functioning autonomy
8 hours
-
-
Max recharge time
3h 30 mins
-
-
Broadcast frequency
868.3 Mhz
868.3 Mhz
868.3 Mhz
Broadcast power
Max. 10mW
Max. 25mW
Max. 25mW
Safeguard
USB flash drive
-
-
Working temperature
0ºC to +45ºC
0ºC to +45ºC
0ºC to +45ºC
Storage termperature
-20ºC to +70ºC
-20ºC to +70ºC
-20ºC to +70ºC
Ingress protection
IP 20
IP30
IP40
Weight
340 g
Size
75 x 169 x 34.9mm
203 x 77 x 26.5mm
203 x 77 x26.5 mm
Antenna
52mm
52mm
52mm
BUS EIB
3
2
5
4
1
