5.65 Sales Service Centre • 01952 675612 Technical Support Helpline • 01952 675689
Three Phase Measuring Current Transformers
• Accuracy Class 1
• Aperture: 3 @ 31 x 31mm
• Primary Current: 250 to 630A
• 45mm hole centres
• Housing Material Self extinguishing Nylon
IEC185 classification VO according to UL-94
• Reference standard EN60044-8
• Weight : 680g
• Accuracy Class 1
• Aperture: 3 @ 16 x 20 mm
• Primary Current: 60 to 160A
• 29mm hole centres
• Housing Material Self extinguishing Nylon
IEC185 classification VO according to UL-94
• Reference standard EN60044-8
• Weight : 500g

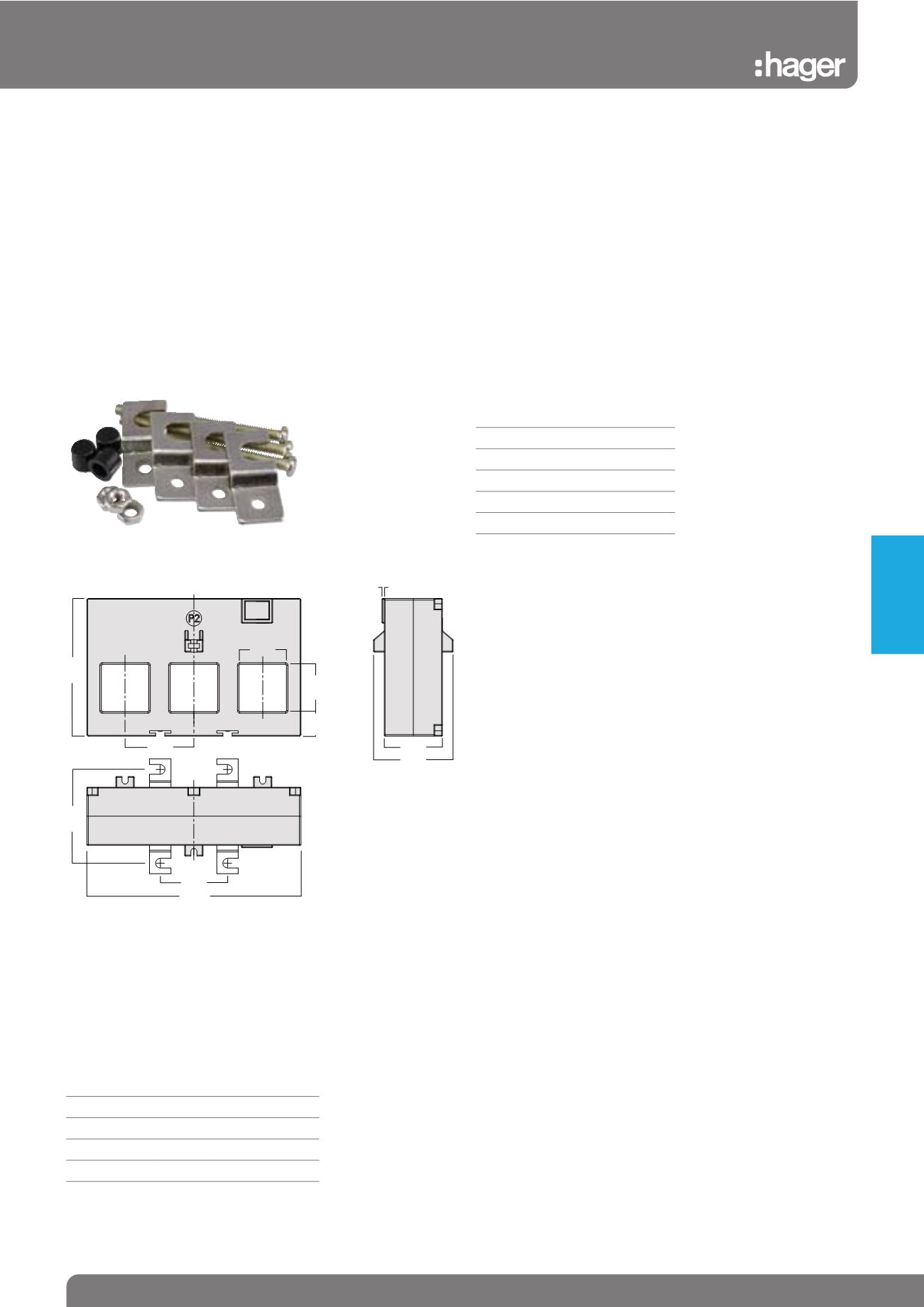

Dimensions (mm)
Description
This is a 140mm wide three phase measuring current transformer
designed for use with the plug-in multifunction power meters. This
current transformer has three 31 x 31mm holes and is available with
primary currents from 250 to 630A. (h630 frame)
Internal safety circuitry is provided which limits the output voltage
to a safe level, allowing the transformer secondary to be left discon-
nected under load.
Fixing
Busbar mounting and fixing feet included.
140.00
44.00
45.00
31.00
38.00
1.50
52.00
16.00 31.00
90.00
60.50
Accessories
DIN rail mounting clip.
Installation
The CT uses plug-in technology allowing much faster installation
saving you time and money. Additionally, all our three phase current
transformers have been designed with hole centres and apertures to
fit most standard industrial circuit breakers.
For EC40250CT, EC40400CT, EC40630CT,
For EC6060CT, EC60100CT, EC60125CT, EC60150CT, EC60160CT,
Current Transformer Ratios
Current Transformer Ratios
Cat ref. A mV
EC40250CT 250 330
EC40300CT 300 330
EC40400CT 400 330
EC40500CT 500 330
EC40600CT 600 330
EC40630CT 630 330
Cat ref. A mV
EC6060CT 60 330
EC60100CT 100 330
EC60125CT 125 330
EC60150CT 150 330
EC60160CT 160 330
