General Catalogue • Modular Devices • Technical
Dimmers
Technical characteristics
EVN011
EVN012
EVN002
EVN004
Supply voltage
230 V +/- 10 %
Frequency
50/60 Hz
Load consumption
0.2 W
Load control type
Direct
Remote power
300W
500W
Compatible Load Types
Incandescent 230 V
300W
500W
Halogen 230 V
300W
500W
ELV halogen with transformer
300VA
500VA
Dimmable fluocompact
60W
100W
Dimmable LED 230 V
60W
100W
I max. authorized for PB light
5mA
-
5mA
Max. PB-dimmers distance or 1-10 V control
50m
Dim PB and ON/OFF on module
No
Yes
Number of preset lighting levels
-
1
Preset lighting levels control entry
-
1
Max. power dissipation
2.1W
4.5W
IP Rating
IP20
Operating temperature
- 10°C to + 45°C
Storage temperature
- 25°C to + 70°C
Rigid connection
1.5 to 6 mm
2
Flexible connection
1 to 6mm
2

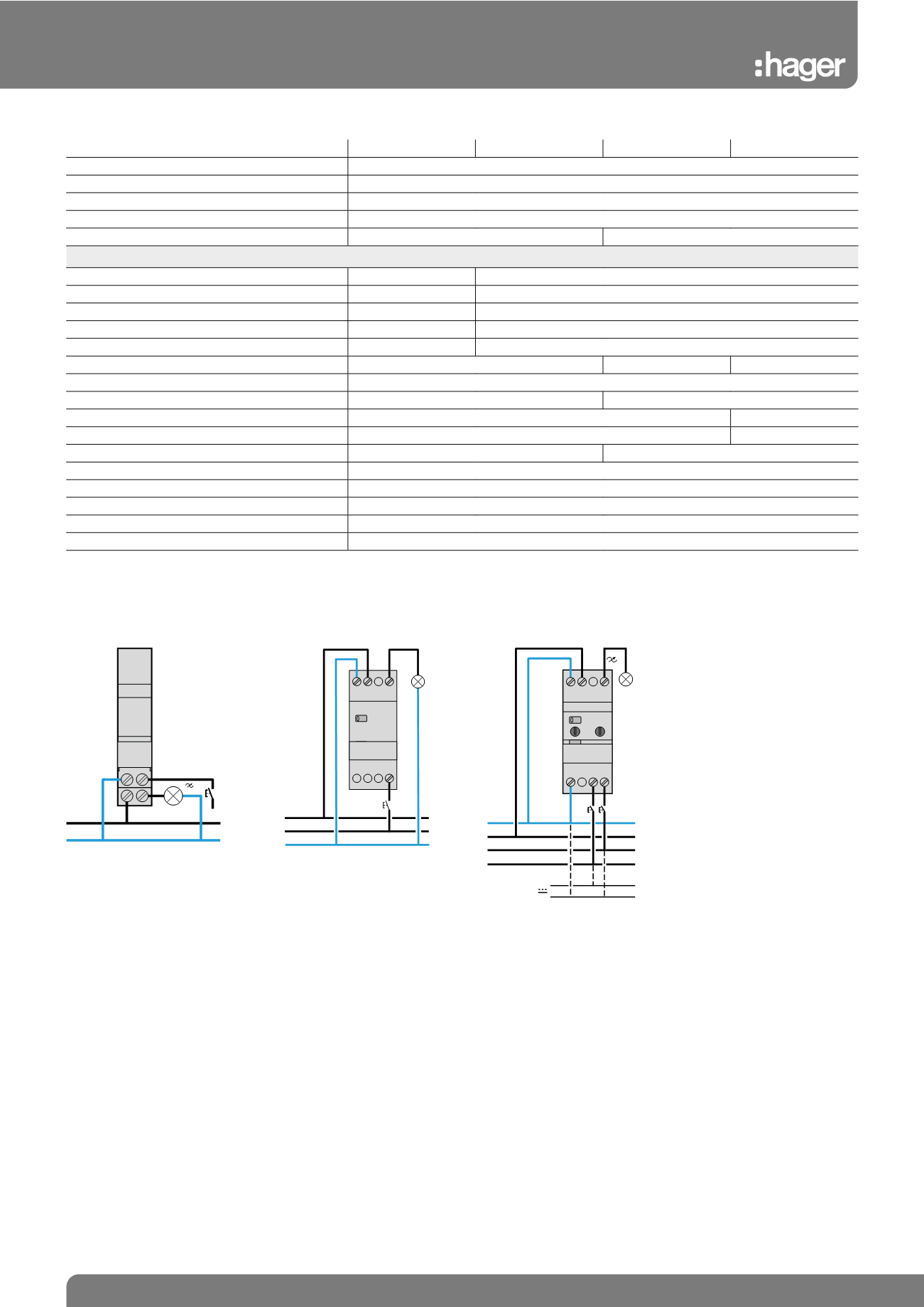

Wiring diagrams
EVN011 - EVN012
EVN002
EVN004
ε
Ph/N
4
3
N
L1
L2
E1
ε
ε
+ 24 V
E1 E2
N
L1
L2
L3
Use the same phase for control
and supply.
Do not forget to connect the 2
neutral points.
