Essential Extras & Accessories
RJ45 Connection Cable
The high quality low loss Category 5e RJ45
Connection Cable provides secondary
connection between the plug-in current
transformer and meter.
CT Output and RJ45 Lead Tester
This device makes it possible to test the RJ45 patch lead used
to connect the current transformer to the meter. It also enables a
standard electricians multimeter to measure the individual secondary
outputs of the current transformer.
To test the RJ45 patch lead, simply disconnect the lead
from the meter and current transformer. Plug one end into socket
1
and the other end into socket
2
on the test box. Press the test button
- the Green LED will light to indicate the lead is OK or the Red LED
will light to indicate a faulty lead. When the lead is proven to be OK
you can then check the individual secondary outputs of the current
transformer. To measure the secondary output plug one end of the
RJ45 patch lead into the current transformer and the other end into
socket
2
on the test box. You can now use a standard multimeter
to test the secondaries using the test points on the front of the test
box. The output measured for each phase should be between 0 and
330mVac.
Model Reference: JFT03
How to Order / Model Reference
eg
PGRJ
300
Part Number
PGRJ
Cable Length
0.3m - RJ45 connector cable (300mm)
300
0.5m - RJ45 connector cable (500mm)
500
1.0m - RJ45 connector cable (1000mm)
1000
1.5m - RJ45 connector cable (1500mm)
1500
2.0m - RJ45 connector cable (2000mm)
2000
3.0m - RJ45 connector cable (3000mm)
3000
Other lengths available on request (Max. 15m)
Meter Voltage Supply Cable
Our high quality Meter Voltage Supply Cables
are fitted with a plug at one end and insulated
bootlace ferrules at the other and provide
power to the plug-in meter from your mains
supply. Two types of cable material are avail-
able:- LSZH (Low Smoke Zero Halogen) &
PVC.
How to Order / Model Reference
LSZH - 1mm
2
eg
PGM
300
Part Number
PGM
Cable Length
0.3m - Voltage Supply Cable (300mm)
300
0.5m - Voltage Supply Cable (500mm)
500
1.0m - Voltage Supply Cable (1000mm)
1000
1.3m - Voltage Supply Cable (1300mm)
1300
2.0m - Voltage Supply Cable (2000mm)
2000
3.0m - Voltage Supply Cable (3000mm)
3000
Other lengths available on request (Max. 15m)
PVC/PVC - 1mm
2
eg
PGMF
300
Part Number
PGMF
Cable Length
0.3m - Voltage Supply Cable (300mm)
300
0.5m - Voltage Supply Cable (500mm)
500
1.0m - Voltage Supply Cable (1000mm)
1000
1.3m - Voltage Supply Cable (1300mm)
1300
2.0m - Voltage Supply Cable (2000mm)
2000
3.0m - Voltage Supply Cable (3000mm)
3000
Other lengths available on request (Max. 15m)
Meter to Meter Supply Cable
Our high quality Meter to Meter Voltage Supply
Cables are fitted with a plug at one end and
socket at the other. This allows multiple plug-
in meters to be energised from a common
supply. Up to 32 meters can be powered in a
‘daisy chain’ arrangement using this method.
Two types of cable material are available:-
LSZH (Low Smoke Zero Halogen) & PVC.
How to Order / Model Reference
LSZH - 1mm
2
eg
PGMT
300
Part Number
PGMT
Cable Length
0.15m - Supply Link Cable (150mm)
150
0.5m - Supply Link Cable (500mm)
500
1.0m - Supply Link Cable (1000mm)
1000
1.3m - Supply Link Cable (1300mm)
1300
2.0m - Supply Link Cable (2000mm)
2000
3.0m - Supply Link Cable (3000mm)
3000
Other lengths available on request (Max. 15m)
PVC/PVC - 1mm
2
eg
PGMFT
300
Part Number
PGMFT
Cable Length
0.15m - Supply Link Cable (150mm)
150
0.3m - Supply Link Cable (300mm)
300
0.5m - Supply Link Cable (500mm)
500
1.0m - Supply Link Cable (1000mm)
1000
1.3m - Supply Link Cable (1300mm)
1300
2.0m - Supply Link Cable (2000mm)
2000
3.0m - Supply Link Cable (3000mm)
3000
Other lengths available on request (Max. 15m)

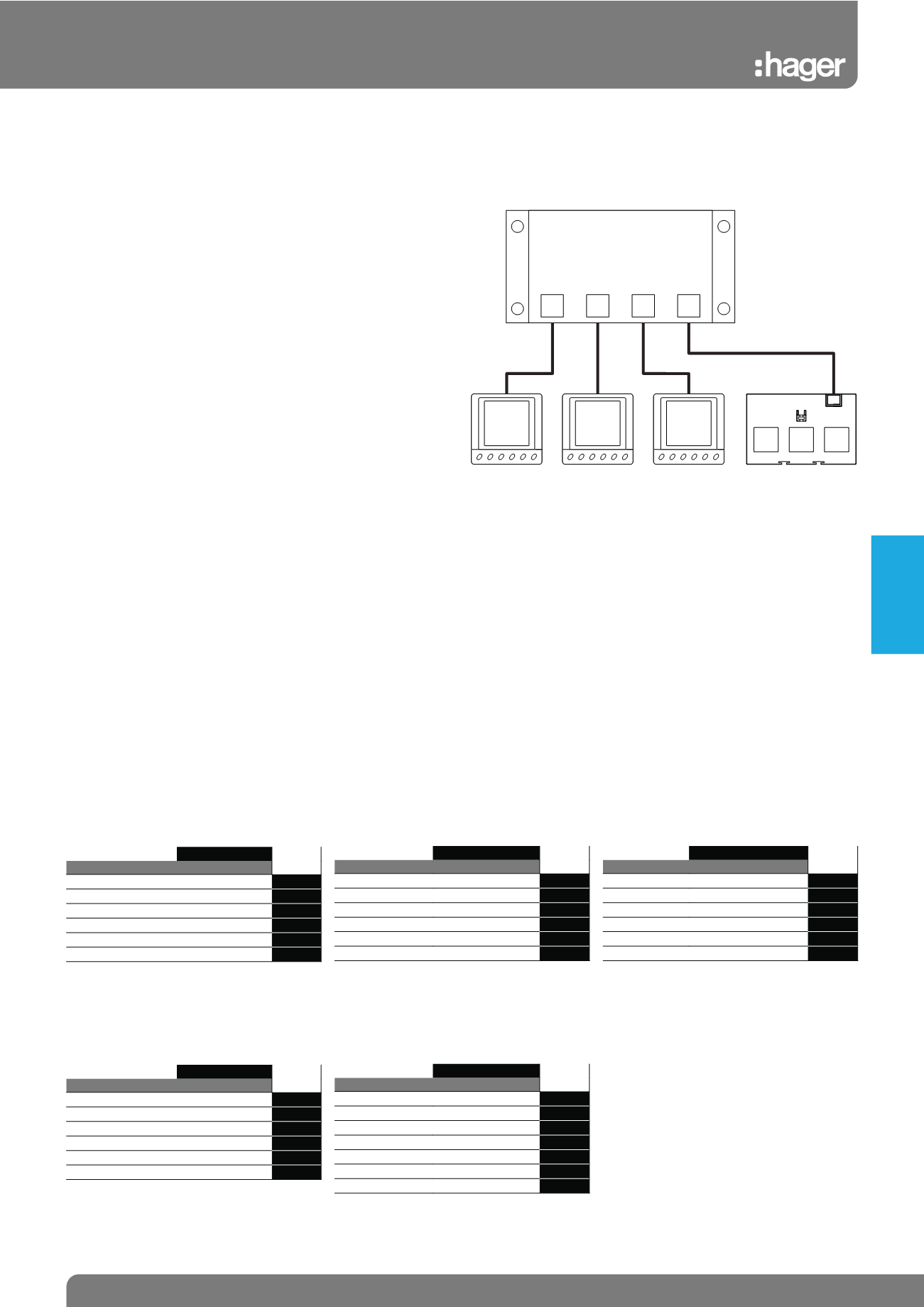

3 Phase CT Splitter Box
This 3 Phase CT Splitter Box allows the separate monitoring of each
phase of a three phase current transformer on individual energy
meters.
Model Reference: JFS03
Meter
1
Meter
2
Meter
3
3 Phase CT Splitter Box
To Single Phase Meters
L3 L2 L1 CT
CT
Modular
Devices
