Three Phase Measuring Current Transformers
• Accuracy Class 1
• Aperture: 3 @ 54 x 50mm
• Primary Current: 800 -1600A
• 70mm hole centres
• Housing Material Self extinguishing Nylon
IEC185 classification VO according to UL-94
• Reference standard EN60044-8
• Weight : 1200g

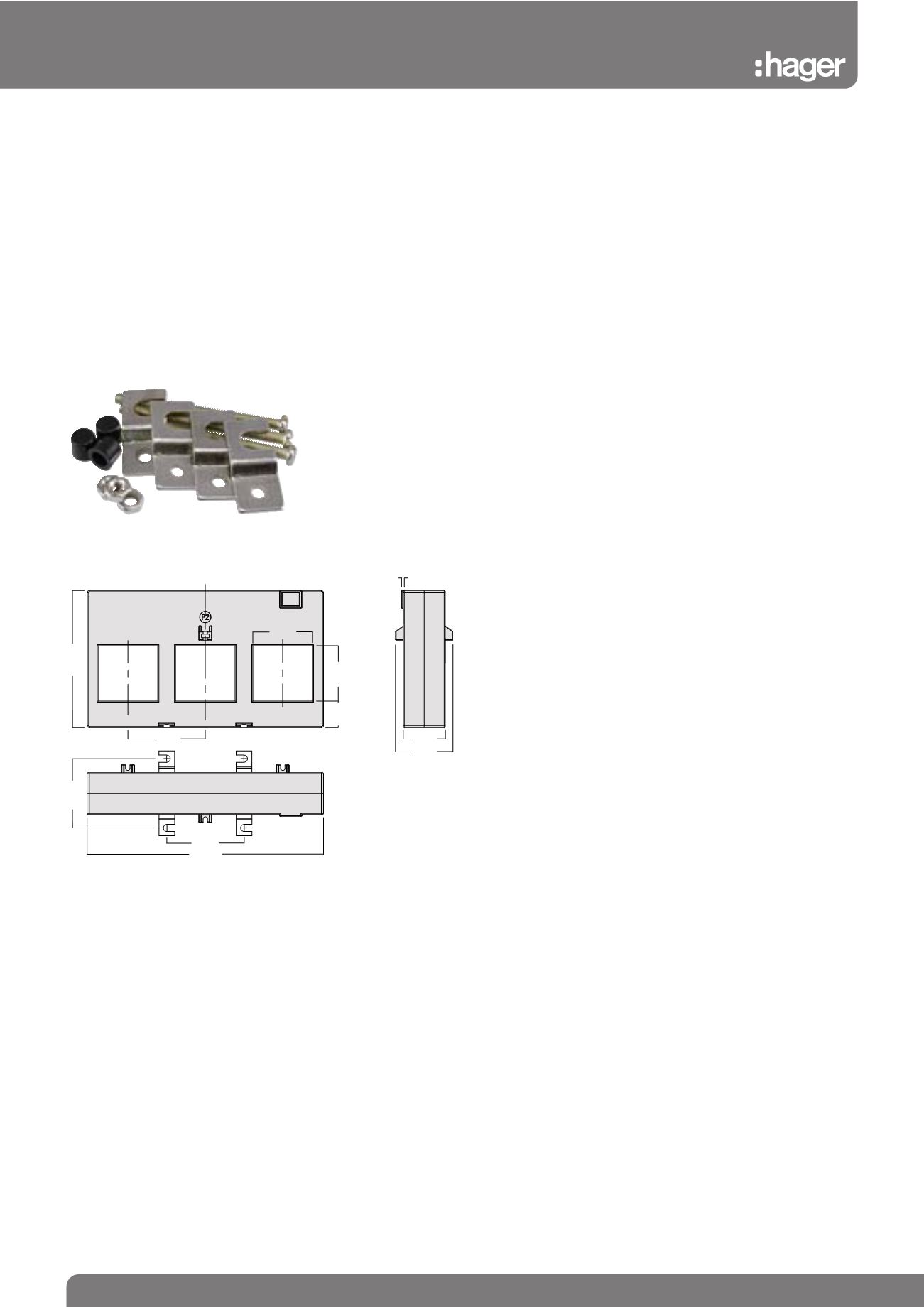

Dimensions (mm)
Description
This is a 215mm wide three phase measuring current transformer
designed for use with the plug-in multifunction power meters. This
current transformer has three 54 x 50mm holes and is available with
primary currents from 800.
Internal safety circuitry is provided which limits the output voltage
to a safe level, allowing the transformer secondary to be left discon-
nected under load.
Current Transformer Ratios
Primary
Current Output
A
mV
Code
800
330
800
330mV Secondary
Fixing
Busbar mounting and fixing feet included.
215.00
68.00
70.00
54.00
1.50
38.00
52.00
124.00
60.50
24.00 50.00
Accessories
DIN rail mounting clip.
Installation
The CT uses plug-in technology allowing much faster installation
saving you time and money. Additionally, all our three phase current
transformers have been designed with hole centres and apertures to
fit most standard industrial circuit breakers.
For EC80800CT
