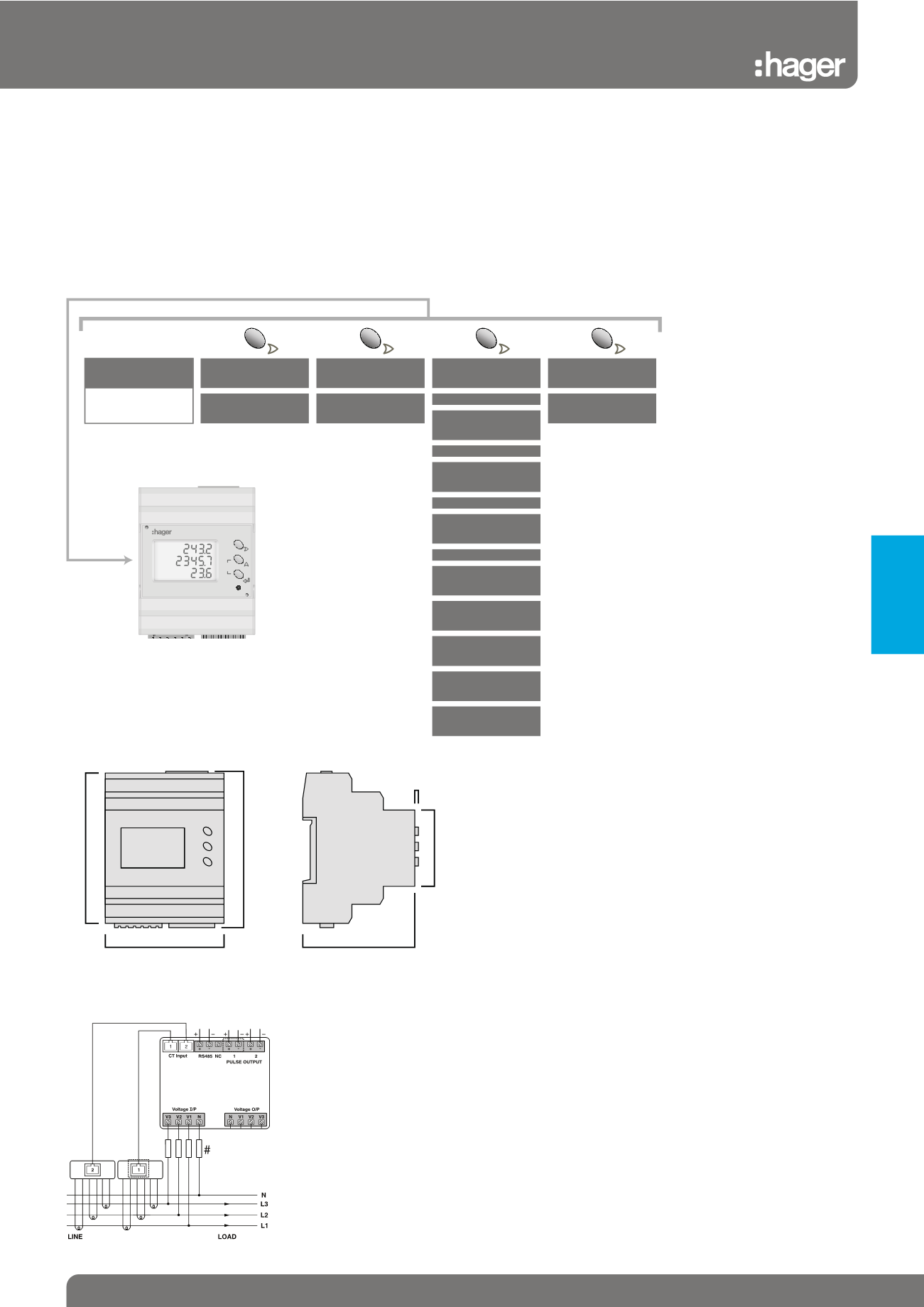

Dimension Diagrams (mm)
Please allow space above and below the meter for cable connections.
67 70
90 95 45
2
Home Page
(Unit will default to this
page after 60 seconds)
3 Phase Average L-N
Active Energy
Load 1 and 2
x 4 x 3
Voltage
Line to Line Per Phase
3 Phase Average L-N
Reactive Energy
Load 1 and 2
Power Factor 3 Phase Average
Frequency
Load 1
Voltage
Line to Neutral Per Phase
x 1
3 Phase Average L-N Voltage
Active Energy kWh - Load 1
Active Energy kWh - Load 2
Active Power
Three Phases
Load 1
Reactive Power
Three Phases
Load 1
Apparent Power
Three Phases
Load 1
Total Active Power
Three Phases
Load 1 and 2
As above - Load 2
As above - Load 2
As above - Load 2
As above - Load 2
Total Reactive Power
Three Phases
Load 1 and 2
Total Apparent Power
Three Phases
Load 1 and 2
Active Power
Max. Demand
Load 1 and 2
Current
Per Phase - Load 2
Current
Per Phase - Load 1
x 2
Active Power
Max. Demand
Load 1 and 2
100%
JKM02
PAGE
1 2 3 4 5 6 7
Current
Input 1
1
Current
Input 2
1
PRG
INT
8 9 10 11 12 13 14 15 16 17 18 19
L-N kW h
Avg
V
1
2
Button Selection
• Split Load, Dual CT input meter
• 4 Module DIN rail mounting
• Single phase or 3 phase (4 wire) network
balanced or unbalanced load
• Built-in dual energy pulse output, one
for each load and RS485 MODBUS
communication
• Wide range of measured parameters
(see table below)
• High quality backlit LCD display
• 330mV current transformer input
• Active energy class 1 (EN62053-21)
• Reactive energy class 2 (EN62053-23)
• THD upto 31st harmonic for voltage and
current
• 3-phase: 140…460Vac measured voltage
• Single phase: 80…265Vac measured
voltage
• Self supplied auxiliary
• Programmable CT ratio 5…10,000A per
load
• Programmable VT ratio
• Frequency 45/65Hz
• Selectable CT phase correction allows
reversal of L1 and L3
• Weight 200g
Function Diagram
Multifunction Power Meter - Dual CT Connection
Panel Mounting - LCD Display - JKM02
