Three Phase Measuring Current Transformers
• Accuracy Class 1
• Aperture: 3 @ 15.5 x 30mm
• Primary Current: 60 to 160A
• 25mm hole centres
• Housing Material Self extinguishing Nylon IEC185 classification VO
according to UL-94
• Reference standard EN60044-8
• Weight : 500g

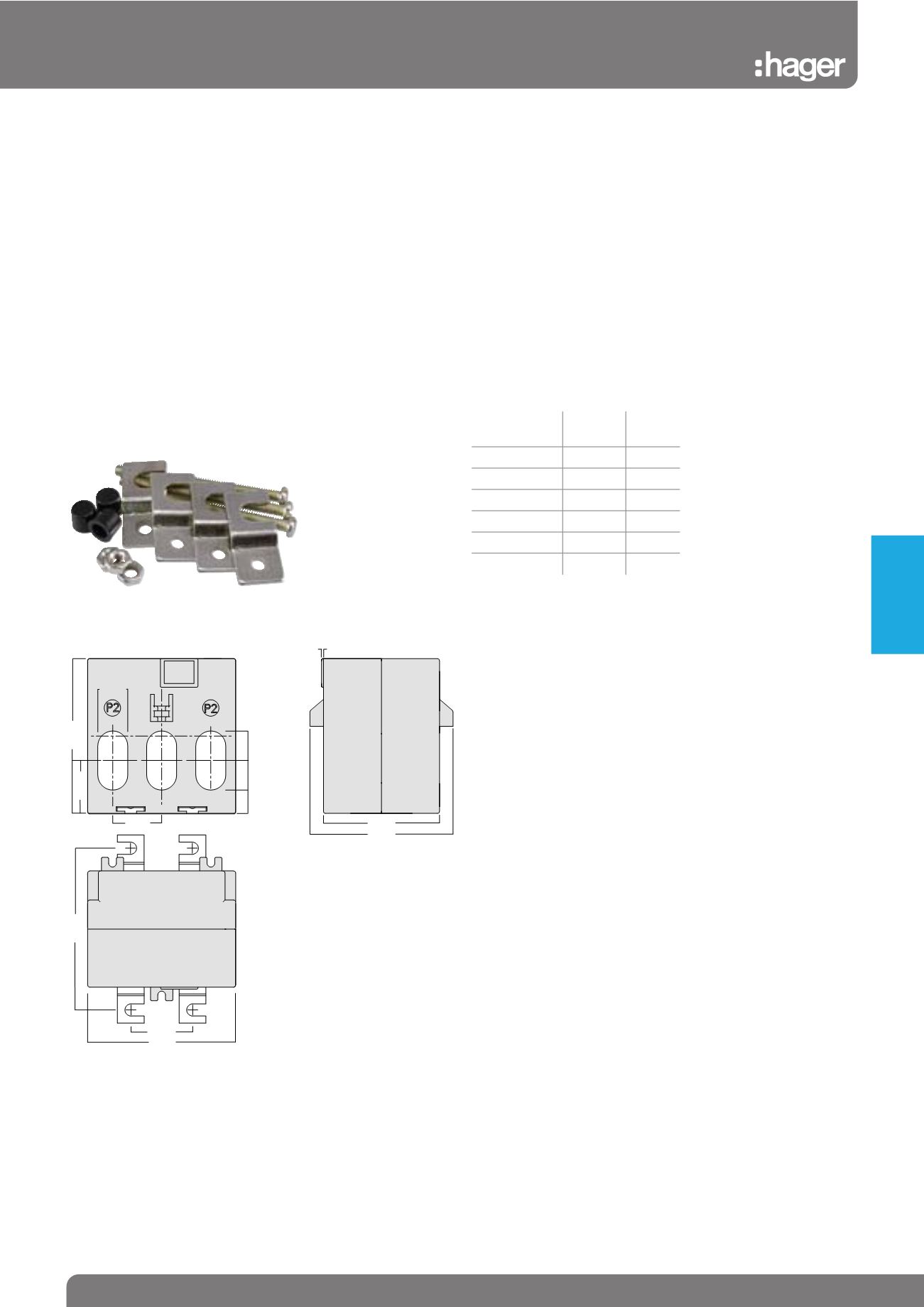

Dimensions (mm)
Description
This is a 75mm wide three phase measuring current transformer
designed for use with Hager x160 MCCBs and the plug-in
multifunction power meters. This current transformer has three 15.5
x 30mm holes and is available with primary currents from 60 to 160A.
(x160 frame MCCBs)
Internal safety circuitry is provided which limits the output voltage
to a safe level, allowing the transformer secondary to be left
disconnected under load.
Current Transformer Ratios
Cat ref.
Primary
current
Output
A
mV
EC1260CT 60
330
EC12100CT 100
330
EC12125CT 125
330
EC12150CT 150
330
EC12160CT 160
330
Fixing
Busbar mounting and fixing feet included.
75.50
31.50
25.00
15.30
1.50
60.00
74.00
80.00
27.50
82.50
12.25 30.50
Accessories
DIN rail mounting clip.
Installation
The CT uses plug-in technology allowing much faster installation
saving you time and money. Additionally, all our three phase current
transformers have been designed with hole centres and apertures to
fit most standard industrial circuit breakers.
For EC1260CT, EC12100CT, EC12125CT, EC12160CT
