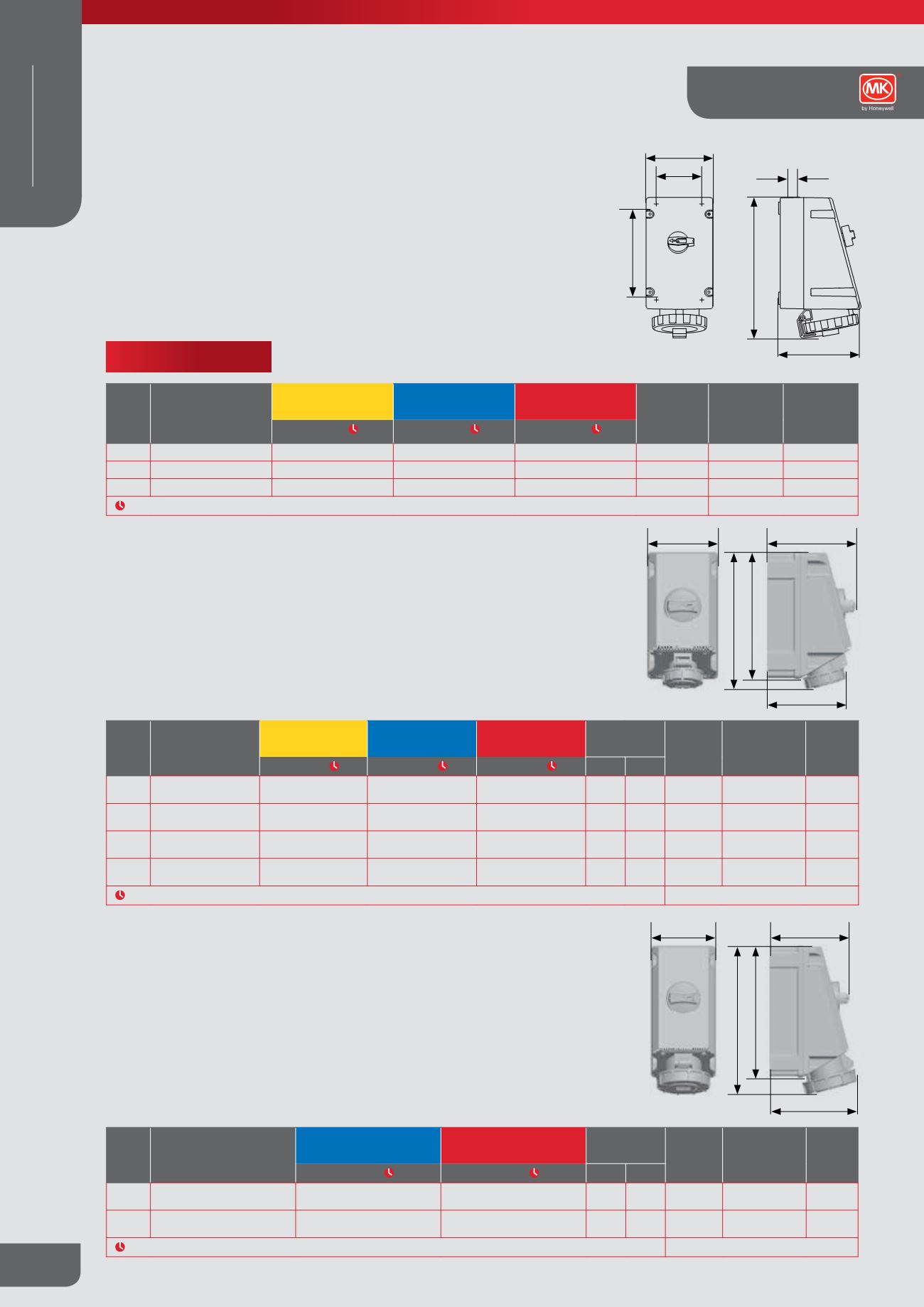

MK Electric Catalogue No. 49

566 / 759

566
WIRING DEVICES
INGRESS PROTECTEDSwitchsocket Outlets
Interlocked Surface Mounting
16 and 32 Amp
Switchsocket Outlets
Interlocked Surface Mounting
63 Amp
AMPS PIN.
CONFIGURATION
100-130V
50-60HZ
200-250V
50-60HZ
380-415V
50-60HZ
CABLE ENTRY
KNOCKOUTS
TERMINAL
CAPACITY*
MM 2
FIXING
CENTRES
MM
LIST NO LIST NO LIST NO
16A 3P+E K13625RED 6 2 x Ø25 top 1.5-4 90 x 170
32A 2P+E K13653YEL 4 2 x Ø25 top 2.5-10 90 x 170
32A 3P+E K13655RED 6 2 x Ø25 top 2.5-10 90 x 170
Earth Hour Position *Solid or Stranded conductors
Switch Utilisation Category AC 22A
Will accept auxiliary contacts6813 and6814
Switch can be locked in open or closed position.
IP67 WATERTIGHT
AMPS PIN.
CONFIGURATION
100-130V
50-60HZ
200-250V
50-60HZ
200/346-240/415V
50-60HZ
DIMENSIONS
IN MM
TERMINAL
CAPACITY*
MM2
CABLE ENTRY
KNOCKOUTS
FIXING
CENTRES
LIST NO LIST NO LIST NO A B
16A 2P+E K73623YEL 4 K73624BLU 6 233 135 1.5-4 Ø20/25+Ø25/32top and bottom 108×165
16A 3P+N+E K73626RED 6 233 147 1.5-4 Ø20/25+Ø25/32top and bottom 108×165
32A 2P+E K73654BLU 6 241 153 2.5-10 Ø20/25+Ø25/32top and bottom 108×165
32A 3P+N+E K73656RED 6 241 159 2.5-10 Ø20/25+Ø25/32top and bottom 108×165
Earth Hour Position *Solid or Stranded conductors
AMPS PIN.
CONFIGURATION
200-250V
50-60HZ
200/346-240/415V
50-60HZ
DIMENSIONS
IN MM
TERMINAL
CAPACITY*
MM 2
CABLE ENTRY
KNOCKOUTS
FIXING
CENTRES
LIST NO LIST NO A B
63A 2P+E K73660BLU 6 312 185 6-25 2×Ø32/40
top and bottom 123×225
63A 3P+N+E K73658RED 6 312 185 6-25 2×Ø32/40
top and bottom 123×225
Earth Hour Position *Solid or Stranded conductors
Commando Technical
275
135 168.6
B
A
215
120 152.8
B
A
149
C
Ø25X2
243
170
120
90
