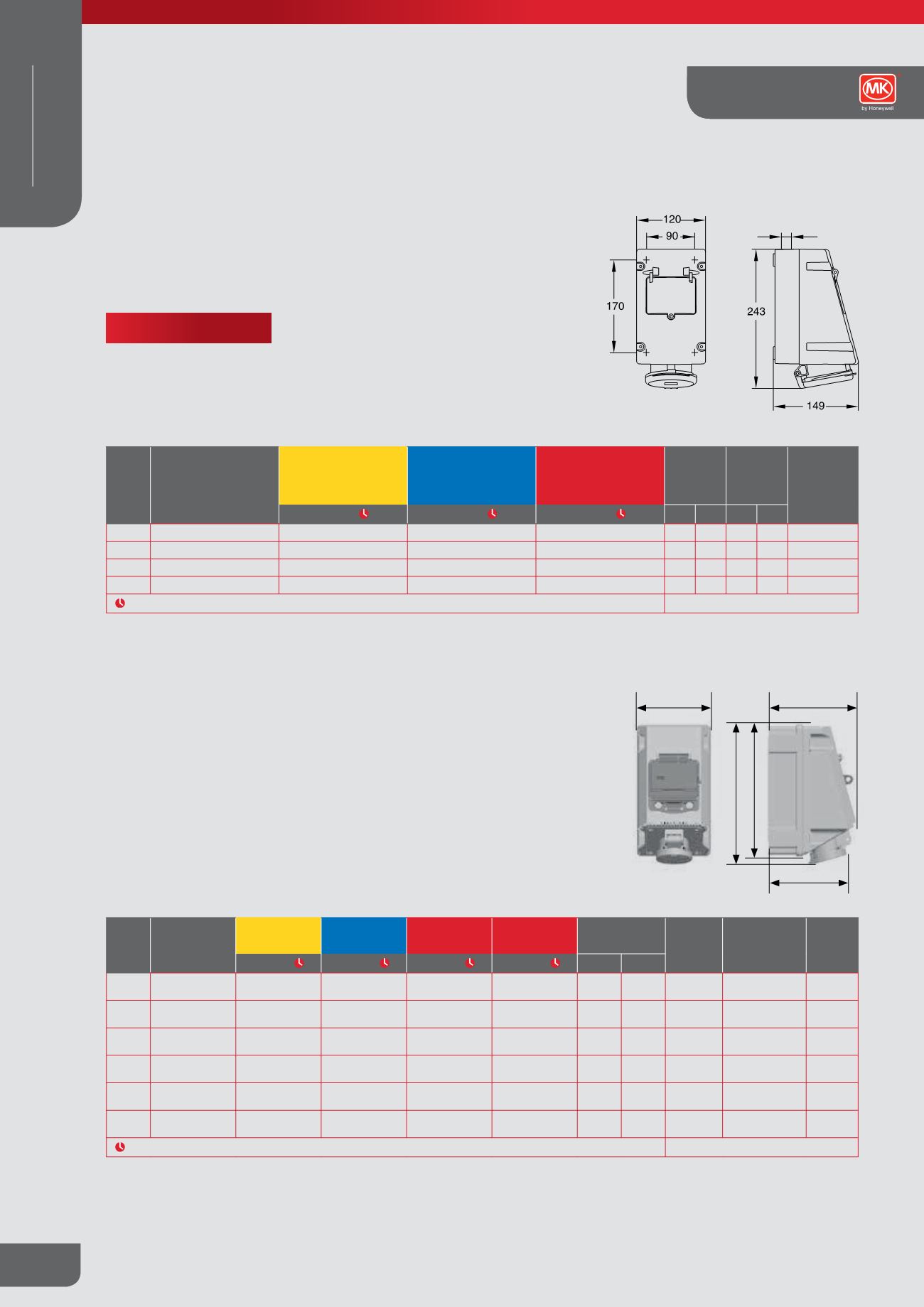

MK Electric Catalogue No. 49

568 / 759

568
WIRING DEVICES
INGRESS PROTECTEDSocket Outlets
Single Pre-wired with 30mA RCD
16 and 32 Amp
Ø25
AMPS PIN.
CONFIGURATION
100-130V
50-60HZ
200-250V
50-60HZ
200/346-240/415V
50-60HZ
RCD
TERMINAL
CAPACITY*
MM2
EARTH
TERMINAL
CAPACITY*
MM2
CABLE ENTRY
KNOCKOUTS
LIST NO LIST NO LIST NO MIN MAX MIN MAX
16A 2P+E K13413YEL 4 1.5 35 2.5 25 2 x Ø25 top
16A 3P+E K13415RED 6 1.5 35 2.5 25 2 x Ø25 top
16A 3P+N+E K13416RED 6 1.5 35 2.5 25 2 x Ø25 top
32A 3P+E K13434RED 6 2.5 35 2.5 25 2 x Ø25 top
Earth Hour Position *Solid or Stranded conductors
IP44 SPLASHPROOF
AMPS PIN.
CONFIGURATION
100-130V
50-60HZ
200-250V
50-60HZ
380-415V
50-60HZ
200/346-240/415V
50-60HZ
DIMENSIONS
IN MM
TERMINAL
CAPACITY*
MM 2
CABLE ENTRY
KNOCKOUTS
FIXING
CENTRES
LIST NO LIST NO LIST NO LIST NO A B
16A 2P+E K73413YEL 4 K73414BLU 6 228 128.5 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
16A 3P+E K73415RED 6 228 135.5 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
16A 3P+N+E K73416RED 6 229 142.5 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
32A 2P+E K73433BLU 6 235.5 148 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
32A 3P+E K73434RED 6 235.5 148 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
32A 3P+N+E K73435RED 6 235.5 154.5 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
Earth Hour Position *Solid or Stranded conductors
Commando Combi™
Technical
245
120 144.5
B
A
