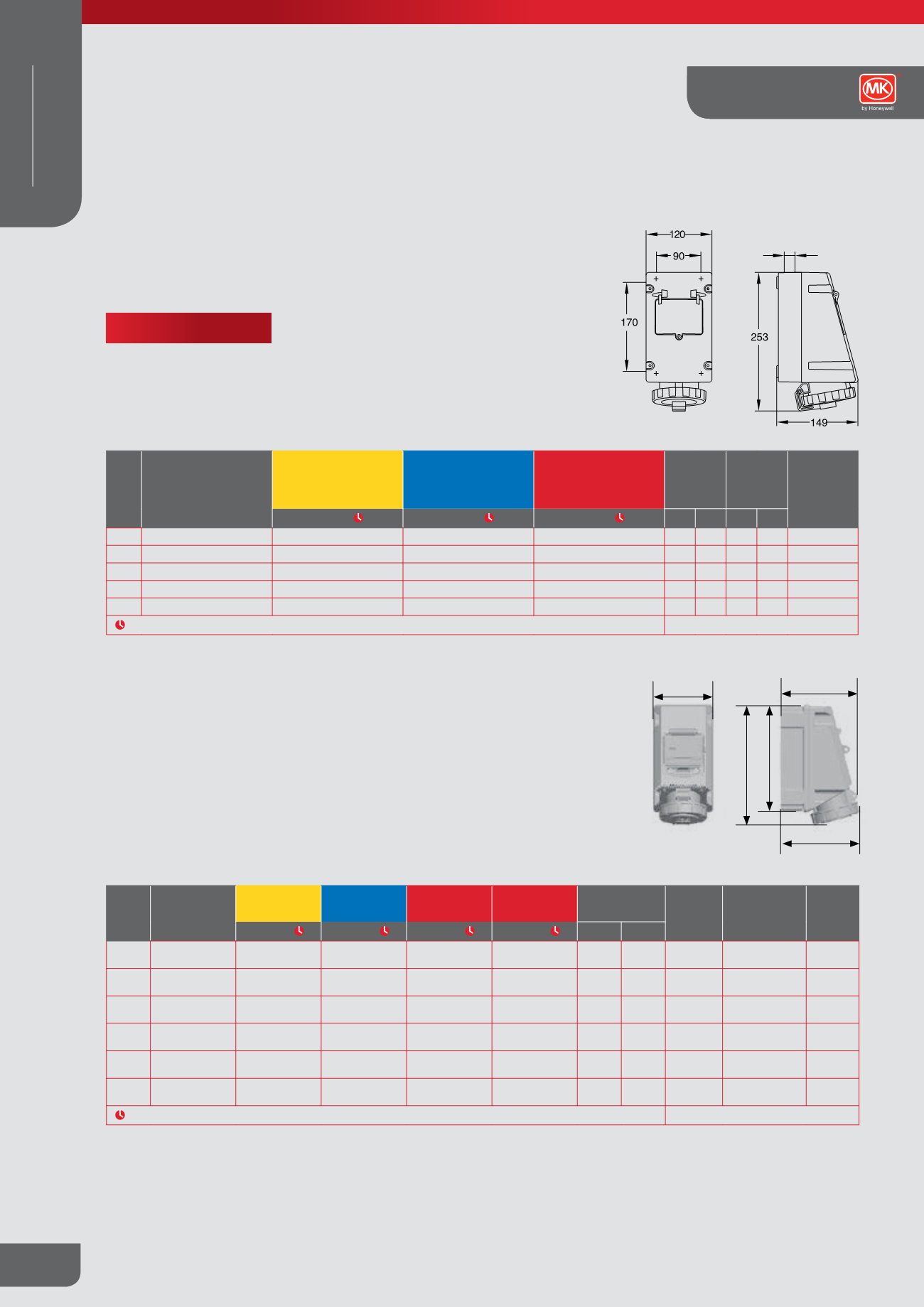

MK Electric Catalogue No. 49

570 / 759

570
WIRING DEVICES
INGRESS PROTECTEDSwitchsocket Outlets
Interlocked Pre-wired with 30mA RCD
16 and 32 Amp
AMPS PIN.
CONFIGURATION
100-130V
50-60HZ
200-250V
50-60HZ
200/346-240/415V
50-60HZ
RCD
TERMINAL
CAPACITY*
MM2
EARTH
TERMINAL
CAPACITY*
MM2
CABLE ENTRY
KNOCKOUTS
LIST NO LIST NO LIST NO MIN MAX MIN MAX
16 2P+E K13713YEL 6 1.5 35 2.5 25 2 x Ø25 top
16 3P+E K13715RED 6 1.5 35 2.5 25 2 x Ø25 top
16 3P+N+E K13716RED 6 1.5 35 2.5 25 2 x Ø25 top
32 2P+E K13733BLU 6 2.5 35 2.5 25 2 x Ø25 top
32 3P+E K13734RED 6 2.5 35 2.5 25 2 x Ø25 top
Earth Hour Position *Solid or Stranded conductors
IP67 WATERTIGHT
AMPS PIN.
CONFIGURATION
100-130V
50-60HZ
200-250V
50-60HZ
380-415V
50-60HZ
200/346-240/415V
50-60HZ
DIMENSIONS
IN MM
TERMINAL
CAPACITY*
MM 2
CABLE ENTRY
KNOCKOUTS
FIXING
CENTRES
LIST NO LIST NO LIST NO LIST NO A B
16A 2P+E K73713YEL 4 K73714BLU 6 233 135 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
16A 3P+E K73717BLU 9 K73715RED 6 233 141 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
16A 3P+N+E K73716RED 6 233 147 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
32A 2P+E K73718YEL 4 K73733BLU 6 241 153 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
32A 3P+E K73736BLU 9 K73734RED 6 241 153 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
32A 3P+N+E K73735RED 6 241 159 1.5-10 Ø20/25+Ø25/32top and bottom 108×165
Earth Hour Position *Solid or Stranded conductors
Ø25
Commando Combi™
Technical
215
120 144.5
B
A
