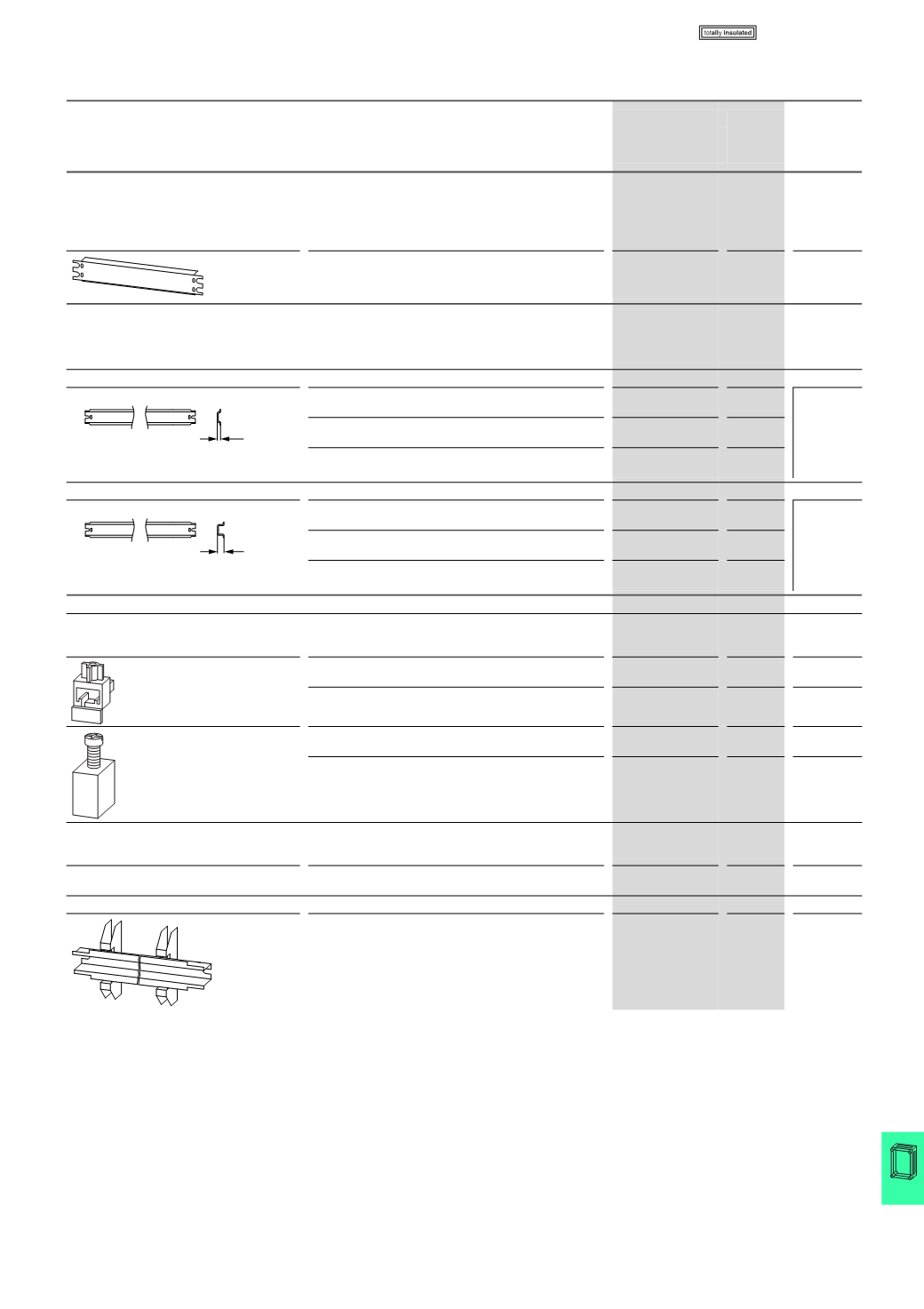

CI insulated enclosures
Mounting systems
2010 CA08103002Z-EN
Basic enclosures 20/27
Mounting systemsBasicenclosures
Part no.
Article no.
Price
See price
list
Std. pack
For use with
Module mounting rail
• Useful length 330 mm for enclosure dimension 375 mm
• Galvanized steel, 3 mm thick
• Including fixing screws
Horizontal CI43 CI44 CI45 CI48
Vertical CI44
ML4
041069
10 off
Mounting rails according to IEC/EN 60715
• Galvanized sheet steel
• Including 2 captive fixing screws
Height 7.5 mm
Useful length 145 mm for enclosure dimension 187.5 mm CL2
029064
20 off
Useful length 207 mm for enclosure dimension 250 mm CL3
033810
Useful length 332 mm for enclosure dimension 375 mm CL4
038556
Height 15 mm
Useful length 145 mm for enclosure dimension 187.5 mm CL2-15
031437
10 off
Useful length 207 mm for enclosure dimension 250 mm CL3-15
036183
Useful length 332 mm for enclosure dimension 375 mm CL4-15
040929
Accessories for mounting systems
Spacers
• For raising the mounting systems
• (4 off required for mounting plate, 2 off required for mounting rail)
by 25 mm HS25-CI
002291
25 off
by 50 mm HS50-CI
002292
25 off
by 10 mm ADT200-190
002289
10 off
by 15 mm ADT125-110
002290
10 off
Captive screw
• For fixing the mounting systems
• Spare parts
– Mounting plates, pre-drilled mounting plates, mounting rails,
module mounting rails
UBS4.8
002288
25 off
Mounting rail support
CL4-15
Weight without TS… ≦ 4 kg,
with TS… ≦ 10 kg,
without TS… with HS25… ≦ 3 kg,
without TS… with HS50… ≦ 1.5 kg
TSCL4-15
098480
10 off
7,5
15
CI..., HS...-CI HPL20027EN
