20/28 CI insulated enclosures
Fitting of meters
2010 CA08103002Z-EN
Basic enclosures
BasicenclosuresFitting ofmeters
For use with Part no.
Article no.
Price
See price
list
Std. pack

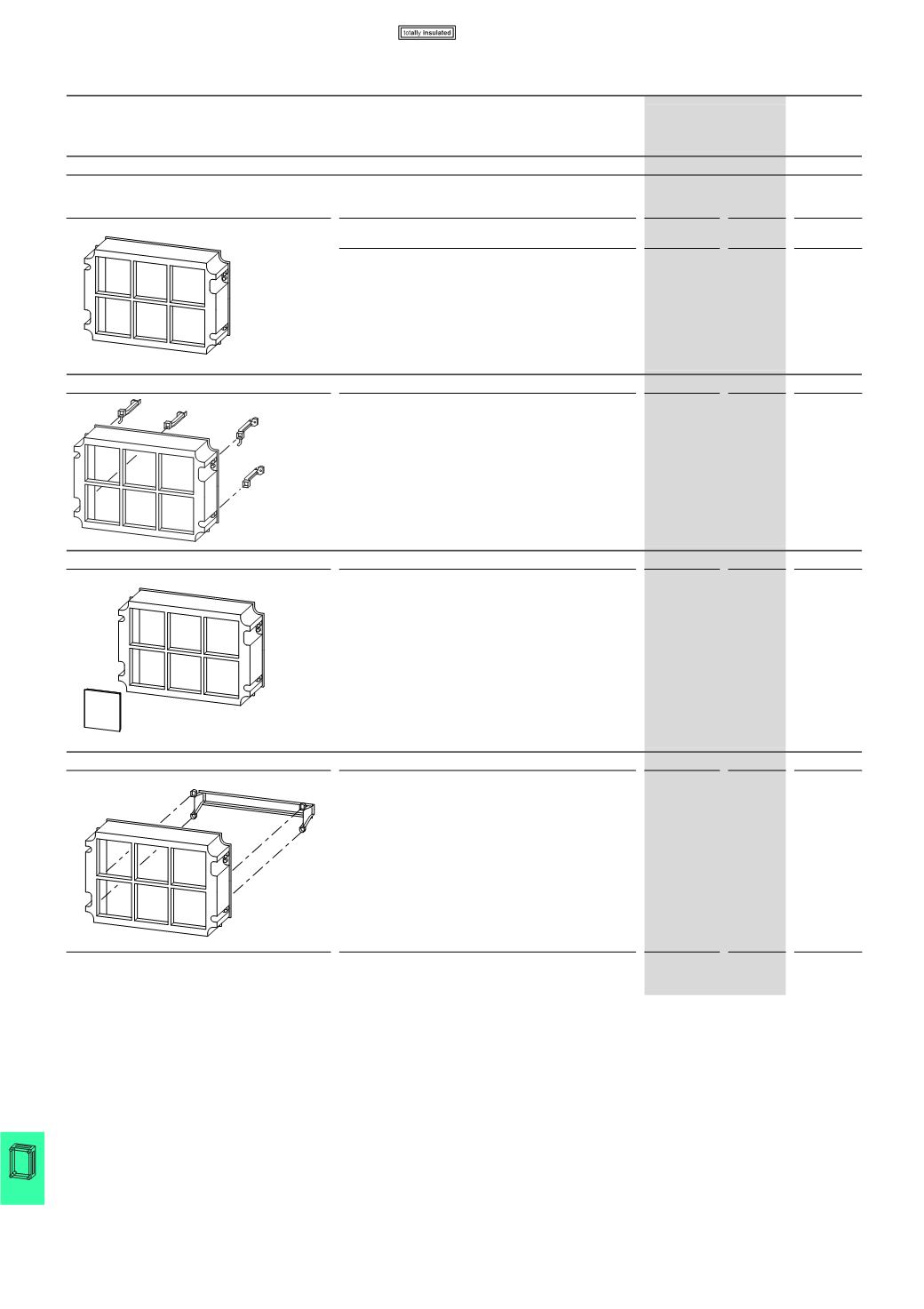

Meter covers
In CI43E-200, CI44E-250 enclosures
For up to six 96 × 96 mm snap-on metering devices.
The meter shroud is secured using AH-GA support brackets.
CI43E-200, CI44E-200 enclosures GA-MS-I43
053502
1 off
CI44E-250 enclosure GA-MS-I44
055875
1 off
Set of support brackets
For meter and protective shrouds
(order meter shroud GA-MS-I43 separately).
Each set consists 4 brackets.
AH-GA
002305
10 off
Retaining frame
To cover unused spaces:
Also required as an adapter with snap-on 72 × 72 mm meters
and when fitting PKZM0 (voltmeters) as well as T0-...
(meter changeover switch).
(Order GA-MS-I43 meter shroud separately)
HBA-4344
002316
10 off
Fixing kits
For mounting up to two PKZM0, T0
Fitting parallel to 250 mm side of the enclosure.
(Order GA-MS-I43 meter shroud separately)
BFS-PT3
002317
5 off
For mounting up to three PKZM0, T0
Fitting parallel to 375 mm side of the enclosure.
(Order GA-MS-I43 meter shroud separately)
BFS-PT4
002318
5 off
GA...I..., AH-GA, HBA-..., BFS-... HPL20028EN
