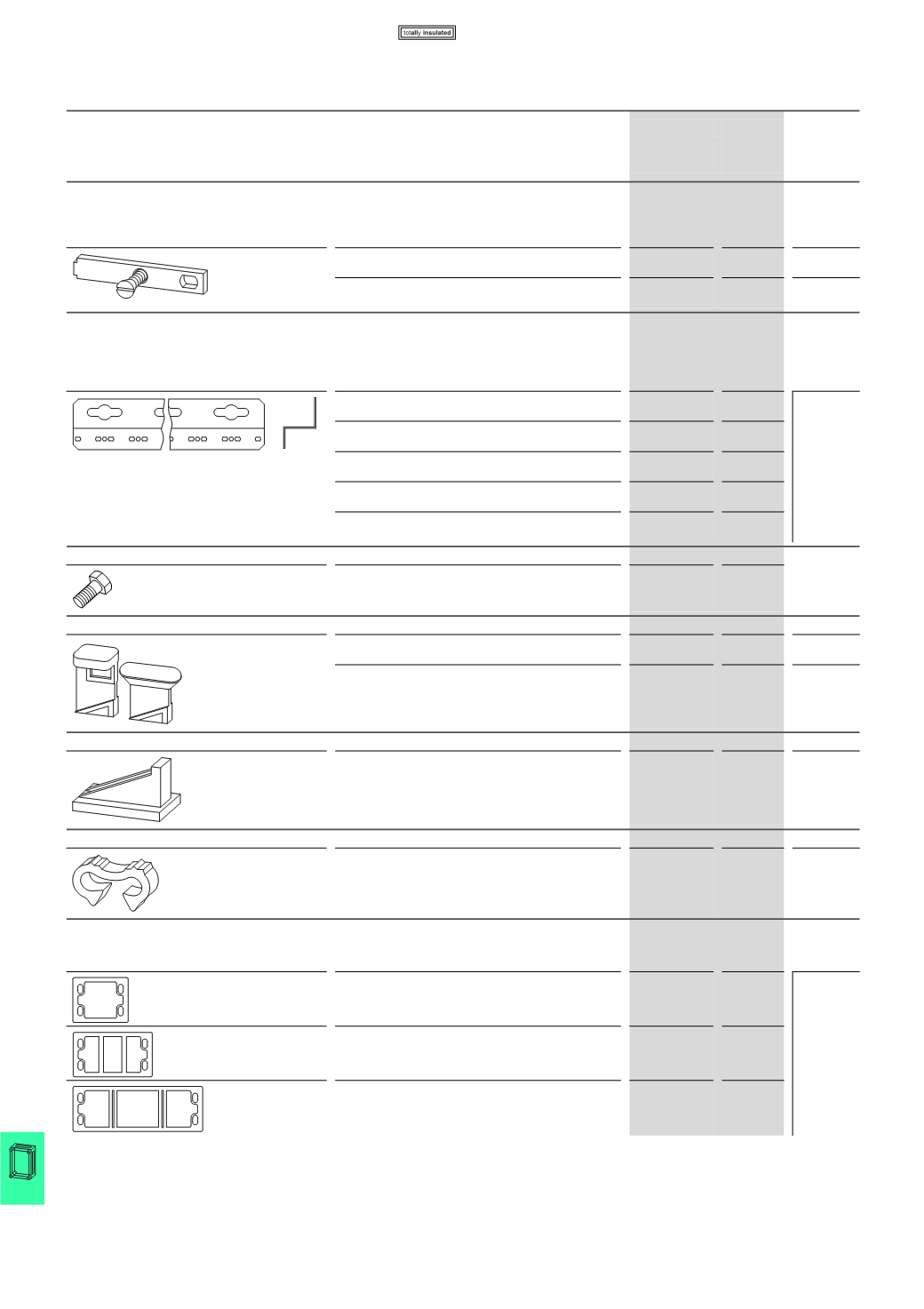

Eaton Industrial Switchgear - Xboard Optimal switchgear enclosure

20/30

CI insulated enclosures

Accessories for enclosure assembly

2010

CA08103002Z-EN

www.eaton.com

Basic enclosures

Part no.

Article no.

Price

See price

list

Std. pack

For use with

Fixing strap kits

•

For securing CI enclosures directly to the wall

•

For max. 4 CI43... enclosures

Each set contains 4 straps.

BL-CI

036168

off

Steel type V2A

Each set contains 4 straps.

BL-CI-VA

038541

off

Wall fixing bracket

•

For securing CI enclosures directly to the wall with a clearance of 50 mm

•

Fit one wall fixing bracket to every second enclosure across the width, for transport purposes add more brackets at

the bottom

Section length 2125 mm, cut to fit.

W16/32

090146

off

Max. 2 × CI43 one above the other

W4/8

048755

Max. 2 × CI44 one above the other

W6/12

051128

Max. 4 × CI43 one above the other

W8/16

053501

Max. 5 × CI43 one above the other

W10/20

055874

Fixing screw

For securing CI enclosures to wall fixing brackets W...

For fixing CI enclosures on WS..., WW... profiles

LT284-M6X20-C

050325

100

off

Coupling piece

Enclosure assembly and flange connection,

K-CI required

VS-CI

002315

100

off

For attatching gland plates,

K-CI required

VS-KS-CI

038460

off

Wedge

With VS-CI or VS-KS-CI for enclosure assembly and

attaching flanges and gland plates

K-CI

002314

100

off

Bracket

Enclosure assemblies, enclosure dimension 375 mm

KD4-CI

002313

off

Gaskets

For enclosure assembly

Enclosure dimension 187.5 mm

D2-CI

002310

off

Enclosure dimension 250 mm

D3-CI

002311

Enclosure dimension 375 mm

D4-CI

002312

BL...CI, W..., LT284..., VS...CI, K...CI, D...CI

HPL20030EN
