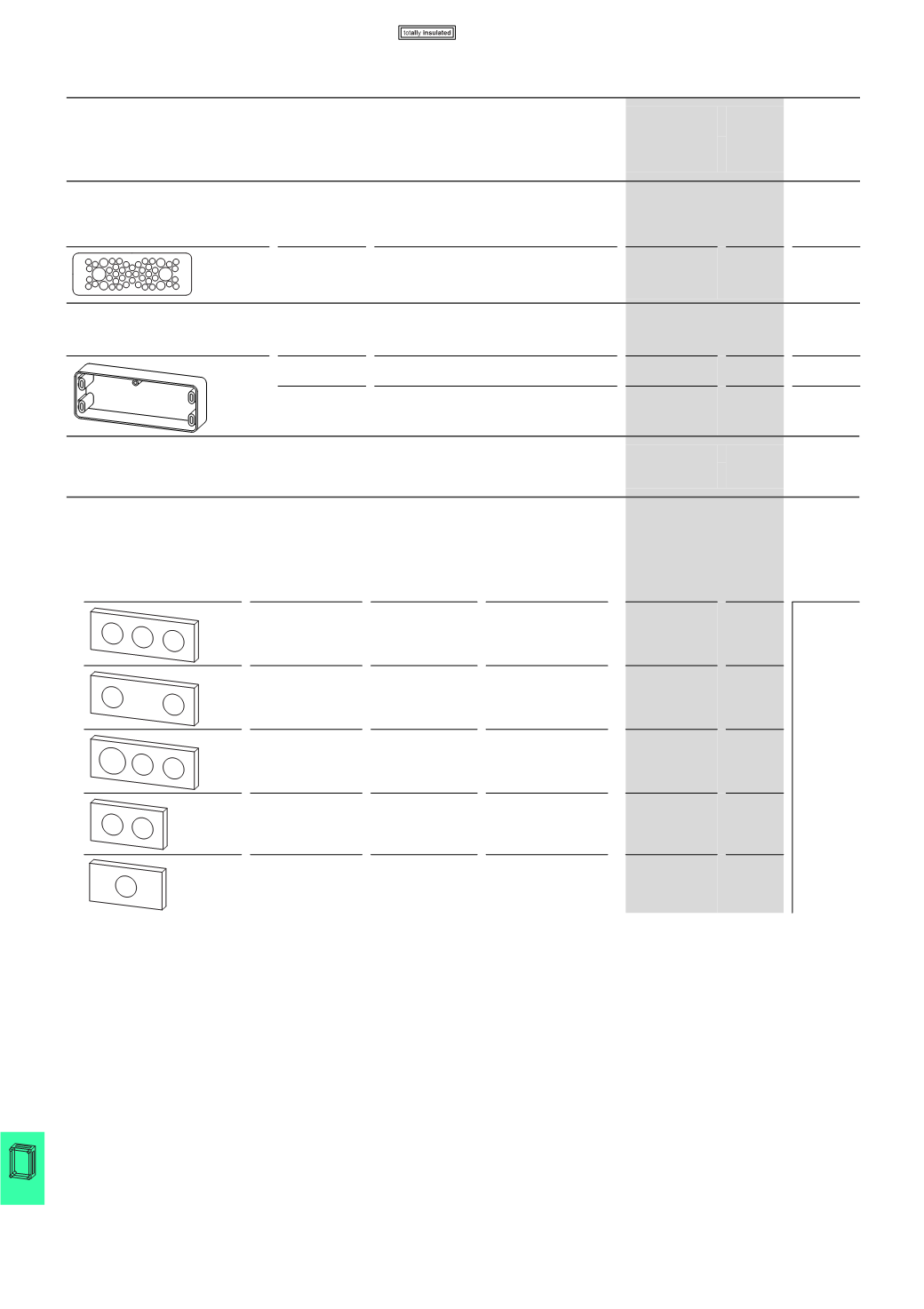

Eaton Industrial Switchgear - Xboard Optimal switchgear enclosure

28 / 140

20/24 CI insulated enclosures
Accessories
2010 CA08103002Z-EN
Basic enclosures
External
diameter of cable
For use with Part no.
Article no.
Price
See price
list
Std. pack
mm
Sponge-rubber flange IP54
• Protection type IP54
• For enclosure dimension 375 mm
42 x 10 - 13
4 x 15 - 19
2 x 20 - 30
NYY, NYM 3 x 1.5 mm2 - 5 x 2.5 mm2
NYY, NYM 4 x 4 mm2 - 5 x 10 mm2
NYY, NYM 4 x 10 mm2 - 4 x 50 mm2
FL4-D
044879
10 off
Spacers
• To enlarge the connection compartment by 25 mm
– For fitting to enclosure side,
250 mm for FL3-... flange
ZRF3
067734
2 off
– For fitting to enclosure side,
375 mm for FL4-... flange
ZRF4
070107
2 off
For use with
enclosure size
Plug-in units Part no.
Article no.
Price
See price
list
Std. pack
Number of openings For use with
Flanges prepared for Schuko or high-voltage sockets up to 32 A
• Flange non-transparent RAL7032
• Captive, sponge-rubber gaskets
• Quick mounting using wedge lock fasteners (included as standard)
• Flanges milled out and predrilled for standardized 5-pole plug-in units
• Order plug-in units separately, e.g. from Mennekes
• Protection type IP44
375 mm 3 Schuko sockets 16 A FL4-STV3/16A
138569
2 off
375 mm 2 Schuko sockets 16 A FL4-STV2/16A
138570
375 mm 3 1 x CEE 32 A
2 x Schuko sockets 16 A
FL4-STV3/16-32A
138571
250 mm 2 Schuko sockets 16 A FL3-STV2/16A
138572
250 mm 1 1 x CEE 16 A FL3-STV/1/16A
138573
FL..., ZRF..., FL...-STV... HPL20024EN
