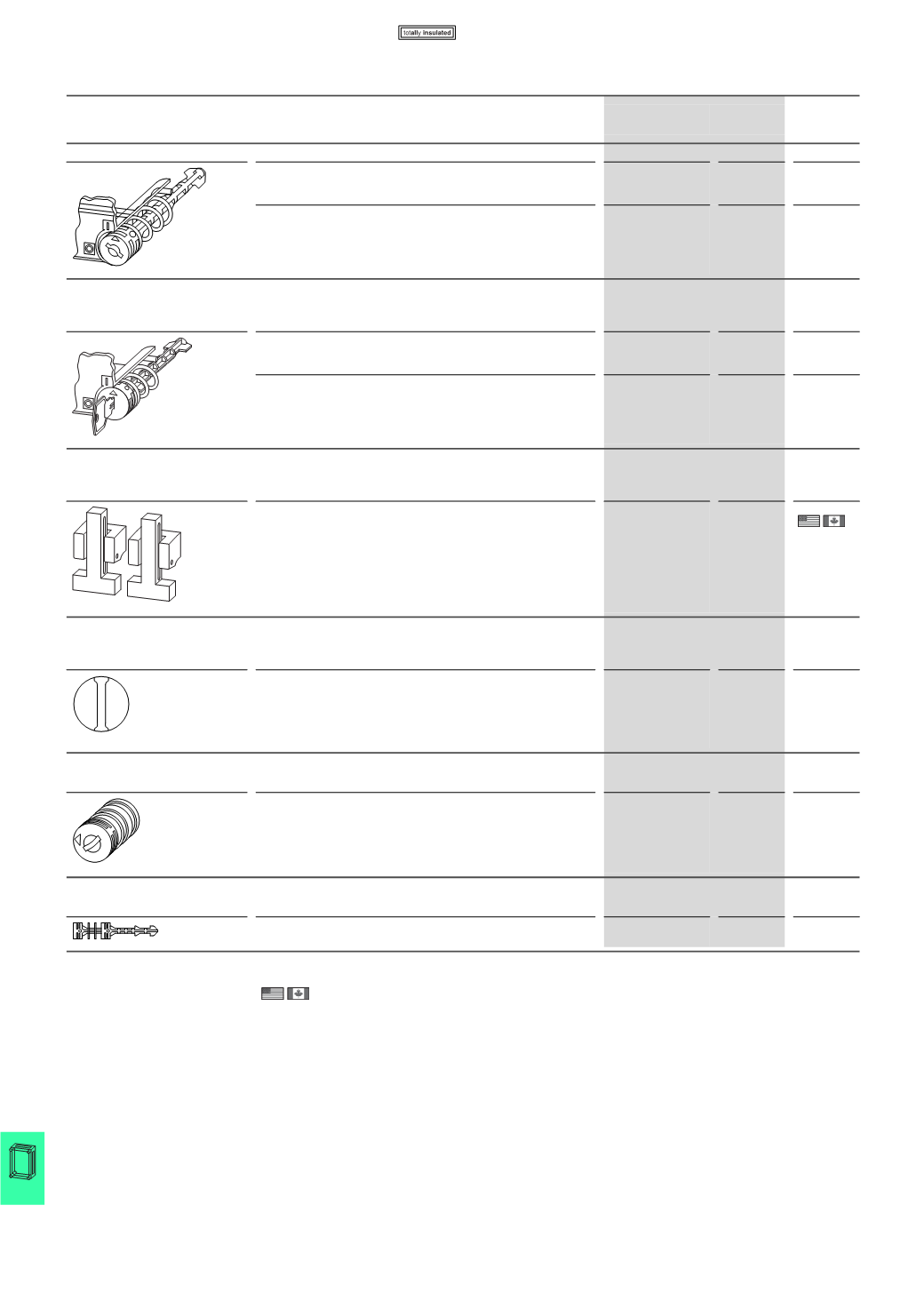

Eaton Industrial Switchgear - Xboard Optimal switchgear enclosure

26 / 140

20/22 CI insulated enclosures
Accessories
2010 CA08103002Z-EN
Basic enclosures
BasicenclosuresAccessories
For use with Part no.
Article no.
Price
See price list
Std. pack
Cover fasteners for CI enclosures
CI23: 4 off
CI43: 4 off
CI44: 4 off
DV125-CI
001923
10 off
CI23: 4 off
CI43: 4 off
CI44: 4 off
CI45: 4 off
CI48: 6 off
DV150-250-CI
001924
10 off
Cover fasteners with cylinder lock for CI enclosures1)
• Lockable cover fasteners with cylinder lock, uniform locking
• Key
CI23... max. 4 off
CI43... max. 4 off
CI44... max. 4 off
DVZ125-CI
133100
2 off
CI23... max. 4 off
CI43... max. 4 off
CI44... max. 4 off
CI45... max. 4 off
CI48... max. 6 off
DVZ150-250-CI
133101
2 off
Set of cover hinges
• For CI...E, CI...X individual enclosures
• For CI... panel enclosure on the sides if a flange is not installed
CI23: 1 set
CI43: 1 set
CI44: 1 set
CI45: 1 set
CI48: 1 set
Each set consists of 2 hinges.
DSCH-CI
034224
5 off
Handgrip
• Quick-release fastener for opening enclosures manually
• Higher cover in conjunction with the extension for the handle
CI23(…)-125, 150: 4 off
CI43(…)-125, 150: 4 off
CI44(…)-125, 150: 4 off
HG-CI
046382
20 off
Extension for handle
• Can be fitted to cover
CI43-200/(D200-CI43): 4 off
CI44-200/(D200-CI44): 4 off
CI48-200/(D200-CI48): 6 off
VHG50-CI
044880
8 off
Sealing kit
• At the top edge of cover with D200-...
Use one set diagonally per enclosure.
One set consists of 2 sealable locks.
PLV200-CI
044881
5 off
Notes 1)For sealing, use at least one cover fastener DV125-CI or DV150-250-CI.
Information relevant for export to North America
Product Standards UL 508A; CSA-C22.2 No.94; IEC/
EN 60529; CE marking
UL File No. E54120, E337418
UL CCN NITW
CSA File No. 27130
CSA Class No. 3211-07
NA Certification UL Listed, CSA certified
Specially designed for NA Yes
Suitable for Industrial Control Panels
Degree of Protection IEC: IP65; UL/CSA Types 1, 12, 13, 4X,
indoor only
D...-CI HPL20022EN
