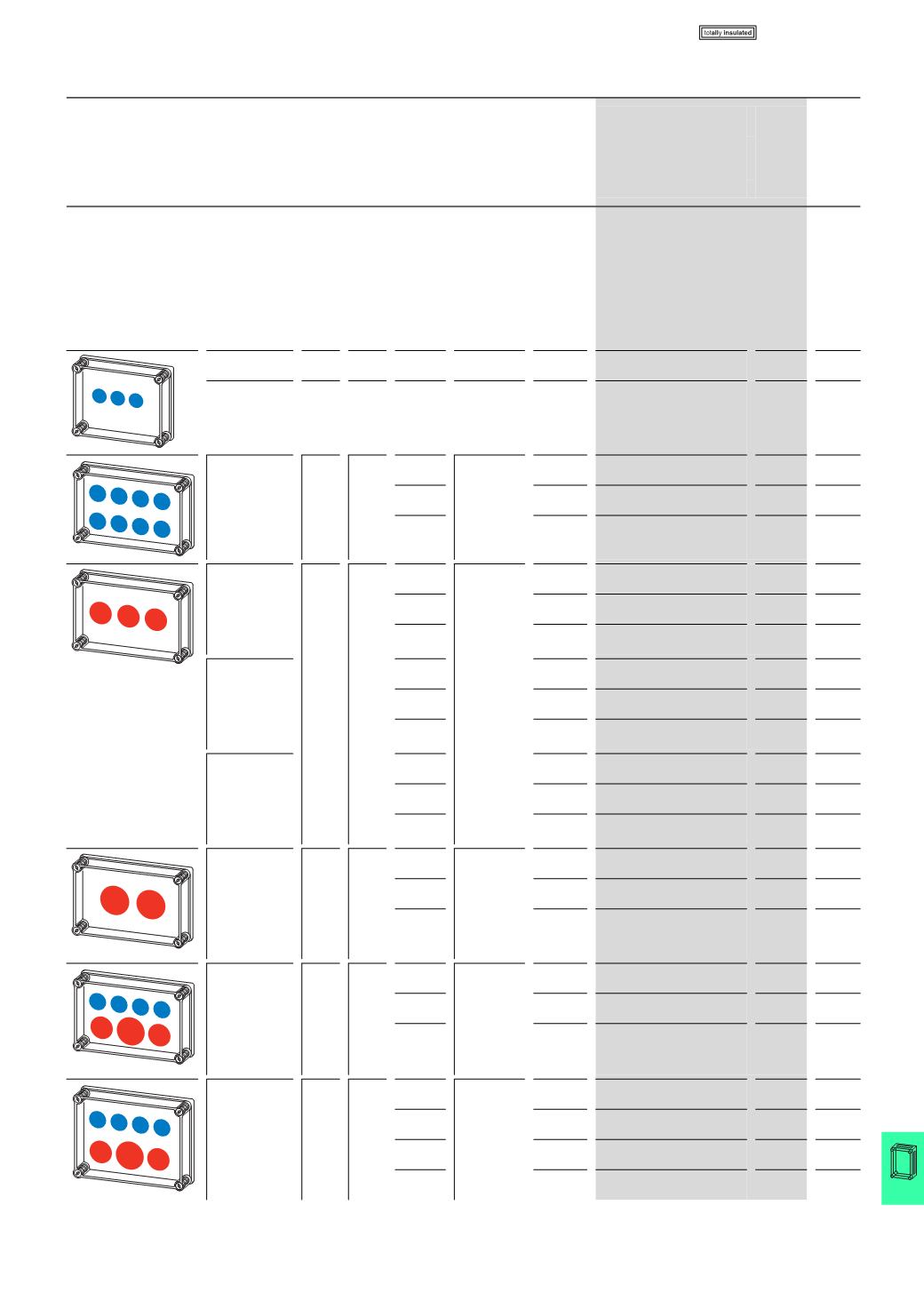

Eaton Industrial Switchgear - Xboard Optimal switchgear enclosure

23 / 140

CI insulated enclosures
Enclosure cover
2010 CA08103002Z-EN
Basic enclosures 20/19
Dimensions Mounting
depth
Plug-in units For use with Part no.
Article no.
Price
See price
list
Std.
pack
For use with Width Height Number of
openings
mm mm mm
Enclosure cover prepared for 16 to 125 A plug-in units
• For individual enclosures or in distribution boards
• For distribution board applications observe the characteristic
data of the other apparatus.
• Cover with knockouts for standardized 5-pole plug-in units
• Plug-in units not included as standard
• Order plug-in units separately, e.g. from Mennekes
• Sealable cover fasteners
• For retrofitting for various lockable covers, order also DVZ...-CI
• Protection type IP44, gasket
Schuko socket
16 A
187.5 250 125 3 U-CI23... D125-CI23-RAL7032-STV3/16A
138545
4 off
Schuko socket
16 A
187.5 250 150 3 U-CI23... D150-CI23-RAL7032-STV3/16A
138546
4 off
Schuko socket
16 A
375 250 125 8 U-CI43... D125-CI43-RAL7032-STV8/16A
138547
2 off
150 U-CI43... D150-CI43-RAL7032-STV8/16A
138548
2 off
200 U-CI43... D200-CI43-RAL7032-STV8/16A
138549
2 off
CEE 16 A 375 250 125 3 U-CI43... D125-CI43-RAL7032-STV3/16A
138550
2 off
150 U-CI43... D150-CI43-RAL7032-STV3/16A
138551
2 off
200 U-CI43... D200-CI43-RAL7032-STV3/16A
138552
2 off
CEE 32 A 125 U-CI43... D125-CI43-RAL7032-STV3/32A
138553
2 off
150 U-CI43... D150-CI43-RAL7032-STV3/32A
138554
2 off
200 U-CI43... D200-CI43-RAL7032-STV3/32A
138555
2 off
CEE 63 A 125 U-CI43... D125-CI43-RAL7032-STV3/63A
138556
2 off
150 U-CI43... D150-CI43-RAL7032-STV3/63A
138557
2 off
200 U-CI43... D200-CI43-RAL7032-STV3/63A
138558
2 off
CEE 125 A 375 250 125 2 U-CI43... D125-CI43-RAL7032-STV2/125A
138559
2 off
150 U-CI43... D150-CI43-RAL7032-STV2/125A
138560
2 off
200 U-CI43... D200-CI43-RAL7032-STV2/125A
138561
2 off
4 x Schuko
sockets 16 A
2 x CEE 16 A
1 CEE 32 A
375 250 125 7 U-CI43... D125-CI43-RAL7032-STV7/16-
32A
2 off
150 U-CI43... D150-CI43-RAL7032-STV7/16-
32A
2 off
200 U-CI43... D200-CI43-RAL7032-STV7/16-
32A
138564
2 off
4 x Schuko
sockets 16 A
2 x CEE 16 A
1 CEE 32 A
375 375 125 7 U-CI44... D125-CI44-RAL7032-STV7/16-
32A
2 off
150 U-CI44... D150-CI44-RAL7032-STV7/16-
32A 2 off
200 U-CI44... D200-CI44-RAL7032-STV7/16-
32A 2 off
250 U-CI44... D250-CI44-RAL7032-STV7/16-
32A 2 off
D...-CI...-RAL7032-STV... HPL20019EN
