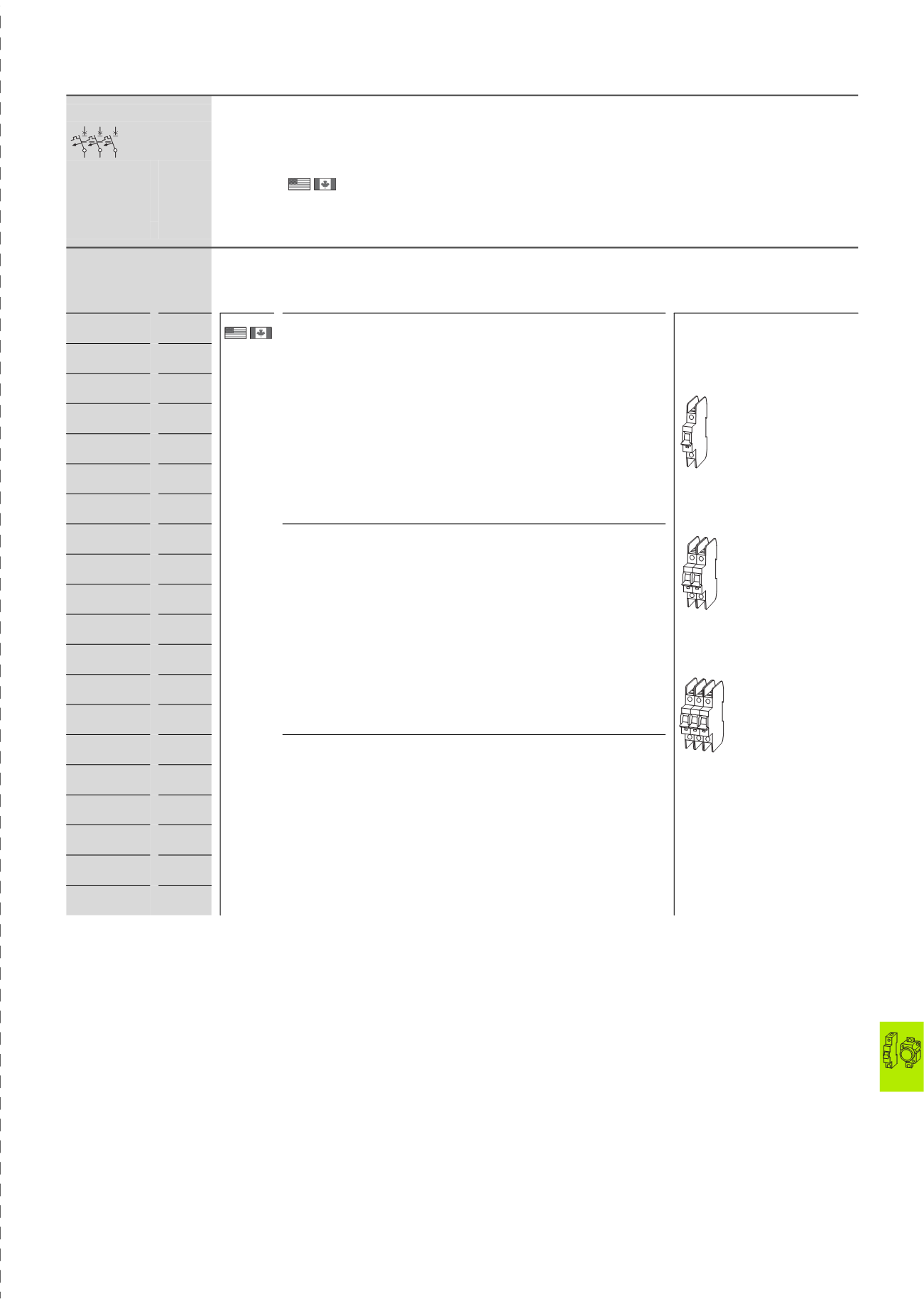

Circuit-breakers, fuses
Miniature circuit-breakers for North America
3 pole
Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to North America Notes
FAZ-C0.5/3-RT1)
102277
1 off 1)
Product Standards IEC/EN 60947-2; UL 489;
CSA-C22.2 No. 5-09; CE marking
UL File No. E235139
UL CCN DIVQ
CSA File No. 204453
CSA Class No. 1432-01
NA Certification UL Listed, CSA certified
Suitable for Feeder circuits, branch circuits
Current Limiting CB ✓
Max. Voltage Rating ≦ 32 A
1 pole: 277 V AC, 48 V DC
2 pole: 480 Y/277 V AC, 96 V DC
3 pole: 480 Y/277 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
Accessories￫19/40
1 pole
Depth 75 mm
Width 17.7 mm
2 pole
Depth 75 mm
Width 35.4 mm
3 pole
Depth 75 mm
Width 53.1 mm
FAZ-C1/3-RT1)
102278
FAZ-C1.5/3-RT1)
102279
FAZ-C2/3-RT1)
102280
FAZ-C3/3-RT1)
102281
FAZ-C4/3-RT1)
102282
FAZ-C5/3-RT1)
102283
FAZ-C6/3-RT1)
102284
2)
Product Standards IEC/EN 60947-2; UL 489;
CSA-C22.2 No. 5-09; CE marking
UL File No. E235139
UL CCN DIVQ
CSA File No. 204453
CSA Class No. 1432-01
NA Certification UL Listed, CSA certified
Suitable for Feeder circuits, branch circuits
Current Limiting CB ✓
Max. Voltage Rating > 32 A
1 pole: 240 V AC, 48 V DC
2 pole: 240 V AC, 96 V DC
3 pole: 240 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
FAZ-C7/3-RT1)
102285
FAZ-C8/3-RT1)
102286
FAZ-C10/3-RT 1)
102287
FAZ-C13/3-RT 1)
102288
FAZ-C15/3-RT 1)
102289
FAZ-C16/3-RT 1)
102290
FAZ-C20/3-RT 1)
102291
FAZ-RT can also be used where FAZ Supplementary Protectors to UL 1077 are
sufficient.
FAZ-C25/3-RT 1)
102292
FAZ-C30/3-RT 1)
102293
FAZ-C32/3-RT 1)
102294
FAZ-C35/3-RT 2)
102295
FAZ-C40/3-RT 2)
102296
1 3 5
2 4 6
19/37
FAZ-C...RT HPL19037EN
