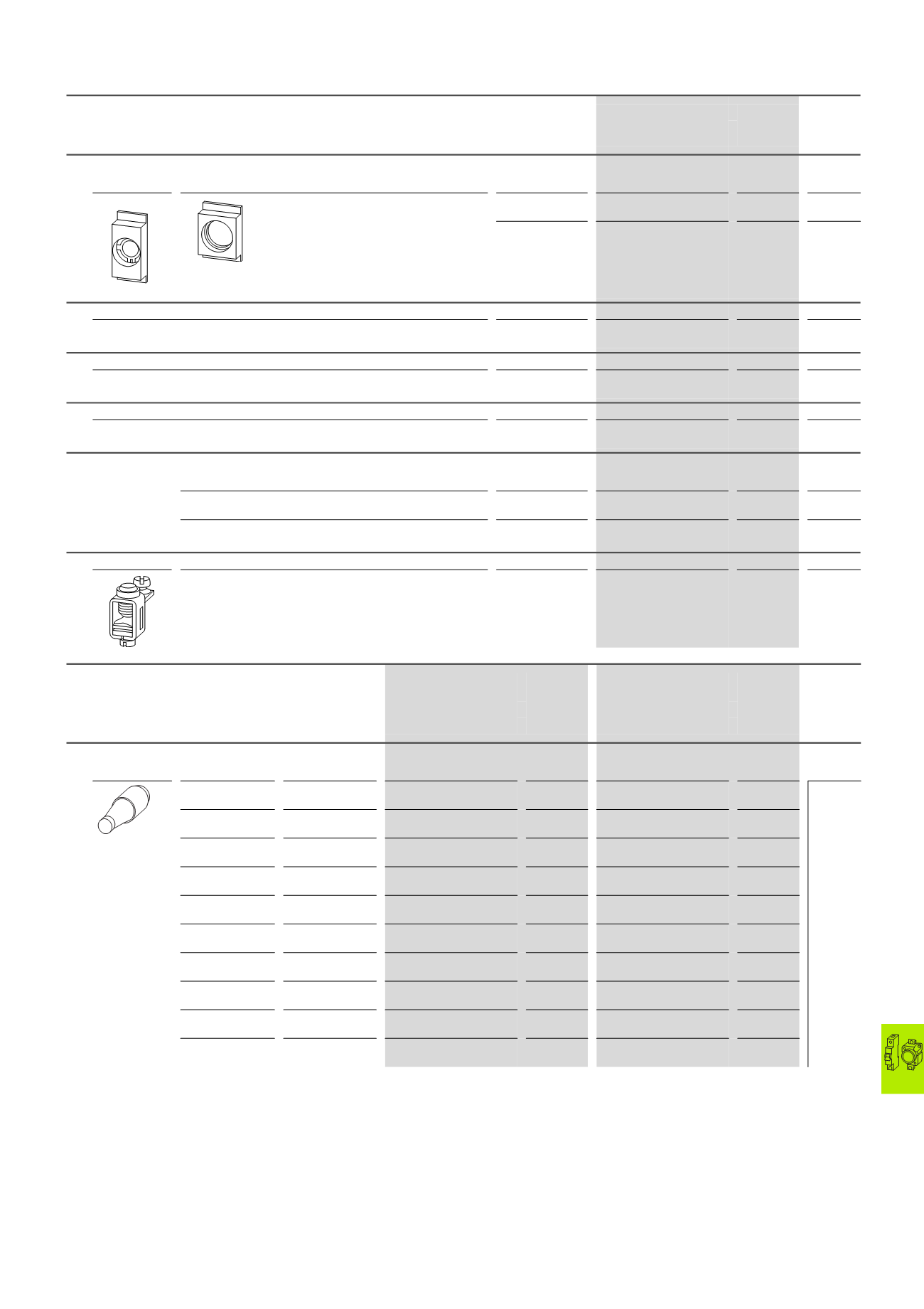

Mounting accessories, fuse linksMountingaccessories
For use with Part no.
Article no.
Price
See price
list
Std. pack
Covers for 1 pole fuse bases
Standard front dimension 45 mm
S…-1/… P-E27
090928
10 off
S…-1/… P-E33
093301
10 off
Transparent shroud
With cable entry knockouts top and bottom – H-S27-1
029118
10 off
Busbar connector 63 A
For fuse bases, 3 pole D0…/3 Z-SV-16/3P
271072
20 off
End cap
For busbar block Z-SV-16/3P Z-AK-16/2+3P
271070
10 off
Notched phase busbars, can be cut to desired length
For gauge ring system (gauge screw: /FORMP)
980 mm long, for max. 22 fuse bases,
Rated operational current 100 A
S27-1/C KS27
055248
5 off
960 mm long, for max. 18 fuse bases,
rated operational current 160 A
S33-1/C KS33
059994
5 off
Terminal
For gauge ring system (gauge screw: /FORMP)
For round conductor up to 35 mm2 or flat cable conductor 6 x 9 x 0.8
KS14 - KS33 K35-AB
064339
20 off
Rated operational
current
Fuse-
link
Part no.
Article no.
Utilization category gG (gL)
Price
See price
list
Part no.
Article no.
Utilization category DZ
Price
See price
list
Std. pack
Ie
A Size
Fuse links Z-D…/SE
Rated operating voltage 500 V AC/400 V DC
2 DII E27 Z-DII/SE-2A/GG
112125
Z-DII/SE-2A/DZ
112028
5 off
4 DII E27 Z-DII/SE-4A/GG
112126
Z-DII/SE-4A/DZ
112029
6 DII E27 Z-DII/SE-6A/GG
112127
Z-DII/SE-6A/DZ
112120
10 DII E27 Z-DII/SE-10A/GG
112128
Z-DII/SE-10A/DZ
112121
16 DII E27 Z-DII/SE-16A/GG
112129
Z-DII/SE-16A/DZ
112122
20 DII E27 Z-DII/SE-20A/GG
112130
Z-DII/SE-20A/DZ
112123
25 DII E27 Z-DII/SE-25A/GG
112131
Z-DII/SE-25A/DZ
112124
35 DIII E33 Z-DIII/SE-35A/GG
112135
Z-DIII/SE-35A/DZ
112132
50 DIII E33 Z-DIII/SE-50A/GG
112136
Z-DIII/SE-50A/DZ
112133
63 DIII E33 Z-DIII/SE-63A/GG
112137
Z-DIII/SE-63A/DZ
112134
Z-DII, Z-DIII HPL19043EN
