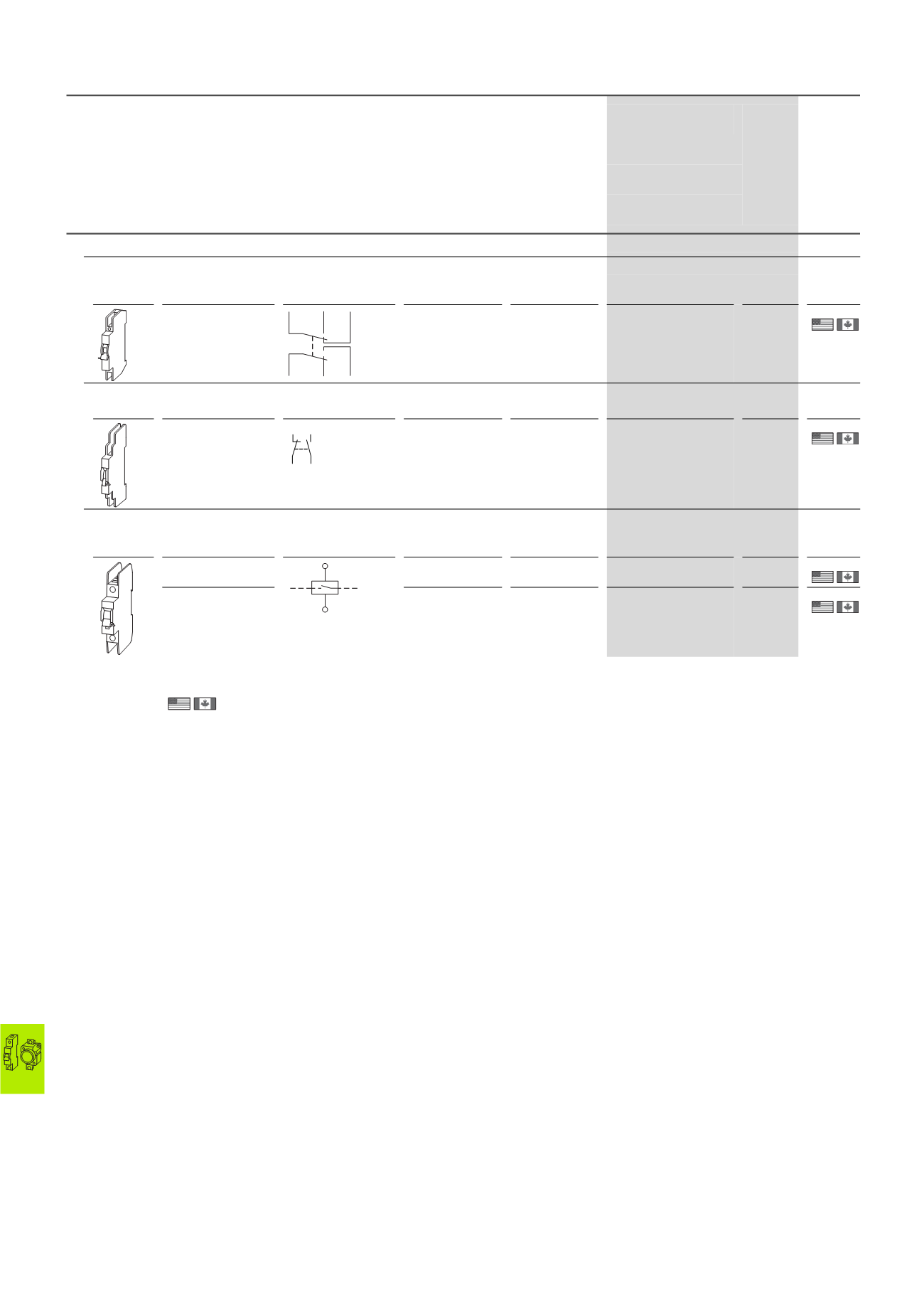

19/40 Circuit-breakers, fuses
Accessories for miniature circuit-breaker North America
2010 CA08103002Z-EN
Accessories forminiaturecircuit-breakerNorthAmerica
Contacts Contact sequences Space units
1 PLE = 18 mm
For use with Part no.
Article no.
Price
See price
list
Std. pack
C = Changeover
contact
N/O = normally open
contact
NC = normally closed
contact
Accessories for FAZ-NA, FAZ-RT
Tripping signal contact
• The function of one of the two changeover contacts can be changed from “auxiliary
contact” to “tripping signal contact”.
2 C 0.5 FAZ-NA
FAZ-RT
Z-NHK
248434
4 off
Auxiliary contacts
• Suitable for FAZ-NA > 480Y/277 V AC
1 N/O
1 NC
0.5 FAZ-NA
FAZ-RT
Z-IHK-NA
113895
1 off
Shunt releases
• Standard auxiliary contacts can be fitted in addition
• Position indicator red/green
– 1 FAZ-NA
FAZ-RT
FAZ-XAA-NA110-415VAC
102036
1 off
– 1 FAZ-NA
FAZ-RT
FAZ-XAA-NA12-110VAC
102037
1 off
Information relevant for export to North America
Product Standards IEC/EN 60898; UL 489; CSA-C22.2 No. 5-09; CE marking
UL File No. E257181
UL CCN DIHS, DIHS7
CSA File No. 204453
CSA Class No. 1437-01
NA Certification UL Listed, CSA certified
Degree of Protection IEC: IP20, UL/CSA Type: -
4.11
1.11 1.14 1.12
4.12/
4.14
4.14/
4.12
21 13
22 14
1
2
Z...HK..., FAZ-XAA-NA HPL19040EN
