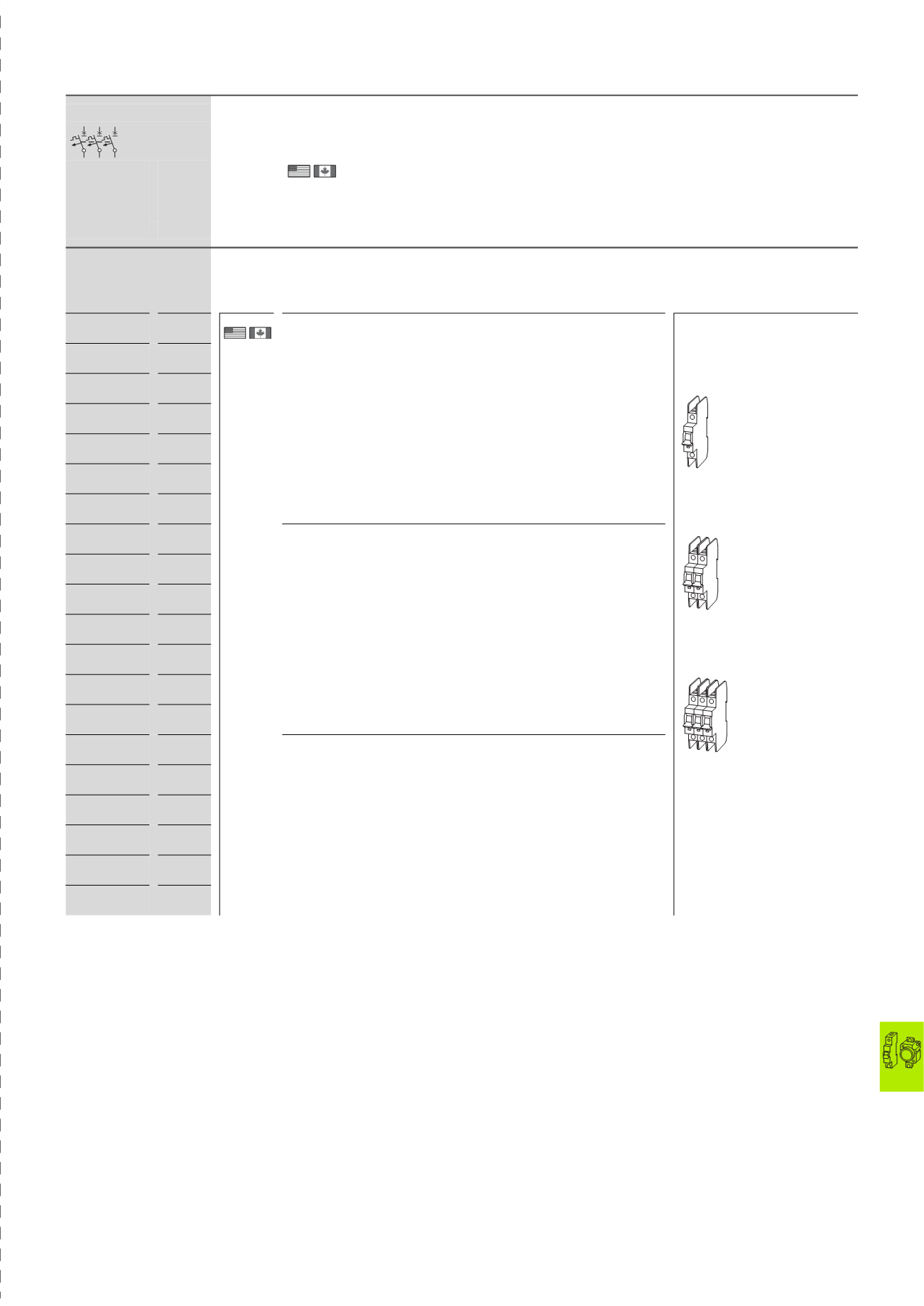

Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

493 / 543

2010 CA08103002Z-EN
Circuit-breakers, fuses
Miniature circuit-breakers for North America
3 pole
Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to North America Notes
FAZ-D0.5/3-RT1)
102297
1 off 1)
Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;
CE marking
UL File No. E235139
UL CCN DIVQ
CSA File No. 204453
CSA Class No. 1432-01
NA Certification UL Listed, CSA certified
Suitable for Feeder circuits, branch circuits
Current Limiting CB ✓
Max. Voltage Rating ≦ 32 A
1 pole: 277 V AC, 48 V DC
2 pole: 480 Y/277 V AC, 96 V DC
3 pole: 480 Y/277 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
Accessories￫19/40
1 pole
Depth 75 mm
Width 17.7 mm
2 pole
Depth 75 mm
Width 35.4 mm
3 pole
Depth 75 mm
Width 53.1 mm
FAZ-D1/3-RT1)
102298
FAZ-D1.5/3-RT1)
102299
FAZ-D2/3-RT1)
102300
FAZ-D3/3-RT1)
102301
FAZ-D4/3-RT1)
102302
FAZ-D5/3-RT1)
102303
FAZ-D6/3-RT1)
102304
2)
Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;
CE marking
UL File No. E235139
UL CCN DIVQ
CSA File No. 204453
CSA Class No. 1432-01
NA Certification UL Listed, CSA certified
Suitable for Feeder circuits, branch circuits
Current Limiting CB ✓
Max. Voltage Rating > 32 A
1 pole: 240 V AC, 48 V DC
2 pole: 240 V AC, 96 V DC
3 pole: 240 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
FAZ-D7/3-RT1)
102305
FAZ-D8/3-RT1)
102306
FAZ-D10/3-RT1)
102307
FAZ-D13/3-RT1)
102308
FAZ-D15/3-RT1)
102309
FAZ-D16/3-RT1)
102310
FAZ-D20/3-RT1)
102311
FAZ-RT can also be used where FAZ Supplementary Protectors to UL 1077 are
sufficient.
FAZ-D25/3-RT1)
102312
FAZ-D30/3-RT1)
102313
FAZ-D32/3-RT1)
102314
FAZ-D35/3-RT2)
102315
FAZ-D40/3-RT2)
102316
1 3 5
2 4 6
19/39
FAZ-D...RT HPL19039EN
