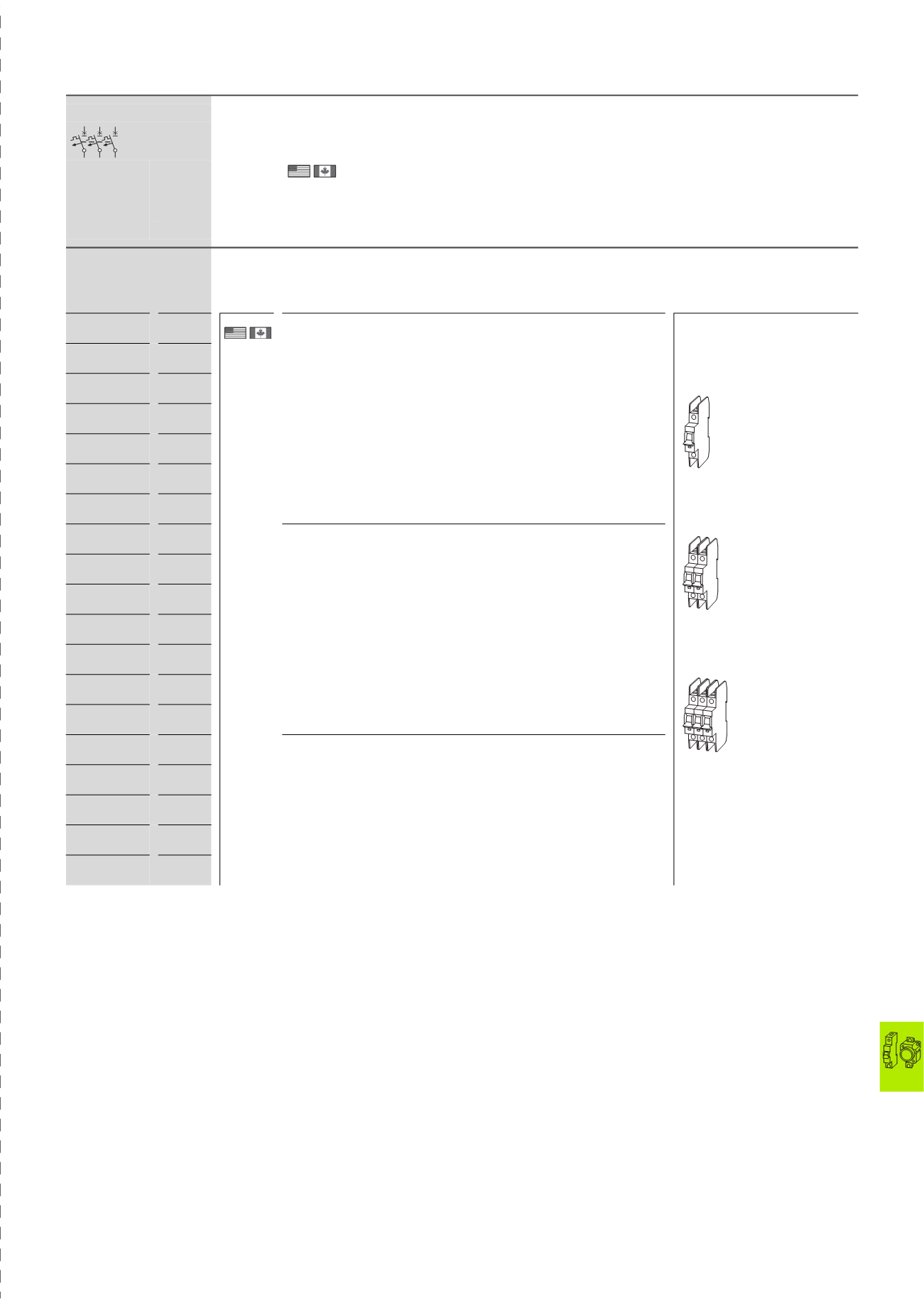

Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

489 / 543

2010 CA08103002Z-EN
Circuit-breakers, fuses
Miniature circuit-breakers for North America
3 pole
Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to North America Notes
FAZ-B1/3-RT1)
132769
1 off 1)
Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;
CE marking
UL File No. E235139
UL CCN DIVQ
CSA File No. 204453
CSA Class No. 1432-01
NA Certification UL Listed, CSA certified
Suitable for Feeder circuits, branch circuits
Current Limiting CB ✓
Max. Voltage Rating ≦ 32 A
1 pole: 277 V AC, 48 V DC
2 pole: 480 Y/277 V AC, 96 V DC
3 pole: 480 Y/277 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
Accessories￫19/40
1 pole
Depth 75 mm
Width 17.7 mm
2 pole
Depth 75 mm
Width 35.4 mm
3 pole
Depth 75 mm
Width 53.1 mm
FAZ-B1.5/3-RT1)
132770
FAZ-B2/3-RT1)
132771
FAZ-B3/3-RT1)
132772
FAZ-B4/3-RT1)
132773
FAZ-B5/3-RT1)
132774
FAZ-B6/3-RT1)
132775
FAZ-B7/3-RT1)
132776
2)
Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;
CE marking
UL File No. E235139
UL CCN DIVQ
CSA File No. 204453
CSA Class No. 1432-01
NA Certification UL Listed, CSA certified
Suitable for Feeder circuits, branch circuits
Current Limiting CB ✓
Max. Voltage Rating > 32 A
1 pole: 240 V AC, 48 V DC
2 pole: 240 V AC, 96 V DC
3 pole: 240 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
FAZ-B8/3-RT1)
132777
FAZ-B10/3-RT1)
132778
FAZ-B13/3-RT1)
132779
FAZ-B15/3-RT1)
132780
FAZ-B16/3-RT1)
132781
FAZ-B20/3-RT1)
132782
FAZ-B25/3-RT1)
132783
FAZ-RT can also be used where FAZ Supplementary Protectors to UL 1077 are
sufficient.
FAZ-B30/3-RT1)
132784
FAZ-B32/3-RT1)
132785
FAZ-B35/3-RT2)
132786
FAZ-B40/3-RT2)
132787
1 3 5
2 4 6
19/35
FAZ-B...RT HPL19035EN
