Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

485 / 543

2010 CA08103002Z-EN

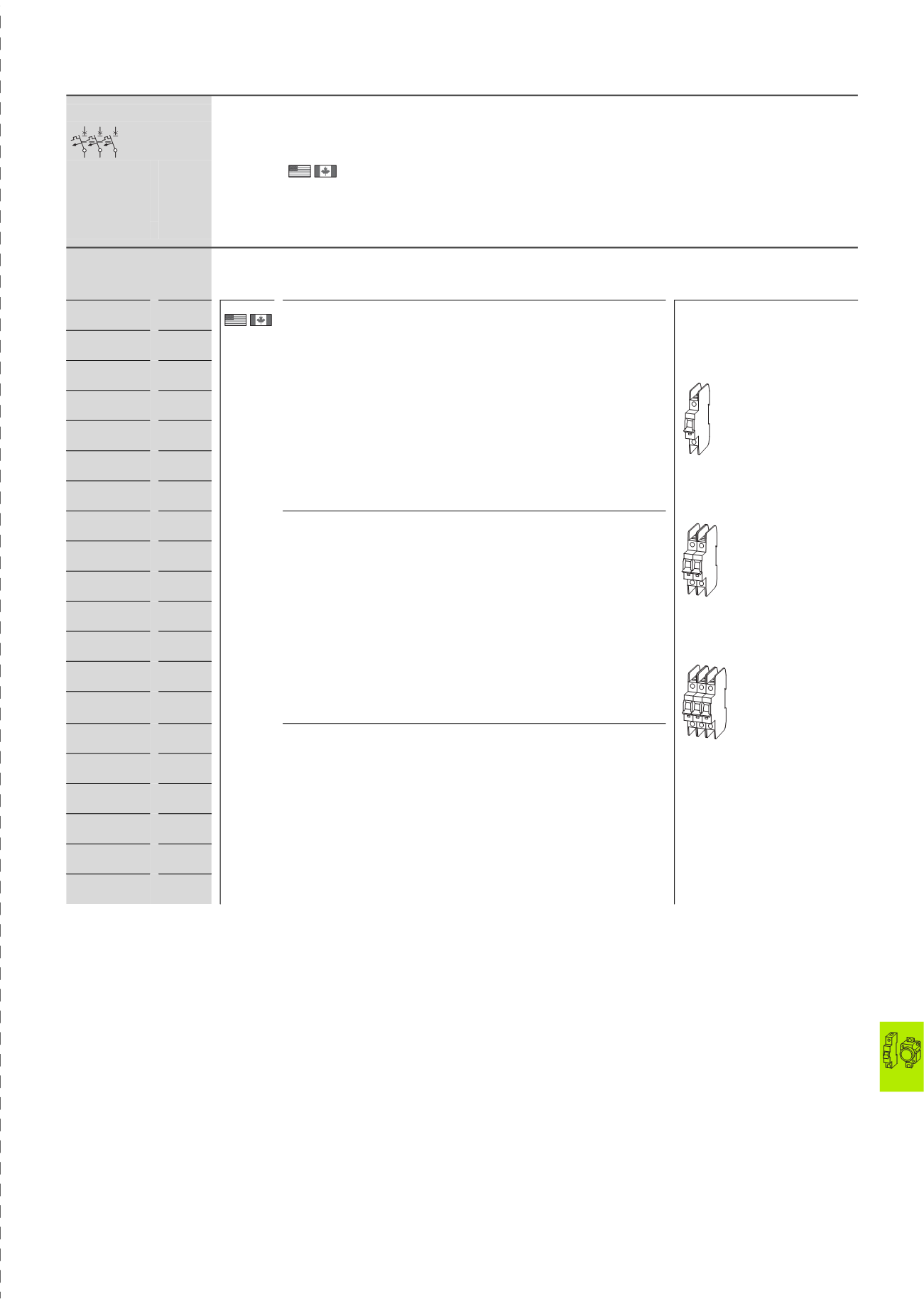

Circuit-breakers, fuses
Miniature circuit-breakers for North America
3 pole
Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to North America Notes
FAZ-C0.5/3-NA1)
102237
1 off 1)
Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;
CE marking
UL File No. E235139
UL CCN DIVQ
CSA File No. 204453
CSA Class No. 1432-01
NA Certification UL Listed, CSA certified
Suitable for Feeder circuits, branch circuits
Current Limiting CB ✓
Max. Voltage Rating ≦ 32 A
1 pole: 277 V AC, 48 V DC
2 pole: 480 Y/277 V AC, 96 V DC
3 pole: 480 Y/277 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
Accessories￫ 19/40
1 pole
Depth 75 mm
Width 17.7 mm
2 pole
Depth 75 mm
Width 35.4 mm
3 pole
Depth 75 mm
Width 53.1 mm
FAZ-C1/3-NA1)
102238
FAZ-C1.5/3-NA1)
102239
FAZ-C2/3-NA1)
102240
FAZ-C3/3-NA1)
102241
FAZ-C4/3-NA1)
102242
FAZ-C5/3-NA1)
102243
FAZ-C6/3-NA1)
102244
2)
Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;
CE marking
UL File No. E235139
UL CCN DIVQ
CSA File No. 204453
CSA Class No. 1432-01
NA Certification UL Listed, CSA certified
Suitable for Feeder circuits, branch circuits
Current Limiting CB ✓
Max. Voltage Rating > 32 A
1 pole: 240 V AC, 48 V DC
2 pole: 240 V AC, 96 V DC
3 pole: 240 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
FAZ-C7/3-NA1)
102245
FAZ-C8/3-NA1)
102246
FAZ-C10/3-NA1)
102247
FAZ-C13/3-NA1)
102248
FAZ-C15/3-NA1)
102249
FAZ-C16/3-NA1)
102250
FAZ-C20/3-NA1)
102251
FAZ-NA can also be used where FAZ Supplementary Protectors to UL 1077 are
sufficient.
FAZ-C25/3-NA1)
102252
FAZ-C30/3-NA1)
102253
FAZ-C32/3-NA1)
102254
FAZ-C35/3-NA2)
102255
FAZ-C40/3-NA2)
102256
1 3 5
2 4 6
19/31
FAZ-C...NA HPL19031EN
