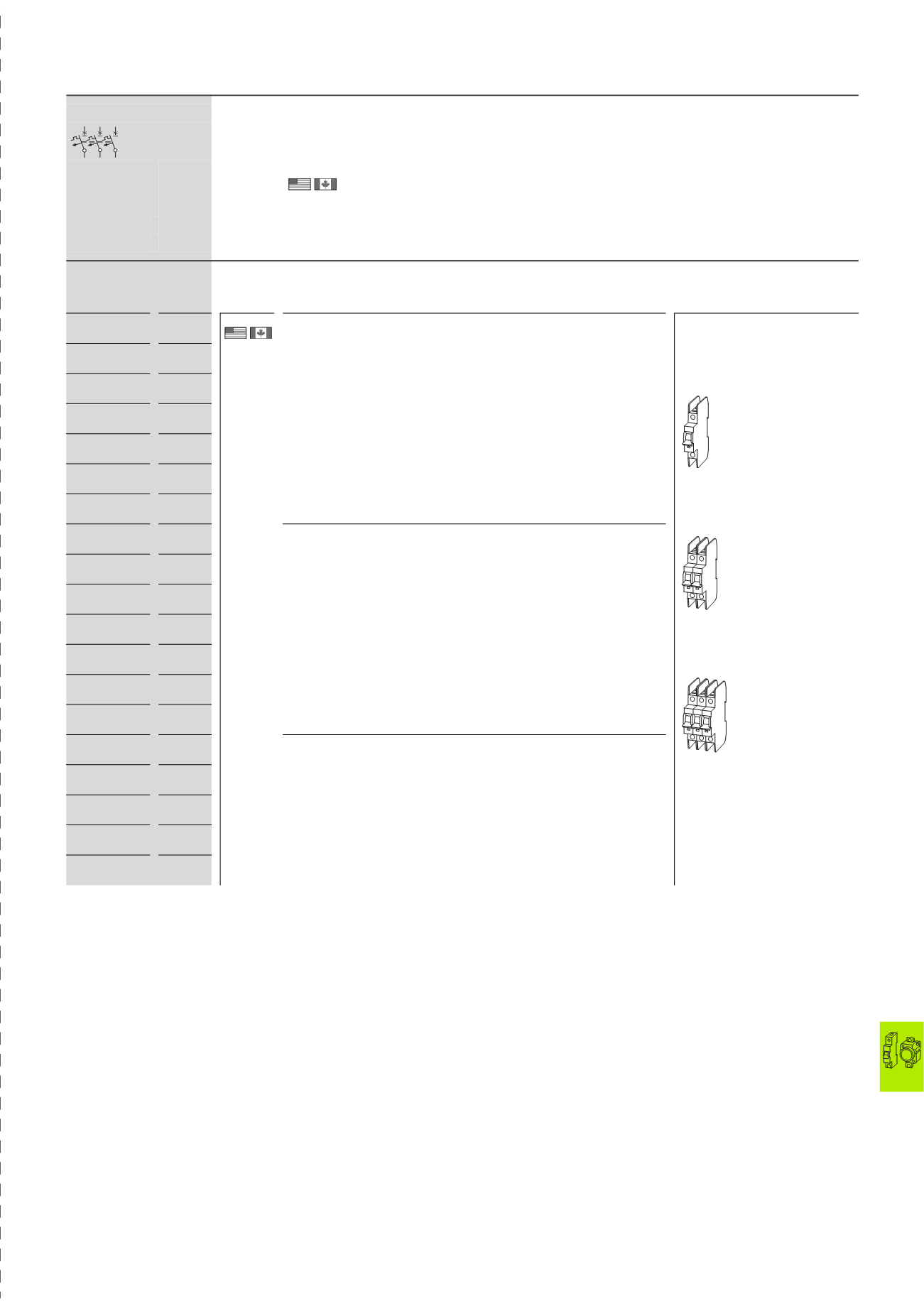

Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

483 / 543

2010 CA08103002Z-EN
Circuit-breakers, fuses
Miniature circuit-breakers for North America
3 pole
Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to North America Notes
FAZ-B1/3-NA1)
132712
1 off 1)
Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;
CE marking
UL File No. E235139
UL CCN DIVQ
CSA File No. 204453
CSA Class No. 1432-01
NA Certification UL Listed, CSA certified
Suitable for Feeder circuits, branch circuits
Current Limiting CB ✓
Max. Voltage Rating ≦ 32 A
1 pole: 277 V AC, 48 V DC
2 pole: 480 Y/277 V AC, 96 V DC
3 pole: 480 Y/277 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
Accessories￫ 19/40
1 pole
Depth 75 mm
Width 17.7 mm
2 pole
Depth 75 mm
Width 35.4 mm
3 pole
Depth 75 mm
Width 53.1 mm
FAZ-B1.5/3-NA1)
132713
FAZ-B2/3-NA1)
132714
FAZ-B3/3-NA1)
132715
FAZ-B4/3-NA1)
132716
FAZ-B5/3-NA1)
132717
FAZ-B6/3-NA1)
132718
FAZ-B7/3-NA1)
132719
2)
Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;
CE marking
UL File No. E235139
UL CCN DIVQ
CSA File No. 204453
CSA Class No. 1432-01
NA Certification UL Listed, CSA certified
Suitable for Feeder circuits, branch circuits
Current Limiting CB ✓
Max. Voltage Rating > 32 A
1 pole: 240 V AC, 48 V DC
2 pole: 240 V AC, 96 V DC
3 pole: 240 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
FAZ-B8/3-NA1)
132720
FAZ-B10/3-NA1)
132721
FAZ-B13/3-NA1)
132722
FAZ-B15/3-NA1)
132723
FAZ-B16/3-NA1)
132724
FAZ-B20/3-NA1)
132725
FAZ-B25/3-NA1)
132726
FAZ-NA can also be used where FAZ Supplementary Protectors to UL 1077 are suf-
ficient.
FAZ-B30/3-NA1)
132727
FAZ-B32/3-NA1)
132728
FAZ-B35/3-NA2)
132729
FAZ-B40/3-NA2)
132730
1 3 5
2 4 6
19/29
FAZ-B...NA HPL19029EN
