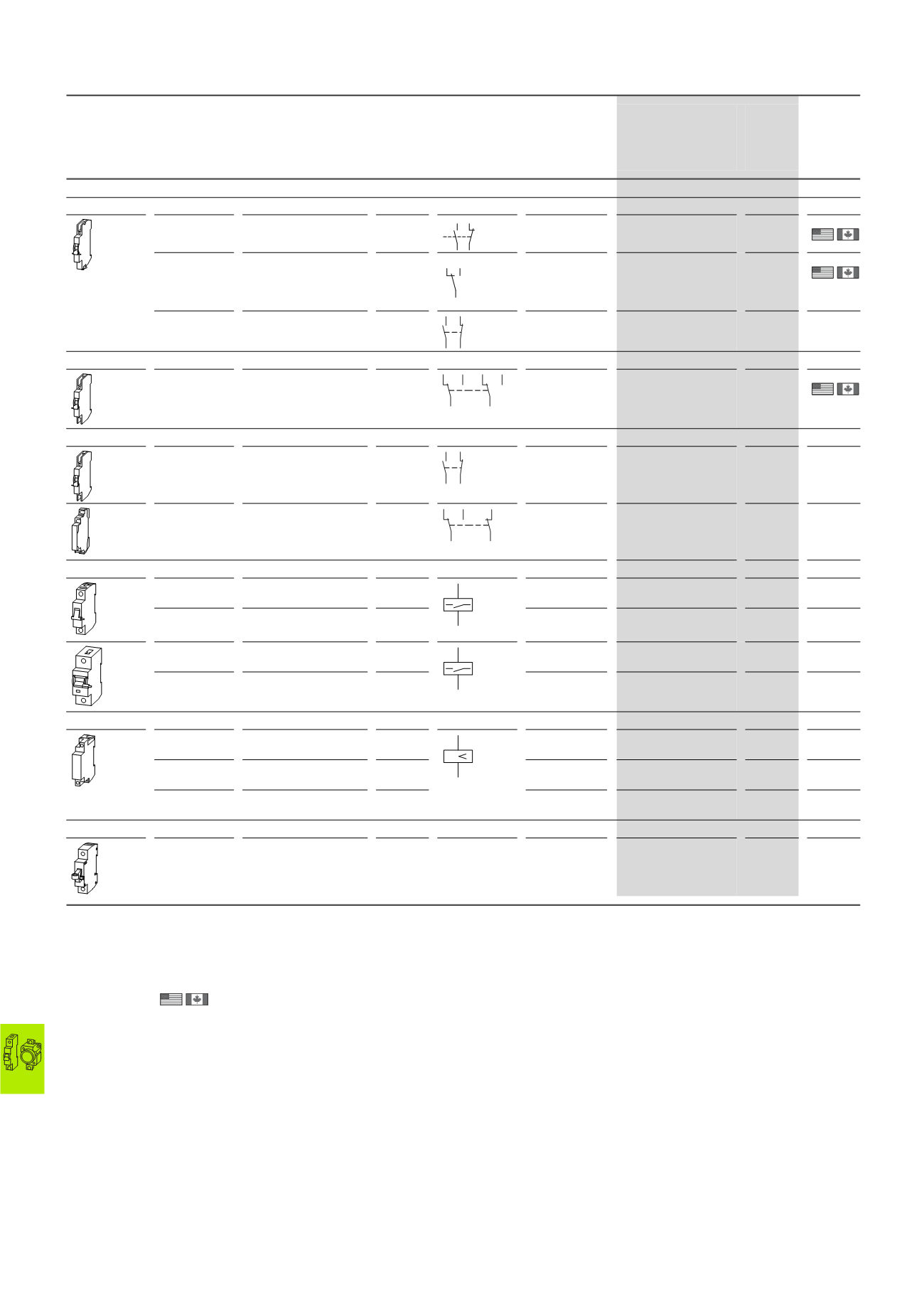

19/24 Circuit-breakers, fuses
Auxiliary contacts, shunt releases, MCB lock
2010 CA08103002Z-EN
www.eaton.comAuxiliarycontacts, shunt releases,MCB lock
For use with
Contacts Contact
sequences
Space units,
1 space unit = 18 mm
Part no.
Article no.
Price
See price
list
Std. pack
Number
Space unit
Auxiliary contacts and shunt releases
Auxiliary contacts for FAZ, AZ, PKNM
FAZ...
PKNM...
to 63 A
1 N/O/
1 NC
0.5
FAZ-XHIN11
3)
286054
10 off
FAZ...
PKNM...
to 63 A
1 C
0.5
FAZ-XHINW1
4)
286055
10 off
AZ...
to 125 A
1 N/O/
1 NC
0.5
AZ-XHI11
212067
8 off
Trip-indicating auxiliary contact/auxiliary contact for FAZ, PKNM
1)
FAZ...
PKNM...
to 63 A
2 C
0.5
FAZ-XAM002
5)
262414
10 off
Auxiliary contacts for FI
FI...
16 - 100 A, except type B 1 N/O/
1 NC
0.5
FIP-XHI11
225121
10 off
FI...
2)
125 A and all type B
1 NC /
1 N/O
0.5
FIPA-XAM011
262578
1 off
Shunt releases for FAZ, PKNM, AZ
FAZ...
PKNM...
to 63 A
–
1
FAZ-XAA-C-12-110VAC
278518
1 off
FAZ...
PKNM...
to 63 A
–
1
FAZ-XAA-C-110-415VAC
278519
1 off
AZ...
to 125 A
–
1.5
AZ-XAA(110-415VAC)
212059
8 off
AZ...
to 125 A
–
1.5
AZ-XAA(12-60VAC)
212061
8 off
Undervoltage releases for FAZ
FAZ...
–
–
1
FAZ-XUA(115VAC)
212049
7 off
FAZ...
–
–
1
FAZ-XUA(230VAC)
212051
7 off
FAZ...
–
–
1
FAZ-XUA(400VAC)
212053
7 off
MCB lock for FAZ/FIP
FAZ...
FIP...
–
–
–
–
IS/SPE-1TE
101911
5 off
Notes
1)
The device is supplied with the groove in the yellow selector button in the horizontal: Changeover contact 4.11 – 4.12/4.14 switches when
tripped manually or electrically. Turning the yellow selector button by 90° results in contact 4.11 – 4.12/4.14 responding only to electrical
tripping: the contact 4.11 – 4.12/4.14 remains closed when tripped by hand.
2)
The device is supplied with the “Auxiliary contacts” function set such that both contacts switch on manual
and
electrical tripping. A change
of function to “Signalling switch” means that both contacts switch
only
under fault conditions.
Information relevant for export to North America
3)
Product Standards
IEC/EN 60947-2; IEC/EN 60898; UL 1077; CSA-C22.2 No. 235; CE marking
UL File No.
E177451
UL CCN
QVNU2, QVNU9
CSA File No.
–
CSA Class No.
3215-30
NA Certification
UL Recognized, certified by UL for use in Canada
Degree of Protection
IEC: IP20; UL/CSA Type: -
4)
Product Standards
IEC/EN 60947-2; IEC/EN 60898; UL 1077; CSA-C22.2 No. 235; CE marking
UL File No.
E177451
UL CCN
QVNU2
NA Certification
UL Recognized, request filed for CSA
Degree of Protection
IEC: IP20; UL/CSA Type: -
5)
Product Standards
IEC/EN 60947-2; IEC/EN 60898; UL 1077; CSA-C22.2 No. 235; CE marking
UL File No.
E177451
UL CCN
QVNU2, QVNU8
CSA File No.
–
CSA Class No.
3215-30
NA Certification
UL Recognized, certified by UL for use in Canada
Degree of Protection
IEC: IP20; UL/CSA Type: -
14 22
21
13
12 14
11
1.13 1.21
1.14 1.22
1.14
4.14
1.12
1.11
4.12
4.11
1.13 1.21
1.14 1.22
1.14
1.12
1.11
1.21
1.22
C2
C1
C2
C1
D2
U
D1
FAZ-X, AZ-X, FIP-X
