Circuit-breakers, fuses
Busbars
2010 CA08103002Z-EN
19/25
Busbars
Phases Devices Part no.
Article no.
Price
See price
list
Std. pack Notes
Number Number

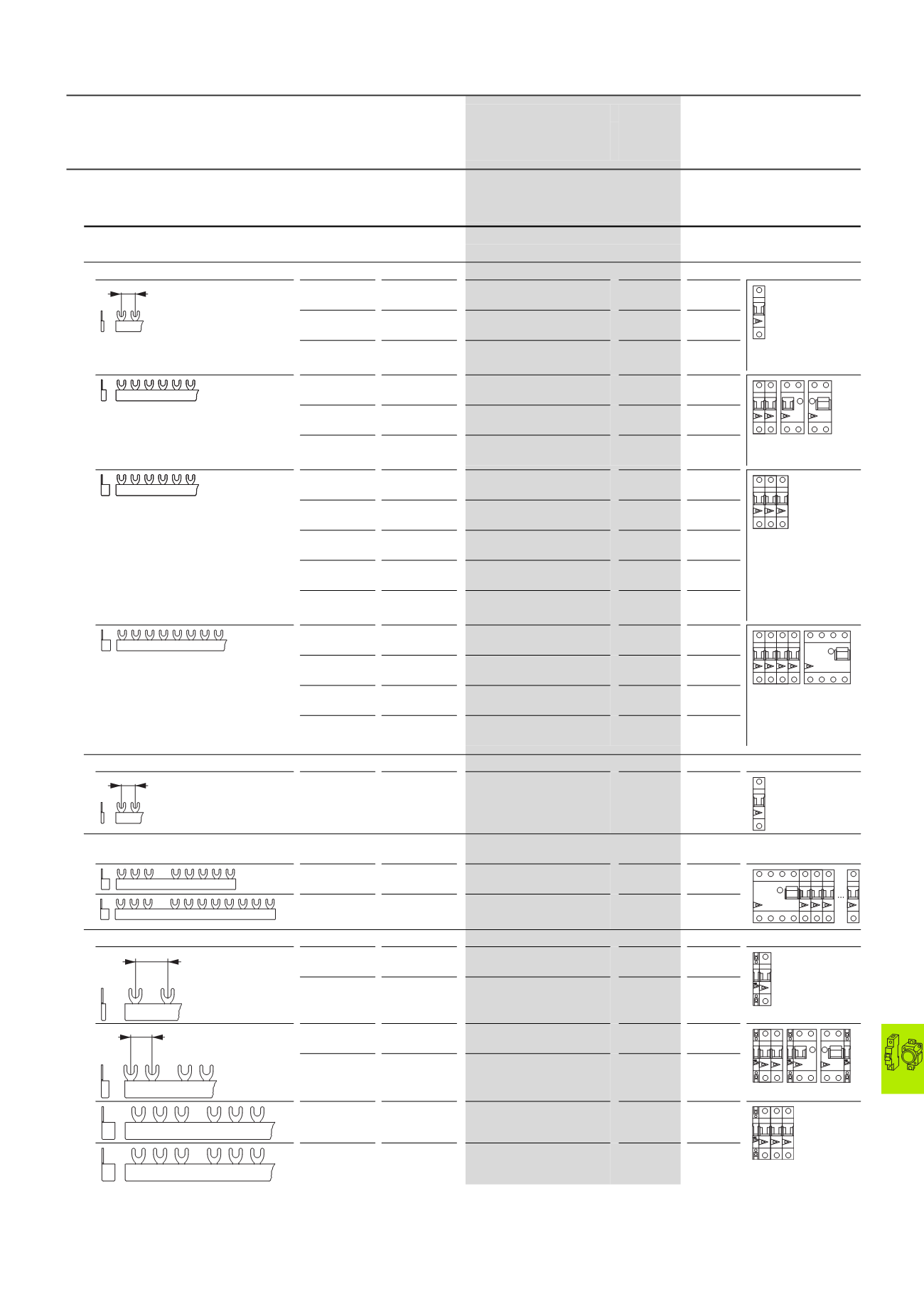

Euro-Vario busbars (fork connector)
• No end caps required
• Do not shorten
10 mm2
• Rated operational current 63 A
For PXL, PXF, PXK, PFIM-U, PFNM
1 2 EVG-1PHAS/2MODUL
215646
40 off
1 6 EVG-1PHAS/6MODUL
215638
40 off
1 12 EVG-1PHAS/12MODUL
215637
40 off
2 4 EVG-2PHAS/4MODUL
268220
20 off
2 6 EVG-2PHAS/6MODUL
215642
20 off
2 12 EVG-2PHAS/12MODUL
215641
20 off
3 6 EVG-3PHAS/6MODUL
215640
20 off
3 9 EVG-3PHAS/9MODUL
215645
20 off
3 12 EVG-3PHAS/12MODUL
215639
20 off
3 16 EVG-3PHAS/16MODUL
285381
20 off
3 20 EVG-3PHAS/20MODUL
285383
10 off
4 8 EVG-4PHAS/8MODUL
215644
10 off
4 12 EVG-4PHAS/12MODUL
215643
10 off
4 16 EVG-3P+3N/16MODUL
105215
20 off
4 18 EVG-3P+3N/18MODUL
274161
20 off
For 2 pole combination RCCB/circuit-breaker with a width of 3 space units
1 2 - 5 EVG-1PHAS/2-5MODUL/FILS
285384
40 off
For combined use of 4 pole residual-current devices with miniature circuit-
breakers
3 4 + 5 EVG-3PHAS/N/5MODUL/LS
215659
20 off
3 4 + 8 EVG-3PHAS/N/8MODUL/LS
215660
20 off
For use with auxiliary contacts
1 2.5 EVG-1PHAS/2MODUL/HI
215655
40 off
1 13 EVG-1PHAS/9MODUL/HI
215656
40 off
2 4.5 EVG-2PHAS/4MODUL/HI
219573
20 off
2 12 EVG-2PHAS/10MODUL/HI
215657
20 off
3 6.5 EVG-3PHAS/6MODUL/HI
216411
20 off
3 13.5 EVG-3PHAS/12MODUL/HI
215658
20 off
L L
17.8
L N L N L N
L1 L2 L3 L1 L2 L3
L1 L2 L3 N L1 L2 L3 N
L L
17.8
L1 L2 L3 L1 L2 L1 L2L3
L1 L2 L3 L1 L2 L3 L1 L2 L3 L1 L2
26.8
L L
L N L N
27
L1 L2 L3 L1 L2 L3
L1 L2 L3 L1 L2 L3
EVG HPL19025EN
