Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

495 / 543

Circuit-breakers, fuses
Accessories for miniature circuit-breaker North America
2010 CA08103002Z-EN
19/41
Accessories forminiaturecircuit-breakerNorthAmerica
Phases Devices Part no.
Article no.
Price
See price
list
Std. pack Notes
Number Number

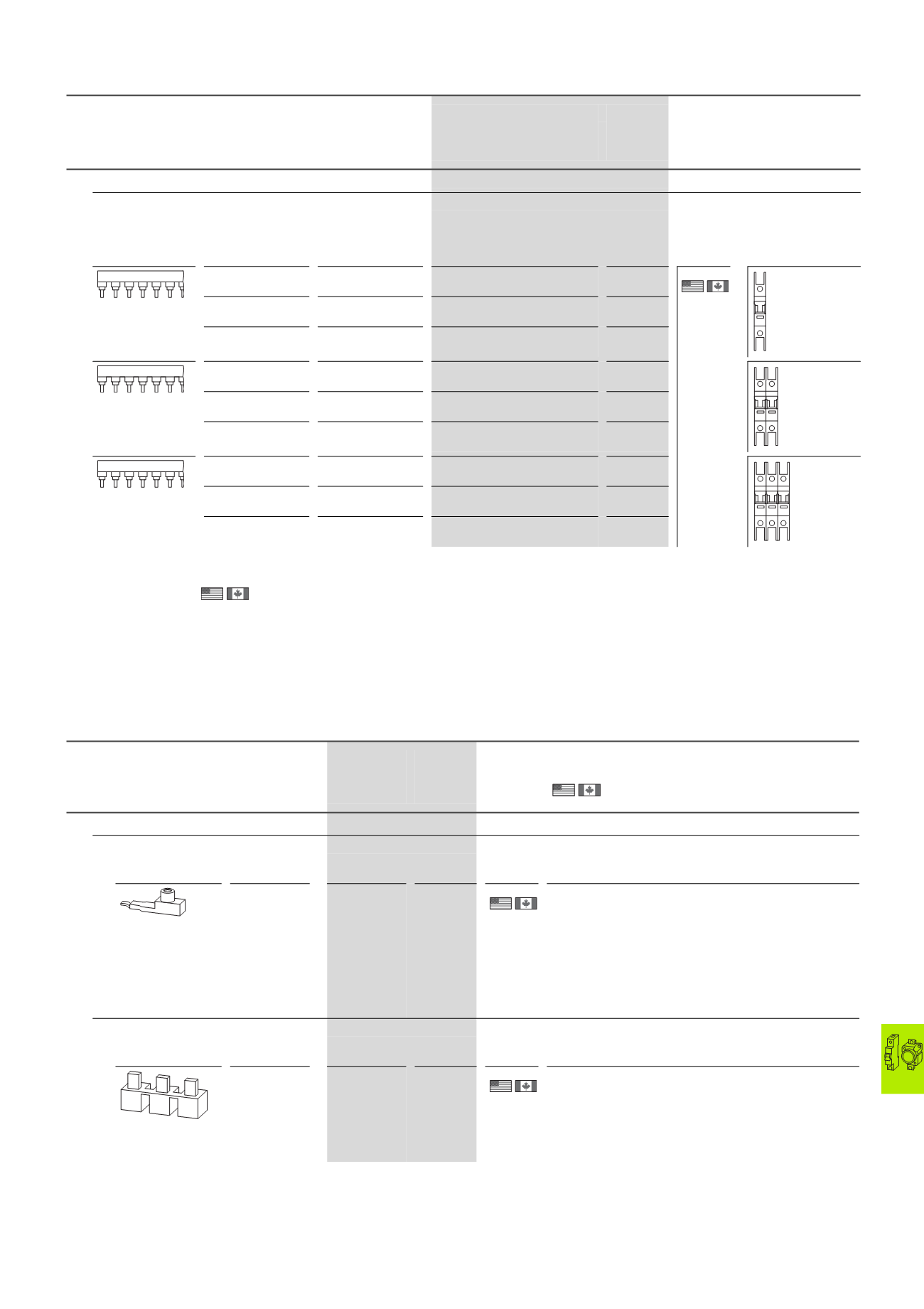

Accessories for FAZ-NA, FAZ-RT
Busbars (pin), UL 489
• 16 mm2
• Rated operational current 80 A
• For FAZ-NA, FAZ-RT
• Do not shorten
1 6 Z-SV/UL-16/1P-1TE/6
104892
10 off
1 12 Z-SV/UL-16/1P-1TE/12
104893
1 18 Z-SV/UL-16/1P-1TE/18
104894
2 6 Z-SV/UL-16/2P-2TE/6
104895
2 12 Z-SV/UL-16/2P-2TE/12
104896
2 18 Z-SV/UL-16/2P-2TE/18
104897
3 6 Z-SV/UL-16/3P-3TE/6
104898
3 12 Z-SV/UL-16/3P-3TE/12
104899
3 18 Z-SV/UL-16/3P-3TE/18
104900
Information relevant for export to North America
Product Standards IEC/EN 60898; UL 489; CE marking
UL File No. E257181
UL CCN NMTR2, DIHS2
CSA File No. –
CSA Class No. –
NA Certification UL Recognized
Suitable for Feeder Circuit, Branch Circuit
Max. Voltage Rating Refer to main components FAZ, FAZ-NA, FAZ-RT
Degree of Protection IEC: IP20, UL/CSA Type: -
For use with Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to North America
Accessories for FAZ-NA, FAZ-RT
Connecting bracket
• 2.5 - 35 mm2, AWG 14-2
• UL 489
FAZ-NA
FAZ-RT
Z-EK/35/UL
104901
3 off Product Standards IEC/EN 60898; UL 489; CE marking
UL File No. E257181
UL CCN NMTR2, DIHS2
CSA File No. –
CSA Class No. –
NA Certification UL Recognized
Suitable for Feeder circuits, branch circuits
Max. Voltage Rating Refer to main components FAZ,
FAZ-NA, FAZ-RT
Degree of Protection IEC: IP20, UL/CSA Type: -
Busbar cover
• for 3 pins
• UL 489
FAZ-NA
FAZ-RT
ZV-BS-UL
104904
10 off Product Standards IEC/EN 60898; UL 489; CE marking
UL File No. E257181
UL CCN NMTR2, DIHS2
CSA File No. –
CSA Class No. –
NA Certification UL Recognized
Degree of Protection IEC: IP20, UL/CSA Type: -
L L LL L L
L1 L1 L2 L2 L2 L1
L1 L3 L2 L1 L3 L2
Z-SV/UL, Z-..., Z-EK, ZV-BS HPL19041EN
