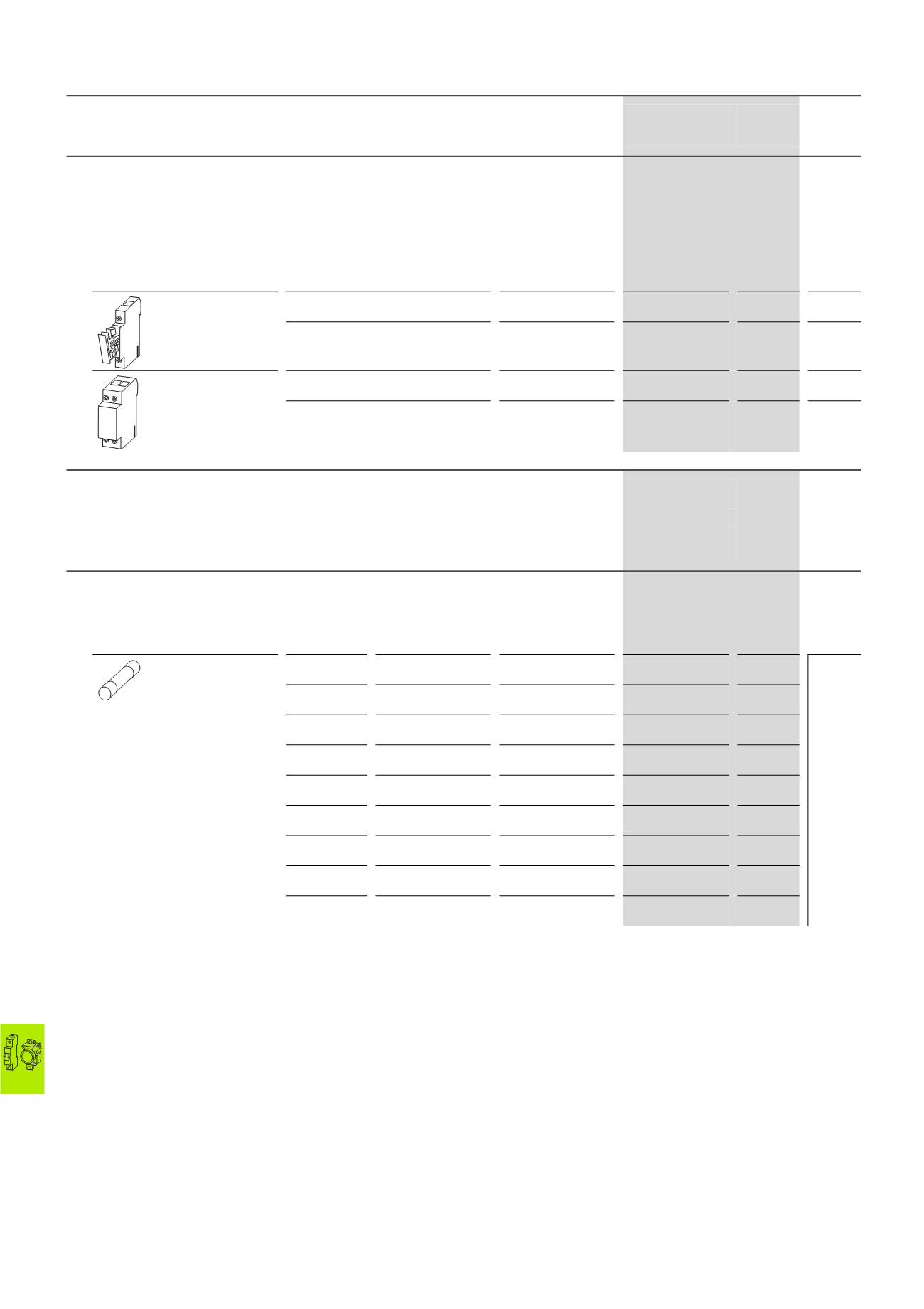

Fuse switch-disconnectors, fuse links for photovoltaic applications
2010 CA08103002Z-EN
Fuse switch-disconnectors, fuse links forphotovoltaicapplications
Pole Part no.
Article no.
Price
See price
list
Std. pack
Fuse switch-disconnectors (empty)
• Line protection of photovoltaic generator
• The trip indication signals that a fuse link has tripped:
– 50 - 400 V flashing
– 400 - 1000 V continuous light
• Rated operational voltage 1000 V DC
• Size 10 x 38, rated operational current 20 A DC
• For cylindrical fuse links for photovoltaic applications
• Sealable
Without flashing function 1 C10-FD/20/1
119024
12 off
Without flashing function 2 C10-FD/20/2
119025
6 off
With flashing function 1 C10-FD/20/1-L
119026
12 off
With flashing function 2 C10-FD/20/2-L
119027
6 off
Size Rated operational
current
Rated operating voltage Part no.
Article no.
Price
See price
list
Std. pack
Ie Ue
A V DC
Cylindrical fuse links Z-C…/SE for photovoltaic applications
• Maximum DC rated operating voltage of fuse link 1.2 × V cc of
line (Vcc … open circuit voltage of line)
• Rated operational current In of Fuse link must be greater than or equal to 1.5 × Isc (Isc …
short circuit current of PV module)
10 x 38 2 1000 Z-C10/SE-2A/PV
131700
10 off
10 x 38 4 1000 Z-C10/SE-4A/PV
131701
10 x 38 6 1000 Z-C10/SE-6A/PV
122009
10 x 38 8 1000 Z-C10/SE-8A/PV
122070
10 x 38 10 1000 Z-C10/SE-10A/PV
122071
10 x 38 12 1000 Z-C10/SE-12A/PV
131702
10 x 38 16 1000 Z-C10/SE-16A/PV
122072
10 x 38 20 1000 Z-C10/SE-20A/PV
122073
10 x 38 25 900 Z-C10/SE-25A/PV
131703
