Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

505 / 543

Circuit-breakers, fuses
LV h.b.c. fuse bases, LV h.b.c. fuse switch-disconnectors
2010 CA08103002Z-EN
19/51
LVh.b.c. fusebases, LVh.b.c. fuse switch-disconnectors
Rated
operating
current
Max. fuse link Part no.
Article no.
Price
See price
list
Std.
pack
Notes
Ie 500 V 690 V Size
A A A

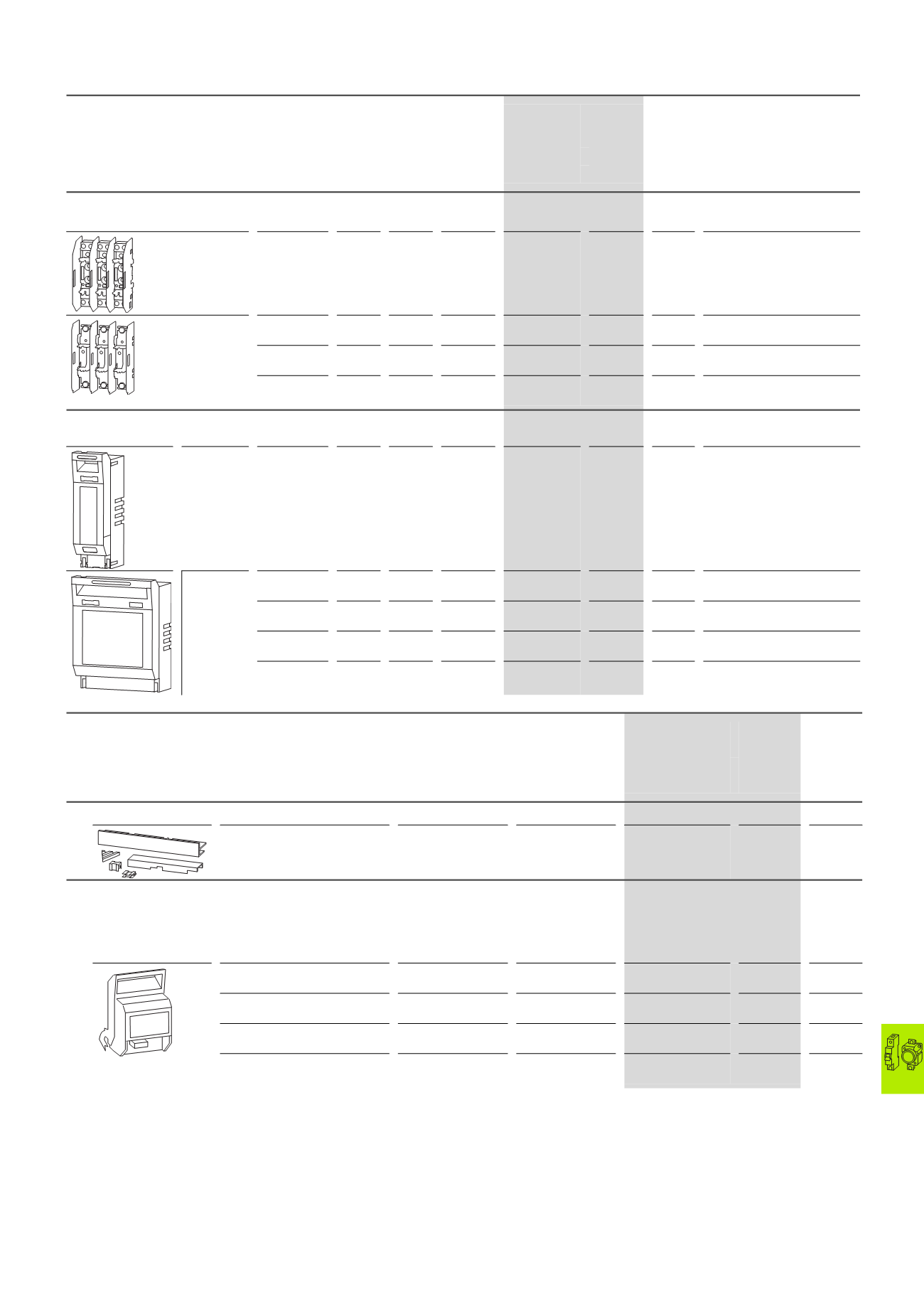

LV h.b.c. fuse bases
3 pole
160 160 100 NH00 GS00-160
026741
1 off –
250 250 200 NH1 GSU1
289016
1 off –
400 400 315 NH2 GSU2
289017
1 off –
630 630 500 NH3 GSU3
289018
1 off –
LV h.b.c. fuse switch-disconnectors
For fitting on mounting plate
1 pole with-
out hand
guard
160 160 100 NH00 GSTA00-160-1P
225000
1 off For fitting to GSTA00-160 for four
pole LV h.b.c. fuse switch-
disconnector,
two devices can be combined to
two pole LV h.b.c. fuse switch-
disconnector
3 pole with-
out hand
guard
160 160 100 NH00 GSTA00-160
095558
1 off –
250 250 200 NH1 GSTA1
017250
1 off –
400 400 315 NH2 GSTA2
021996
1 off –
m 630 630 500 NH3 GSTA3
026742
1 off –
Rated operational voltage Fuse link For use with Part no.
Article no.
Price
See price
list
Std. pack
Ue
V Size
Set of connecting links
– 00 GSTA00-160-1P V-GSTA00-1P
228173
1 off
Cover with fuse monitoring
• One green operation indicator LED, three red error indication LEDs (F1, F2, F3)
• Error message through relay contacts (floating) 1 N/O + 1 NC
AC15: 24 V/4 A, 230 V/3 A
AC13: 24 V/1 A, 220 V/0.5 A, terminal capacity 0.25 – 1.5 mm2
400 - 690 V AC / 50 - 60 Hz 00 GSTA00… GST00-DSI
107956
1 off
400 - 690 V AC / 50 - 60 Hz 1 GSTA1… GST1-DSI
107957
1 off
400 - 690 V AC / 50 - 60 Hz 2 GSTA2… GST2-DSI
107958
1 off
400 - 690 V AC / 50 - 60 Hz 3 GSTA3… GST3-DSI
107959
1 off
GS00, GSU, GST HPL19051EN
