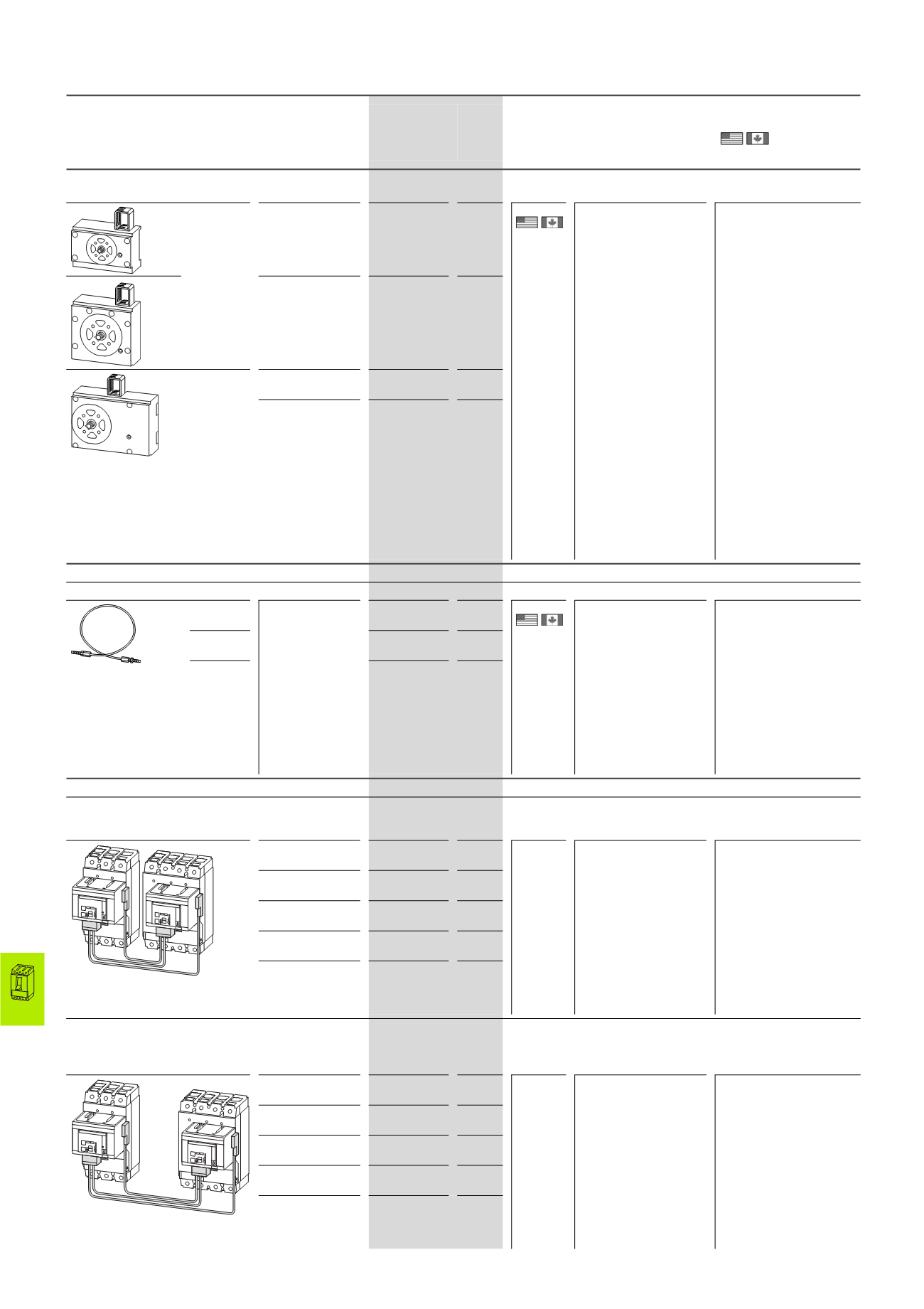

17/130 Circuit-breakers, switch-disconnectors
Mechanical interlock
2010 CA08103002Z-EN
Mechanical interlock
For use with Part no.
Article no. for
separate order
Price
See
price list
Std. pack Notes Information relevant for
export to North America
Mechanical interlock for
(door coupling) rotary handles
NZM1(-4)
PN1(-4), N(S)1(-4)
NZM1-XMV
281581
1 off Allows interlocking of 2, 3
or 4 switches, including
different construction sized
switches, with Bowden
cables.
For every switch an
interlocking module
NZM…-XMV and a rotary
handle on switch
NZM…-XDV or a door
coupling rotary handle
NZM…-XTVD and Bowden
cables are required.
Possible combinations and
interlock variants,
￫Engineering
Cannot be combined with
UL/CSA door coupling
rotary handles
NZM…-XTV…-NA,
paralleling mechanisms,
side wall operators, remote
operators or insulating
surrounds. Selection and
combinations of required
Bowden cables
￫Engineering
Product Standards
UL489;
CSA-C22.2
No. 5-09;
IEC60947,
CE marking
UL File No. E140305
UL CCN DIHS
CSA File No. 022086
CSA Class No. 1437-01
NA Certification UL Listed,
CSA
certified
NZM2(-4)
PN2(-4), N(S)2(-4)
NZM2-XMV
281582
NZM3(-4)
PN3(-4), N(S)3(-4)
NZM3-XMV
281583
NZM4(-4)
N(S)4(-4)
NZM4-XMV
281584
Bowden cables
For mechanical interlock for (door coupling) rotary handles
Length:
225 mm
NZM1(-4), PN1(-4),
N(S)1(-4)
NZM2(-4), PN2(-4),
N(S)2(-4)
NZM3(-4), PN3(-4),
N(S)3(-4)
NZM4(-4), N(S)4(-4)
NZM-XBZ225
281585
1 off Selection and combina-
tions of Bowden cables
￫Engineering
Product Standards
UL489;
CSA-C22.2
No. 5-09;
IEC60947,
CE marking
UL File No. E140305
UL CCN DIHS
CSA File No. 022086
CSA Class No. 1437-01
NA Certification UL Listed,
CSA
certified
Length:
600 mm
NZM-XBZ600
281586
Length:
1000 mm
NZM-XBZ1000
281587
Mechanical interlock for remote operator
For 2 switches of the same or different construction size with
opposed operation.
Adjacent mounting.
NZM2(-4), N(S)2(-4)
+NZM2(-4), N(S)2(-4)
NZM2-XMVR
104543
1 off Contains parts for both
switch sides.
Extension shaft additionally
required.
Maximum switch spacing
￫Engineering
Can not be combined with
rotary handles, door
coupling rotary handles,
early-make auxiliary
contacts, and direct-
switching remote operator
NZM2-XRD.
–
NZM2(-4), N(S)2(-4)
+NZM3(-4), N(S)3(-4)
NZM2/3-XMVR
104544
NZM3(-4), N(S)3(-4)
+NZM3(-4), N(S)3(-4)
NZM3-XMVR
104545
NZM3(-4), N(S)3(-4)
+NZM4(-4), N(S)4(-4)
NZM3/4-XMVR
104546
NZM4(-4), N(S)4(-4)
+NZM4(-4), N(S)4(-4)
NZM4-XMVR
104547
For 2 switches of the same or different construction size with
opposed operation.
Extra long Bowden cable for mounting one above the other or
in adjacent enclosures.
NZM2(-4), N(S)2(-4)
+NZM2(-4), N(S)2(-4)
NZM2-XMVRL
104548
1 off Contains parts for both
switch sides.
Extension shaft additionally
required.
Maximum switch spacing
￫Engineering
Can not be combined with
rotary handles, door
coupling rotary handles,
early-make auxiliary
contacts, and direct-
switching remote operator
NZM2-XRD.
–
NZM2(-4), N(S)2(-4)
+NZM3(-4), N(S)3(-4)
NZM2/3-XMVRL
104549
NZM3(-4), N(S)3(-4)
+NZM3(-4), N(S)3(-4)
NZM3-XMVRL
104550
NZM3(-4), N(S)3(-4)
+NZM4(-4), N(S)4(-4)
NZM3/4-XMVRL
104551
NZM4(-4), N(S)4(-4)
+NZM4(-4), N(S)4(-4)
NZM4-XMVRL
104552
NZM...XMV(R)(L), NZM-XBZ... HPL17130EN
