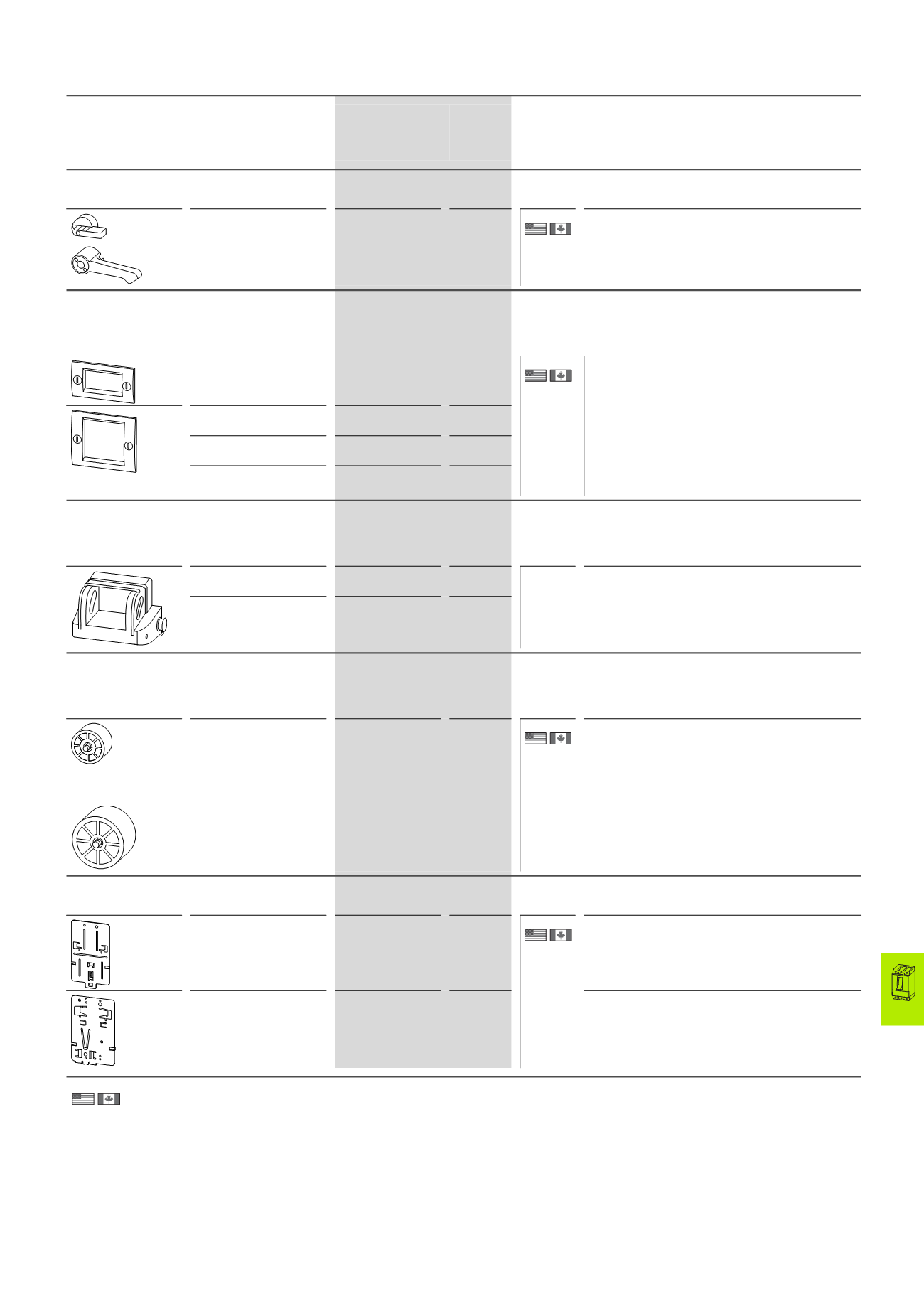

Circuit-breakers, switch-disconnectors
Accessories
2010 CA08103002Z-EN
17/129
Accessories
For use with Part no.
Article no. when
ordered separately
Price
See price
list
Std. pack Notes
Additional handle
Enables switching when control panel door is open
NZM1(-4), PN1(-4), N(S)1(-4)
NZM2(-4), PN2(-4), N(S)2(-4)
NZM1/2-XDZ
266621
1 off Push-fits on to the extension shaft.
100 mm free extension shaft required.
Cannot be combined with door coupling rotary handles
NZM...-XT...-60 or NZM...-XT...0. NZM3(-4), PN3(-4), N(S)3(-4)
NZM4(-4), N(S)4(-4)
NZM3/4-XDZ
266622
Insulating surround
For toggle levers, rotary handles with rotary drive and
remote operators
Degree of protection IP40
NZM1(-4)
PN1(-4), N(S)1(-4)
NZM1-XBR
260195
1 off For rectangular cut-out on doors and enclosures with
material thicknesses of 1.5 – 5 mm.
External warning plate/designation label can be clipped on.
NZM4-XBR can not be combined with rotary handle with
rotary mechanism. NZM2(-4)
PN2(-4), N(S)2(-4)
NZM2-XBR
260197
NZM3(-4)
PN3(-4), N(S)3(-4)
NZM3-XBR
284645
NZM4(-4)
N(S)4(-4)
NZM4-XBR
284646
Toggle lever locking device
Lockable in Off position with up to three padlocks
(hasp thickness 4 – 8 mm)
NZM1(-4)
PN1(-4), N(S)1(-4)
NZM1-XKAV
260199
1 off Cannot be combined with insulating surround.
NZM2(-4), PN2(-4), N(S)2(-4)
NZM3(-4), PN3(-4), N(S)3(-4)
NZM2/3-XKAV
260201
Spacers
Enables fast and attractively priced offsetting of varying
construction sizes with/without rotary handle or remote
operator to the same front depth
NZM1(-4), PN1(-4), N(S)1(-4)
NZM2(-4), PN2(-4), N(S)2(-4)
NZM1/2-XAB
260203
1 set Grid depth 17.5 mm, M4 thread
One set contains 4 spacers
Maximum component fitting:
NZM1: 4 off per fixing screw,
NZM2: 2 off per fixing screw,
2 (NZM1) or 4 (NZM2) fixing screws contained per switch
NZM3(-4)
PN3(-4), N(S)3(-4)
NZM4(-4)
N(S)4(-4)
NZM3-XAB
260211
Grid depth 17.5 mm, M5 thread
One set contains 4 spacers
NZM3, NZM4: 1 off per fixing screw
4 fixing screws per switch included
Clips
Allows switches to be clipped onto DIN rails
NZM1(-4)
PN1(-4)
N(S)1(-4)
NZM1-XC35
260213
1 off For 35 mm top-hat rails
NZM2(-4)
PN2(-4)
N(S)2(-4)
NZM2-XC75
260215
For 75 mm top-hat rails
Not in combination with remote operator.
Information relevant for export to North America Product Standards UL489; CSA-C22.2 No. 5-09; IEC60947, CE marking
UL File No. E140305
UL CCN DIHS
CSA File No. 022086
CSA Class No. 1437-01
NA Certification UL Listed, CSA certified
NZM...-XDZ, NZM...-XBR, NZM...-X... HPL17129EN
